SERIES 21-210i MODEL A Maintenance manual Page 42

Maintenance manual

Page of 423

/ 423

B−63085EN/02

1. DISPLAY AND OPERATION

After the system has been installed correctly, you can find the PCBs

installed and the softwares integrated on the system configuration screen.

(1)Press

SYSTEM

key.

(2)Press soft key [system],then the system configuration screen is

displayed.

(3)The system configuration screen is composed of three screens and

each of them can be selected by the page key

PAGE

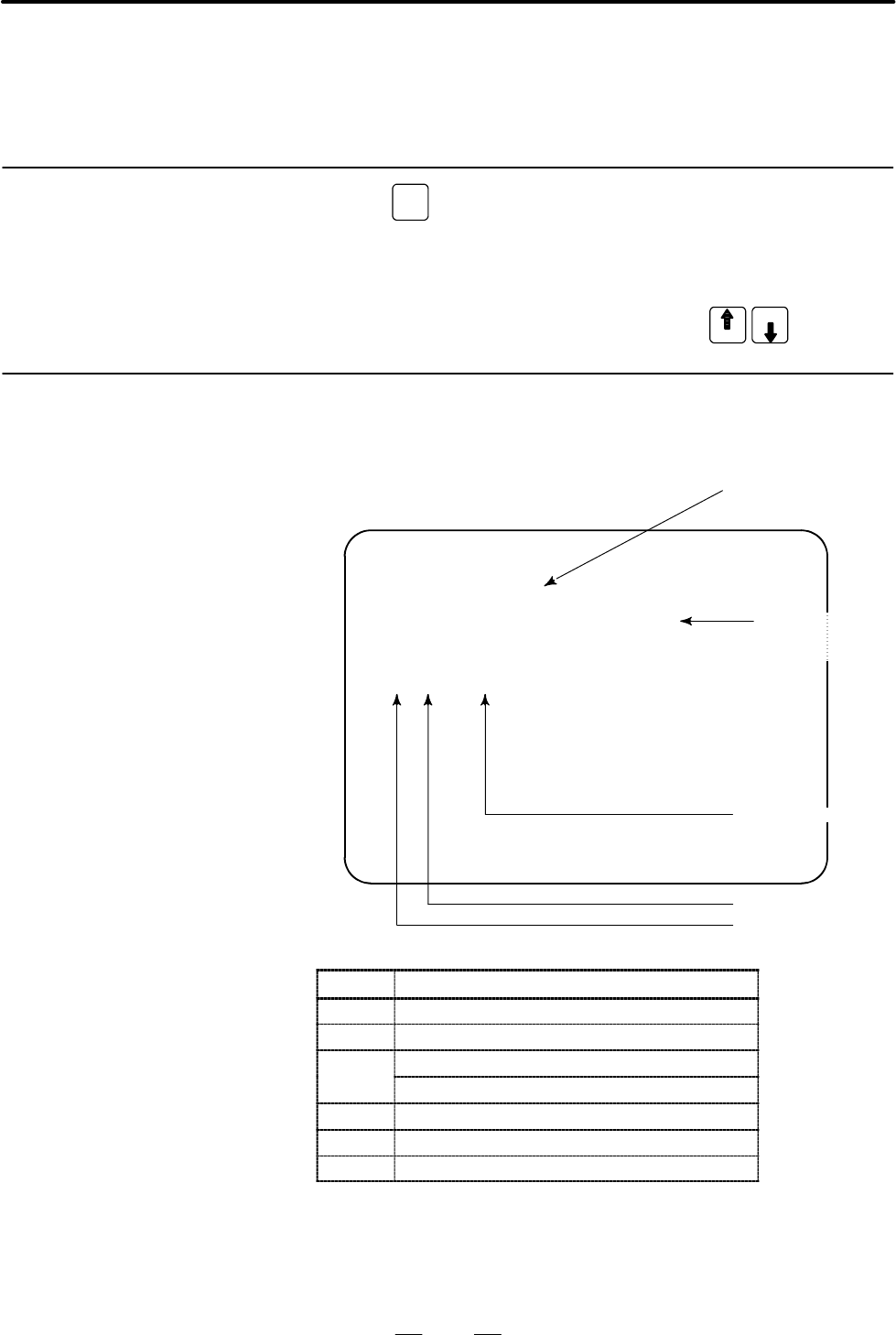

SYSTEM CONFIG (SLOT) PAGE01

SLOT MODULE ID SERIES VERSION

00 0090 : 40 DDF1 0006

0D 009A : 45 600M 0003

02 013F : 4A B403 0001

03 019D : 41 406A 0001

Software series of mod-

ule with CPU

Module ID

Slot No.

(80~8F is 2nd side)

Software version

of module with

CPU

Software ID (type)

ID Name

D7 Series 21i motherboard

DC Series 210i motherboard

CD Serial communication board: remote buffer/DNC2

Serial communication board: DNC1

D3 Loader control board

AA HSSB interface board

C9 PC function card

40 : Main CPU

4A : Remote buffer

53 : Loader control

5E : HSSB interface (with PC)

1.3

SYSTEM

CONFIGURATION

SCREEN

1.3.1

Display Method

1.3.2

Configuration of PCBs

D Screen

D Module ID

D Software ID
