Basic SPINDLE Tuning using SERVO GUIDE
4.2. Tuning motor voltage
It is important to tune motor parameters related to motor voltage control to enhance accuracy.
Please set the following parameters according to following guideline.
(1) In case maximum motor speed on rigid tapping is lower than base speed of spindle motor*
Parameter No
16i/18i/21i/0i
Description
Standard
setting
Recommend
setting
4016#4 Setting for motor voltage control 0 0
4085
Motor voltage setting on servo mode
(For high-speed characteristics)
30 100
4137
Motor voltage setting on servo mode
(For low-speed characteristics)
30 100
4099 Delay time for motor excitation 0 300
* Base speed of spindle motor:
High-speed characteristics: Setting value of parameter No.4100
Low-speed characteristics: Setting value of parameter No.4138
(2) In case maximum motor speed on rigid tapping is higher than base speed of spindle motor
Parameter No
16i/18i/21i/0i
Description
Standard
setting
Recommend
setting
4016#4 Setting for motor voltage control 0 1
4085
Motor voltage setting on servo mode
(For high-speed characteristics)
30 *1
4137
Motor voltage setting on servo mode
(For low-speed characteristics)
30 *2
4099 Delay time for motor excitation 0 300
*1. Set the value according to following equation.
No.4085 = 100*(Setting value of No.4100)/(Maximum motor speed on rigid tapping)
*2. Set the value according to following equation.
No.4137 = 100*(Setting value of No.4138)/(Maximum motor speed on rigid tapping)

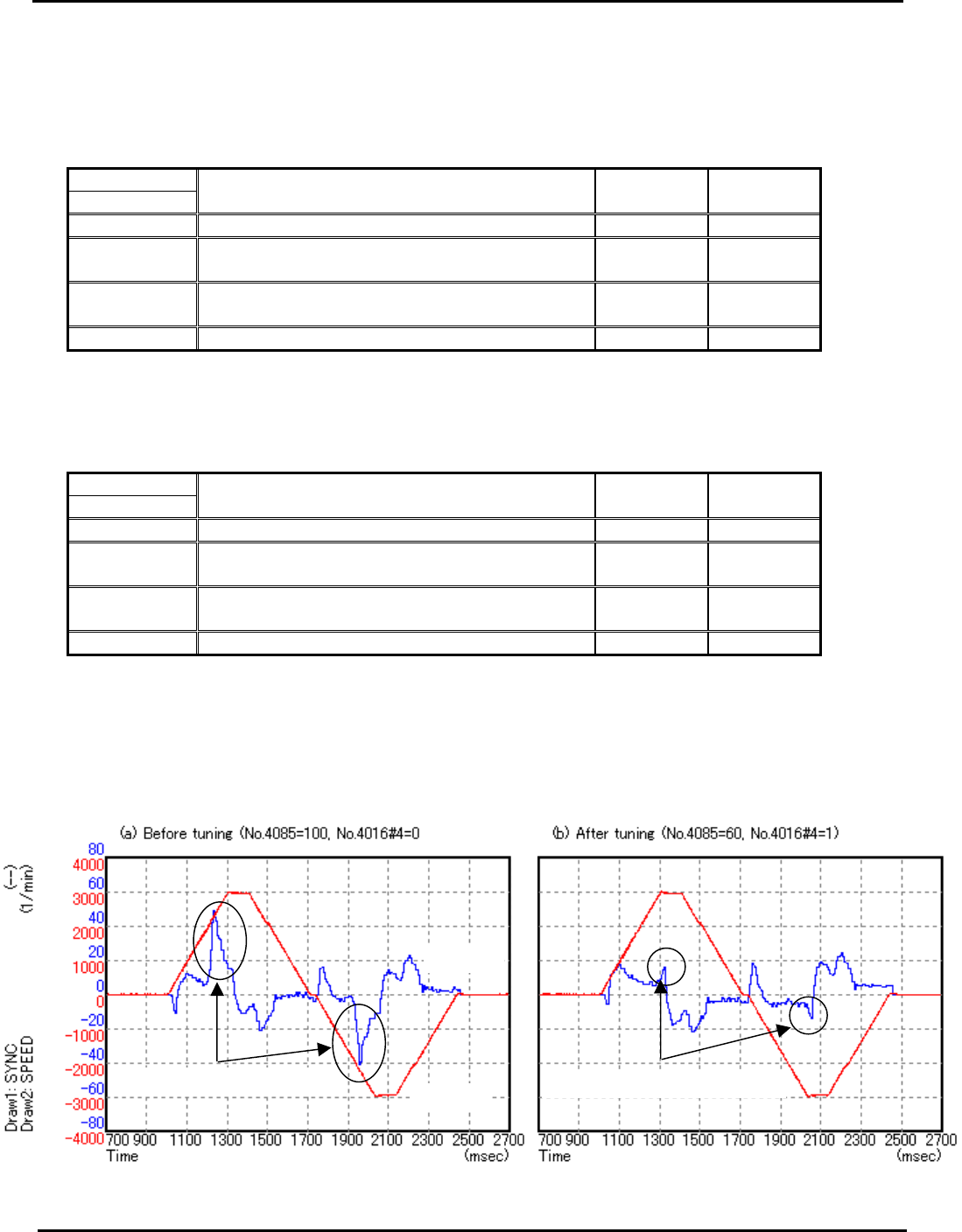

[Example of motor voltage tuning]
Spindle motor
α8/8000i is used only (No.4100=1600)
SYNC
SPEED
SYNC increases drasticall
y
Increase of SYNC is im
p
roved
A-53866E-456/05 (24/34)
