Basic Spindle Tuning Using Servo Guide Additional Manual Page 27

Additional Manual
Basic SPINDLE Tuning using SERVO GUIDE
4.5. Spindle Fine Acceleration/Deceleration (FAD) function
Fine Acceleration/Deceleration (FAD) function with feed-forward is very effective to enhance accuracy
and to reduce cycle time of rigid tapping.
When you use FAD function for servo axis, you can use spindle FAD function at rigid tapping.
(1) Parameters
Please set the parameters according to the following table
Parameter No
16i/18i/21i, 0i
Description Setting
5205#7 Setting of FAD function during rigid tapping 1
4394#3 Spindle FAD function 1
4394#4 Acc./Dec. type during spindle FAD Same setting for the servo axis (2209#2)
4344 Feed-forward coefficient Same setting for the servo axis (2092)
4037 Velocity loop feed-forward coefficient 0
4408 FAD time constant Same setting for the servo axis (2109)
4409 Feed-forward timing adjustment coefficient -500 (recommended setting)

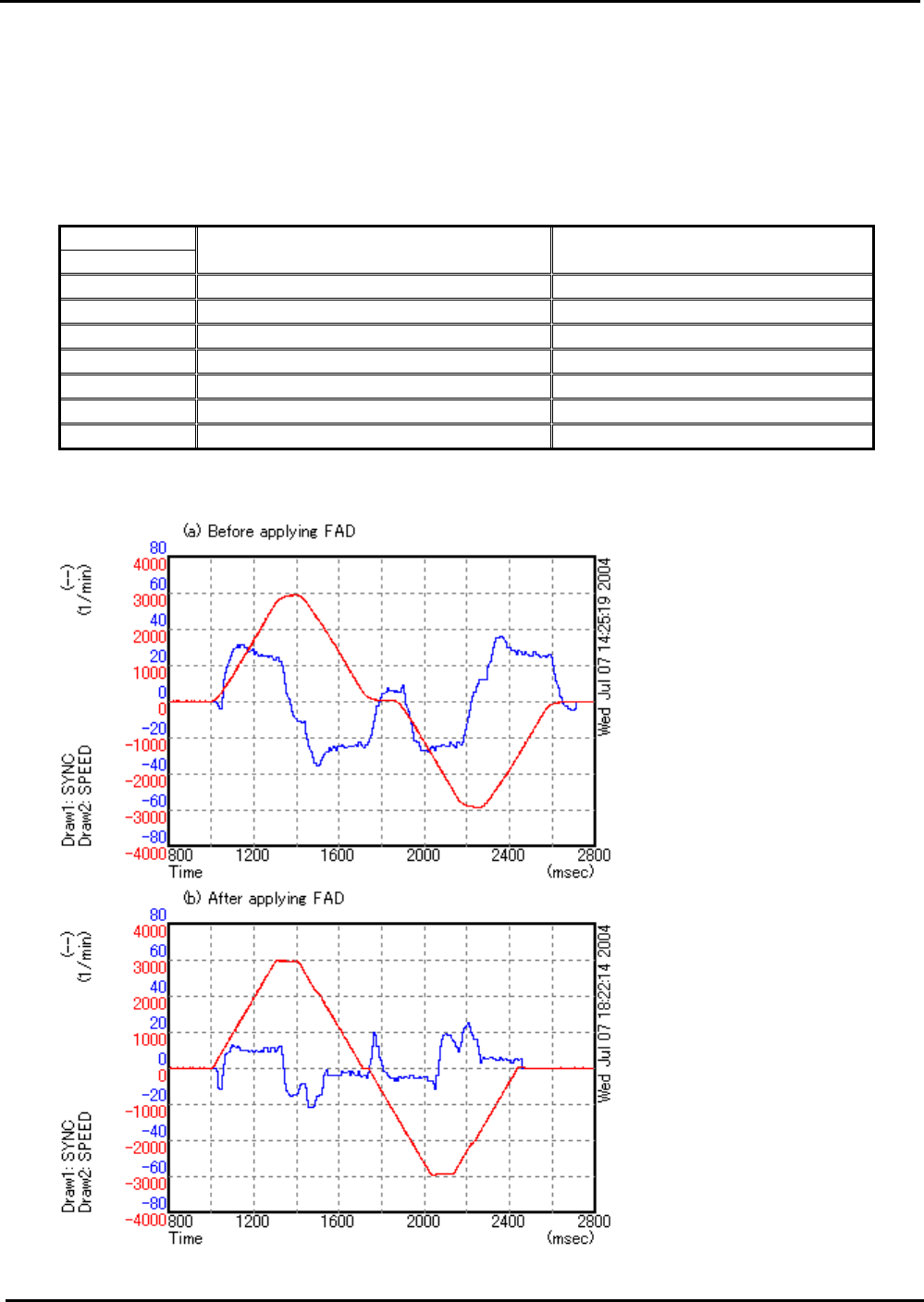

(2) Example of applying spindle FAD function
Cycle time:
1700 ms
Synchronous error:
70 pulses
Cycle time:
1500 ms
Synchronous error:
45 pulses
A-53866E-456/05 (27/34)
