Basic SPINDLE Tuning using SERVO GUIDE
5.5. Tuning reference return.
When you set higher value for maximum spindle speed (No.4021) or position gain (No.4069 to
No.4072), overshoot may occur at reference return.
In such case, set the parameters related to reference return according to following guideline.
[Guideline of setting parameters related to reference return]
Parameter No
16i/18i/21i/0i
Description
Standard
setting
Recommend
setting
4074
Reference return speed on Cs contouring mode/ servo
mode. (min
-1
)
0 100 to 200
4092
The reduction rate of position loop gain at reference
return of Cs contouring mode. (%)
0 *1)
*1) Set the value according to following way.
(No.4092) < 100*3000/[Maximum position gain setting (No.4069-No.4072)]
[Example of tuning]
(Before tuning)
No.4020=1200
No.4069=3000
No.4074=0
No.4092=0
(After tuning)
No.4020=1200
No.4069=3000
No.4074=200
No.4092=0

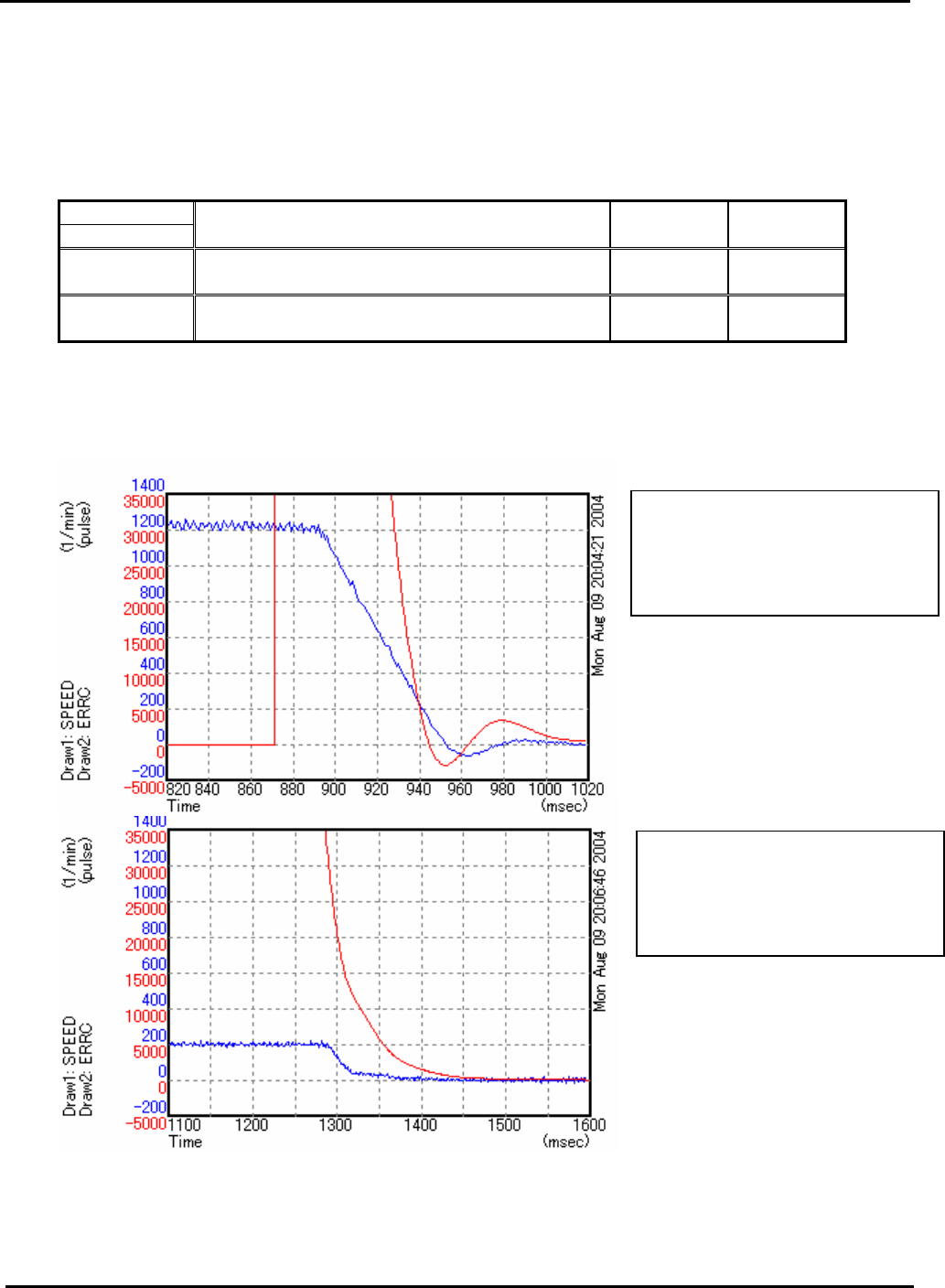

SPEED
ERRC
A-53866E-456/05 (32/34)
