  2. FANUC Series 16i/160i-LB,LPB Pulse Power Feedback Function

FANUC Series 16i/160i-LB,LPB Pulse Power Feedback Function Additional Manual Page 8

Additional Manual
EDIT
DATE DESIGN
DESCRIPTION
TITLE
Pulse Power Feedback Function
A-81053-080
Page
７/16
01 04.09.14 M.Andou New registration
FANUC LTD
DR
A
W
No.
02 05.11.08 M.Andou Change of approx. power monitor
（A gray area where stability is confirmed is recommended. ）
Value in table：Feedback target value of pulse instruction (Unit:W)

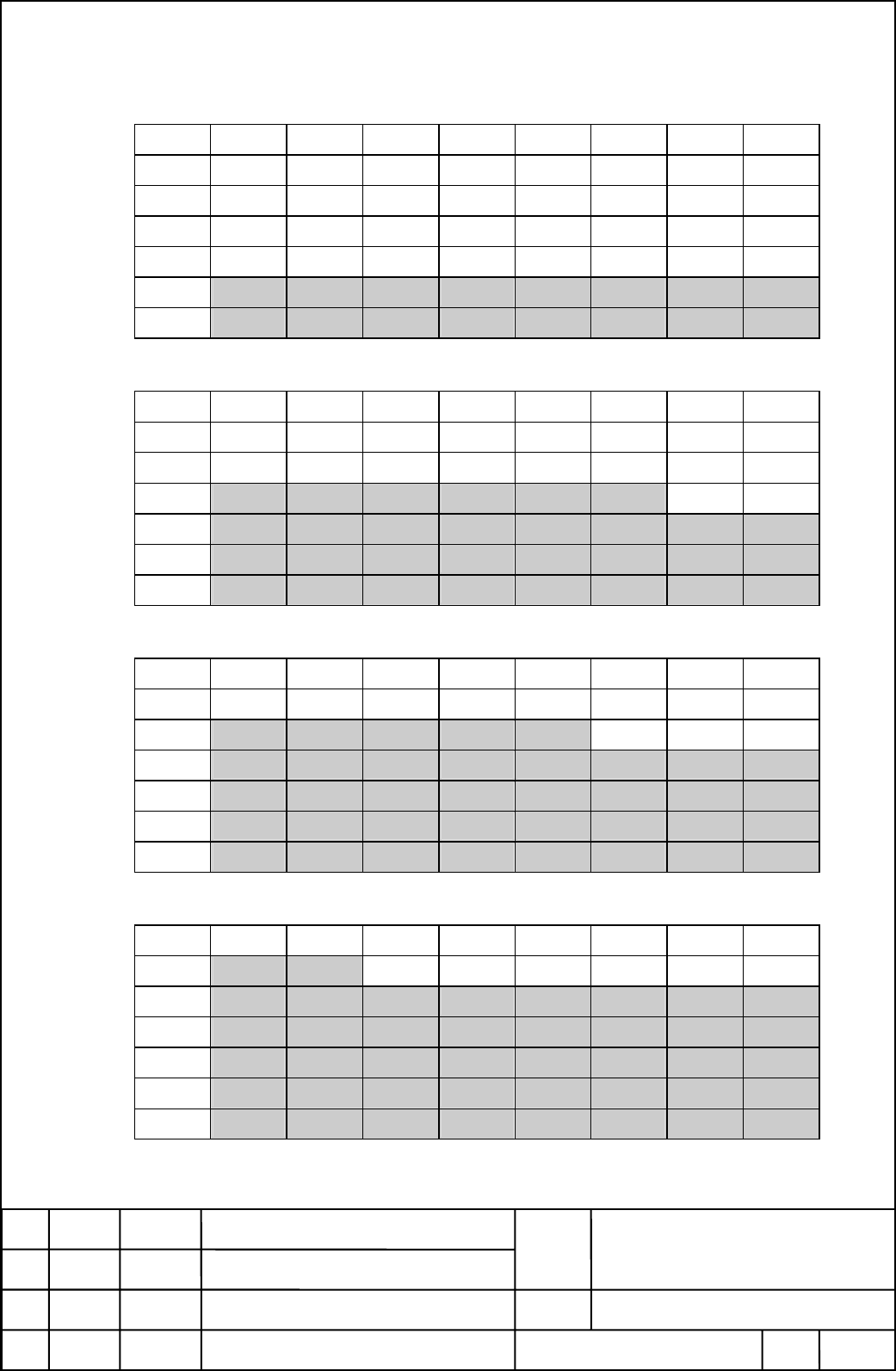

Table 3-1. Pc=500W table for pulse feedback (Unit:W)
10Hz 50Hz 150Hz 250Hz 500Hz 700Hz 1kHz 2kHz
10%
54 49 31 12 0 0 0 0
25%
131 130 114 111 53 22 0 0
35%
185 185 167 164 119 89 49 0
50%
265 266 247 236 219 190 144 115
70%
371 373 354 339 309 321 301 282
90%
485 474 453 449 445 447 445 433
Table 3-2. Pc=750W table for pulse feedback (Unit:W)
10Hz 50Hz 150Hz 250Hz 500Hz 700Hz 1kHz 2kHz
10%
77 73 64 37 0 0 0 0
25%
193 192 178 186 128 85 48 0
35%
270 270 255 256 226 189 136 84
50%
386 387 369 360 364 341 301 271
70%
540 541 524 511 489 522 501 485
90%
700 688 668 672 672 674 672 663
Table 3-3. Pc=1000W table for pulse feedback (Unit:W)
10Hz 50Hz 150Hz 250Hz 500Hz 700Hz 1kHz 2kHz
10%
102 101 99 72 18 0 0 0
25%
254 256 249 266 217 168 118 56
35%
356 357 348 360 347 296 263 210
50%
510 512 498 496 524 507 469 444
70%
714 716 702 694 713 727 707 691
90%
922 912 902 908 912 908 907 900
Table 3-4. Pc=1250W table for pulse feedback (Unit:W)
10Hz 50Hz 150Hz 250Hz 500Hz 700Hz 1kHz 2kHz
10%
128 127 131 108 47 14 0 0
25%
318 321 320 339 301 245 215 152
35%
449 449 445 461 457 420 397 348
50%
640 641 632 631 696 668 642 616
70%
897 897 890 889 951 935 919 894
90%
1154 1147 1146 1153 1156 1146 1148 1136
