FS 16i/18i/21i - TB / MB Additional Manual Page 6

Additional Manual
02 Sep.30.’03 Modification at (2)
Edit Date Design Description
Date Apr.14.2003 Desig. T.Watanabe Apprv. T.Endo
Sheet
Title
Draw
No.
6
/
14
FANUC Series16i/18i/21i
Cs-axis Coordinate Establishment
Function
A
-78845EN
Sheet

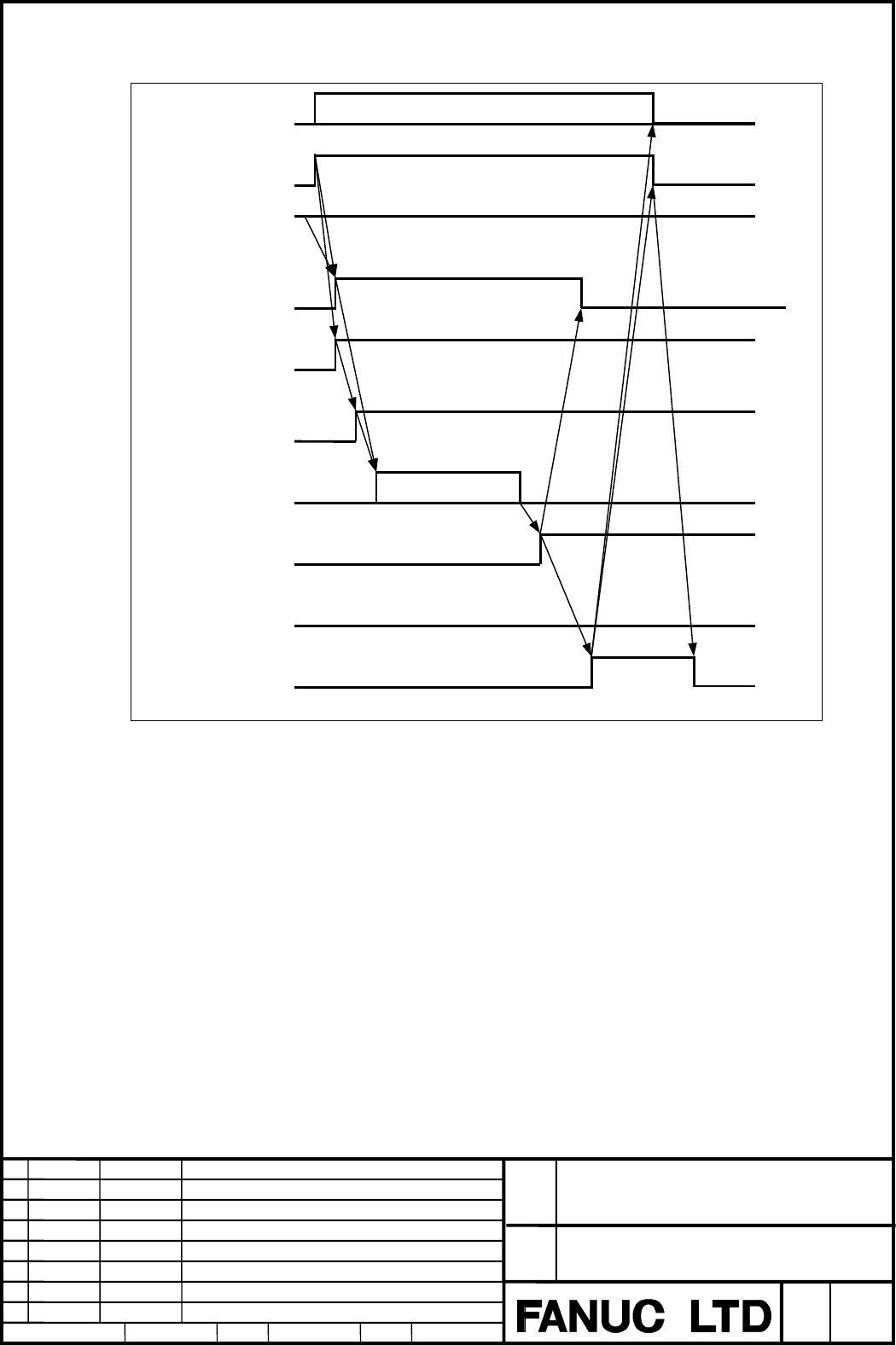

Example) Under composite control of Cs axis in two-path system
(1) Excute M code on path-1. Then, MF signal <F0007#0> is set to 1.
(2) Check that Cs axis zero point establishment state signal on path-2
CSPENA <F1048#4> is 1. And, Set both Cs axis coordinate establishment
request signal on path-2 CSFI1<G1274#4> and spindle contour control
change signal on path-2 CON<G1027#7> to 1.
(3) Absolute coordinate on path-1, relative coordinate on path-1, and machine
coordinate on path-2 are counted up.
(4) After complete of count up, reference point establishment signal on path-2
ZRFx<F0120> is set to 1. So, set Cs axis coordinate establishment request
signal on path-2 CSFI1<G1274#4> to 0.
(5) Excute FIN sequence for M code on path-1.
CSFOx<F1274#4
∼
#7>
Count up coordinate
M code for Cs contor
control <F010
∼
013>
FIN<G0004#3>
MF<F0007#0>
M code
CSFIx<G1274#4
∼
#7>
CSPENA<F1048#4>
ZRFx<F1120>
FSCSL<F1044#1>
CON<G1027#7>
