Panel i Connection And Maintenance Manual Page 140

Connection And Maintenance Manual
6.MAINTENANCE SUPPLIES MAINTENANCE B-64223EN/01
- 128 -

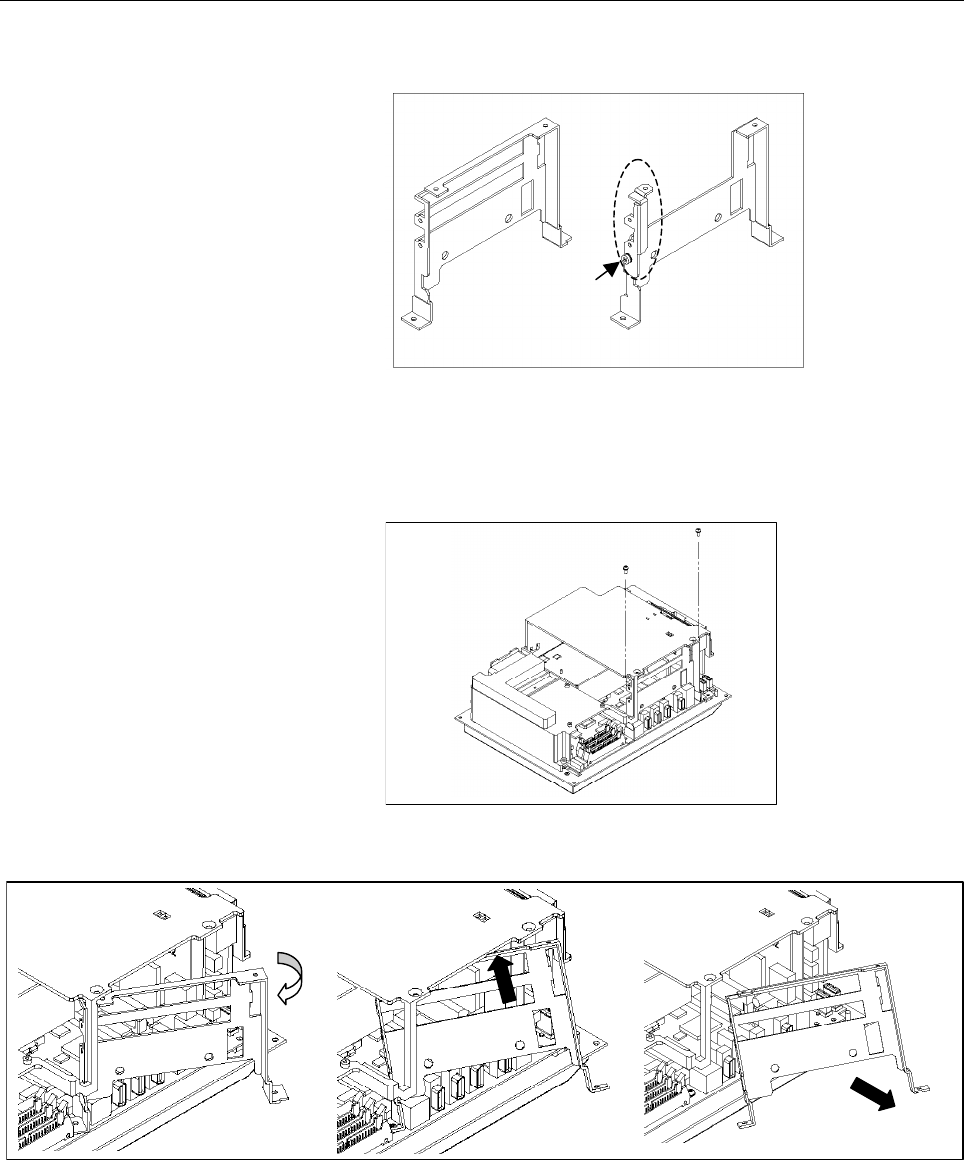

(5) Checking the shape of the PCI holding plate at the bottom of the
unit
<1> Old type <2> New type
<1> If the holding plate is an old type, remove it first.
<2> If the holding plate is a new type, remove the screw
indicated with an arrow, and loosen the fitting shown in a
dotted circle. Remove the cover as shown in (8).
(6) Removing the PCI holding plate 1 (for the old type only)
<1> Remove two screws from the PCI holder.
(7) Removing the PCI holding plate 2 (for the old type only)
<1>
<2>
<3>
<1> Open the PCI holding plate to about 30 degrees.
<2> Tilt it a little to the far side.
<3> Pull it out.
