B-64223EN/01 CONNECTION 4.CONNECTION TO PERIPHERAL
- 33 -
4.1.2 PANEL i for AUTOMOTIVE

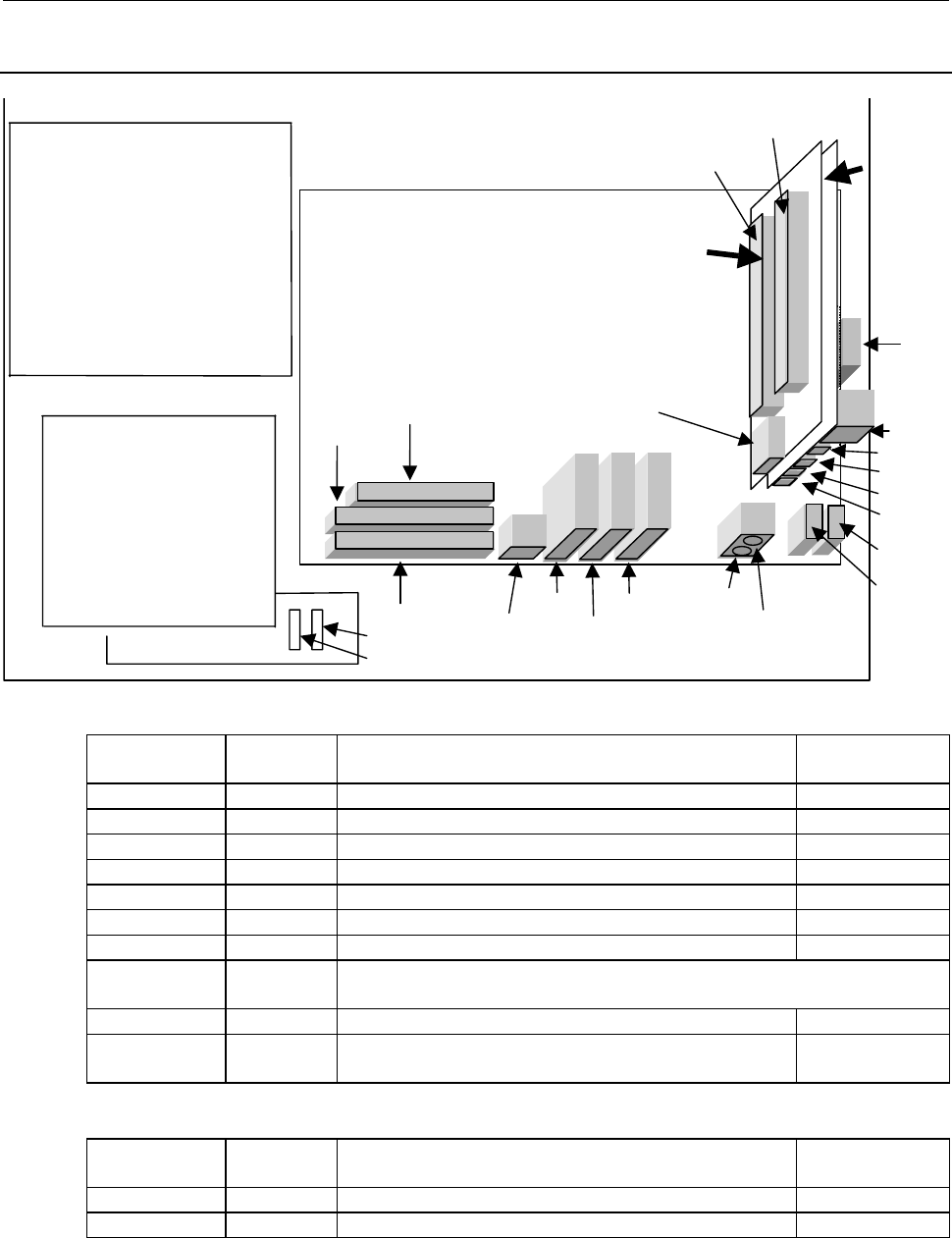

CPE11C
Power
Supply
PCB
CD46L
CPD14
View from
the back side
CD32L
CD32U
CPD11B
JD9
JD33
JD46
CA78A
CA78B
CD41L
CD41M
CA81B
CD34
CA81
A
CPD11C
CPD11A
CD38U
Master PCB
PCI Back Panel
PCB
Floppy Disk Drive and
CD-ROM Drive Unit
Hard Disk Drive Unit
JD1B
JD1A
I/O Link adapter PCB(Option)
COP7 (for 150
i
/160
i
/180
i
/210
i
)
COP21 (for 300
i
)
Master PCB
Connector
Number
Connector
Name
Function Reference
CA81A HDD1 HDD signal -
CA81B HDD2 CD-ROM Drive signal -
CD34 FDD FDD signal -
CD38U ETHERNET Ethernet Section 4.11
JD33 232-1 Serial Port1 Section 4.3
JD46 232-2 Serial Port 2 Section 4.4
JD9 CENTRO Parallel Port Section 4.5
CD32L KEY BOARD Keyboard
(This connector can not be used, because this connector is used on this unit
CD32U MOUSE Mouse Section 4.7
CD41L,M
CD46L
USB1,USB2
USB3
USB port (channel1,2,3)
(USB2 and USB3 are located in front.)
Section 4.10
PCI Back Panel PCB
Connector
Number
Connector
Name
Function Reference
COP7 or COP21 HSSB High Speed Serial Bus (HSSB) Section 4.6
CA78A,B PCI SLOT1,2 PCI extension slot Chapter 5
