Panel i Connection And Maintenance Manual Page 149

Connection And Maintenance Manual
B-64223EN/01 MAINTENANCE 6.MAINTENANCE SUPPLIES
- 137 -
6.8 METHOD OF EXCHANGING LCD BACKLIGHT
NOTE
It is not possible to exchange a backlight of
15.0”LCD. Exchanging of Base Unit for
maintenance (A08B-0084-Dxxx) is available in
case of 15.0”LCD.
6.8.1 Exchanging 10.4”LCD Backlight
(1) Make sure that PANEL i is turned off.
(2) Remove case cover (Refer to 6.2).
(3) Remove LCD backlight cable and LCD signal cable.
(4) If PANEL i has the Touch Panel, pull out flat cable for Touch
Panel from CN1 on the Touch Panel Controller PCB.
Flat Cable for Touch
Panel
LCD Signal Cable
LCD Backlight
Cable.
Remove/Attach
case cover.
(Refer to 6.2/6.3)

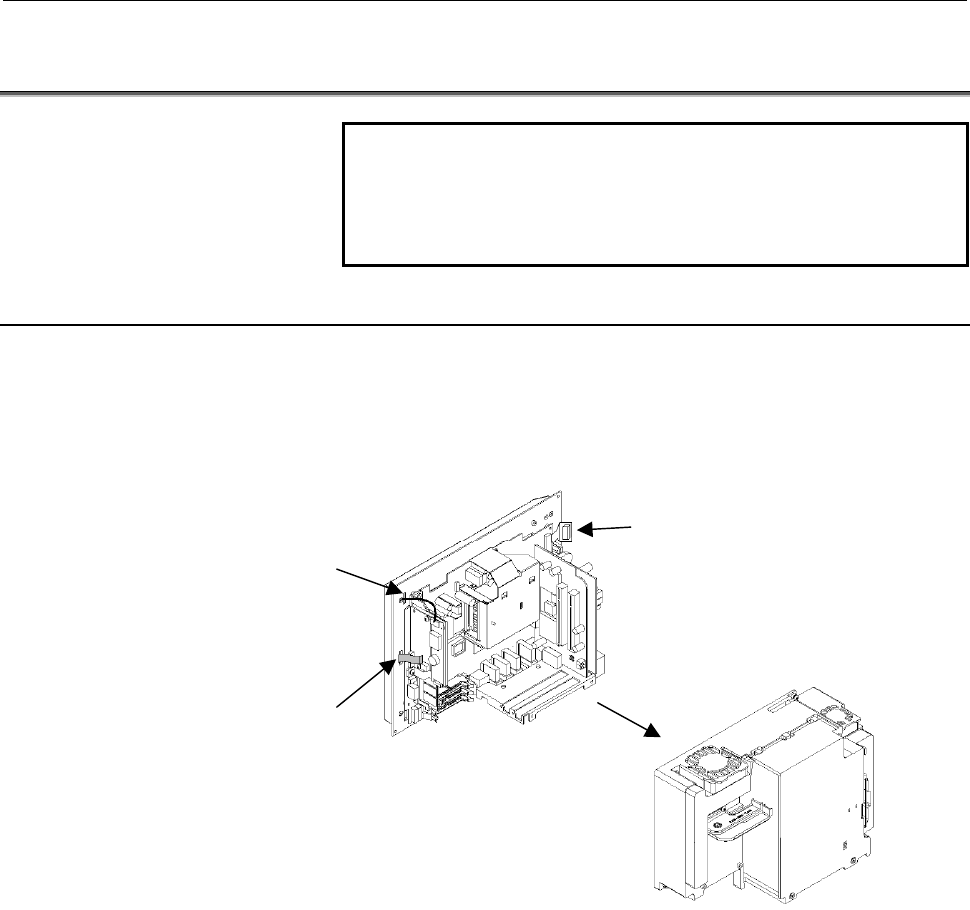

Fig. 6.8.1(a) Exchanging LCD Backlight at 10.4”LCD (1)
