Panel i Connection And Maintenance Manual Page 159

Connection And Maintenance Manual
B-64223EN/01 MAINTENANCE 7.METHOD FOR CORRECTING POSITIONS ON THE TOUCH PANEL
- 147 -

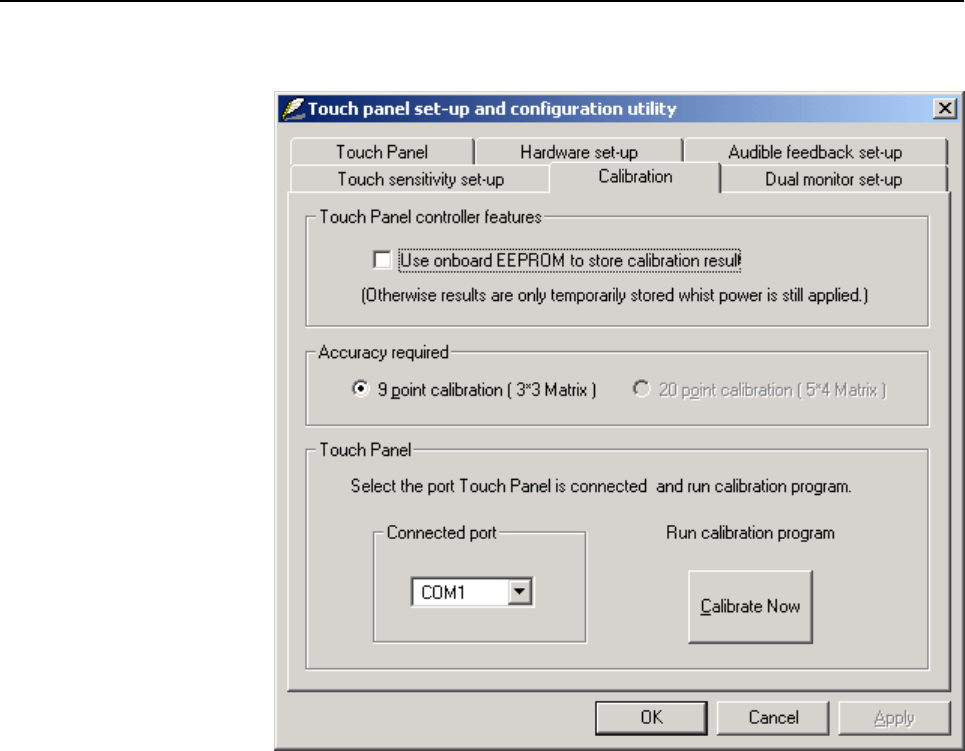

(2) Click the [Calibration] tab. Click the [Calibrate Now] button
with performing no other operations.
(3) The correction screen appears (a plus (+) sign appears at the
upper left of the screen). Press and hold the center of the plus
sign with a touch pen for about 1 second. Each time you press
the plus sign, the plus sign moves to the next position.
(4) After pressing the plus sign nine times, press the Enter key.
(5) Press the Enter key again and terminate the touch panel
correction program.
(6) Click the [OK] button on the [Touch panel set-up and
configuration utility] dialog.
