Panel i Connection And Maintenance Manual Page 62

Connection And Maintenance Manual
4.CONNECTION TO PERIPHERAL CONNECTION B-64223EN/01
- 50 -

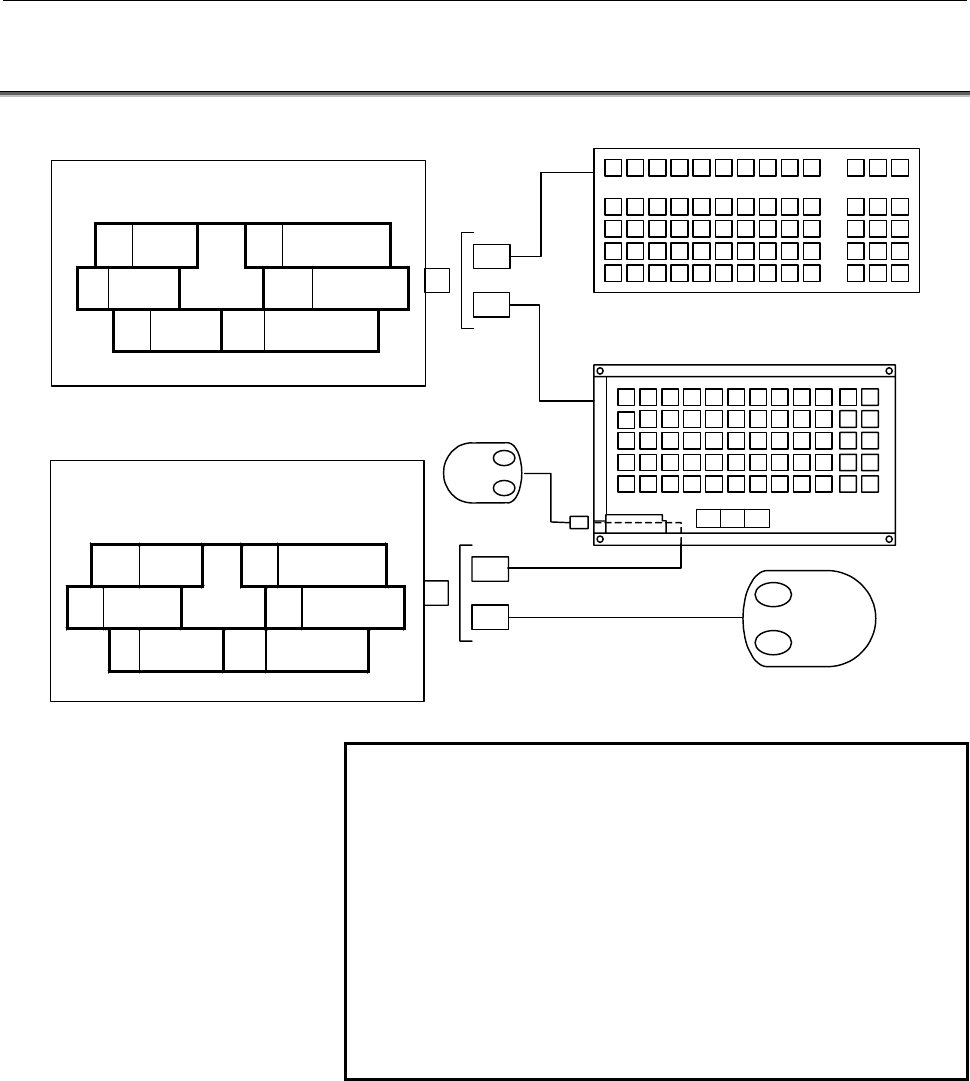

4.7 KEYBOARD AND MOUSE
PANEL
i
CD32L
(mini DIN6)
6 5
KEYCLK
4 +5V 3
0V
2 1 KEYDATA
KB
MS
6 5
MSCLK
4 +5V 3 0V
2 1 MSDATA
Mouse (commercial model)
Full keyboard (commercial model)
A
lternatively, FA full keyboard
Mouse (commercial model)
NOTE
1 Commercial full keyboards are prone to
compatibility problems with personal computers to
some degree. It is not guaranteed that a personal
computer can operate with every commercial full
keyboard. Machine tool builders are requested to
check the operability of the full keyboards they
select. Keep in mind that general commercial full
keyboards are neither dust-proof nor
moisture-resistant.
2 The keyboard port cannot be used for the PANEL i
for AUTOMOTIVE.
