Panel i Connection And Maintenance Manual Page 231

Connection And Maintenance Manual
B-64223EN/01-04
Title
Draw
No.
Ed. Date Design Description
Date Design. Apprv.
17/19
page

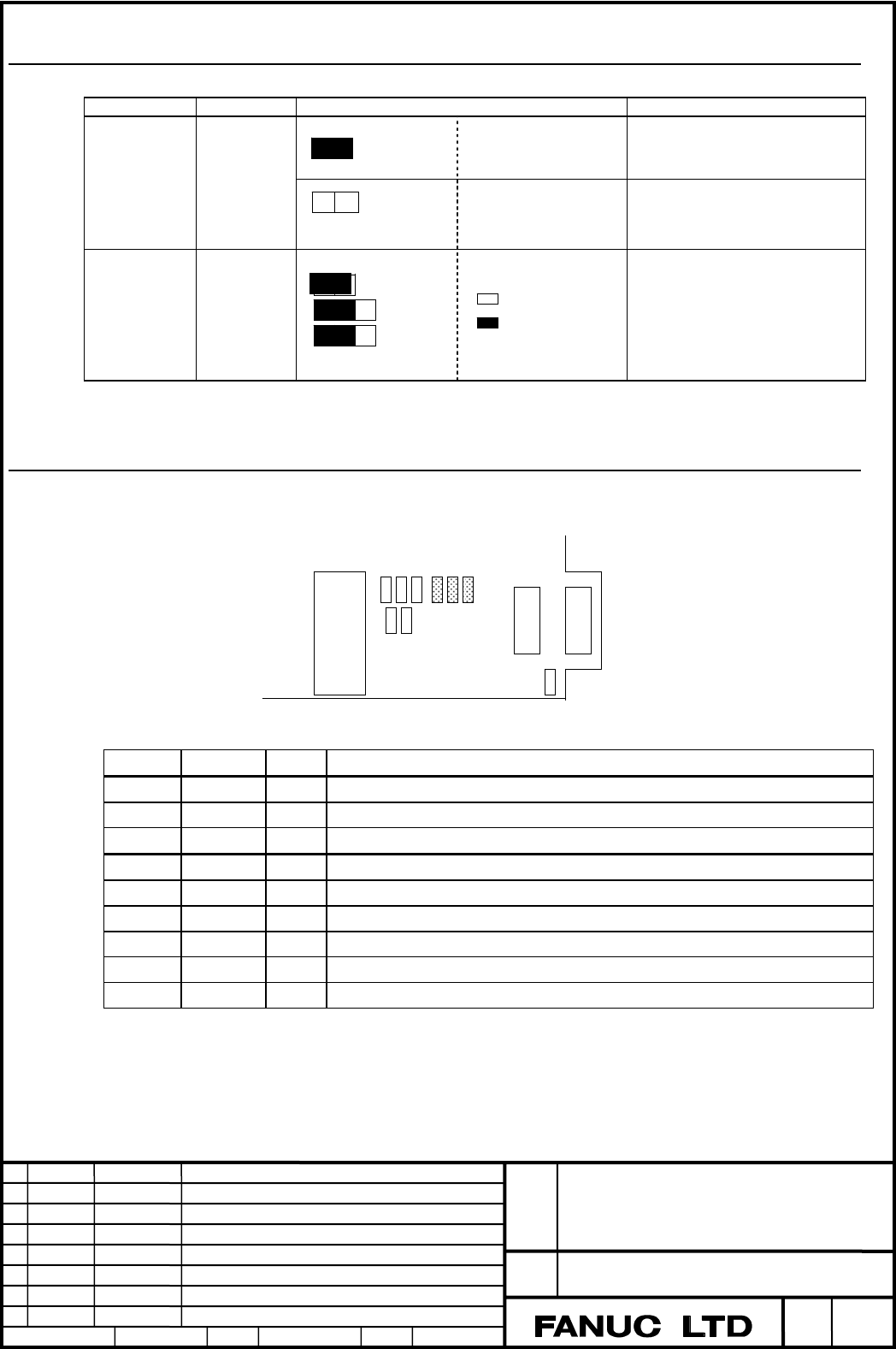

E.6.2 ADJUSTMENT (Setting of Short Plug on the Main Board)
Name Meaning Settings Remarks
TM1 FDD Mode Short Setting for FDD designated for
this PANEL i. Default on
manufacture.
Open Setting for former FANUC FDD.
TM18
TM3
TM4
Reserved
Default on manufacture.
Never change.
(TM4 will be set to right temporary
at maintenance)
Note) In case of special function settings will be changed.
E.6.3 LED DISPLAY (LED on Main Board)
Name 1 Name 2 Color Status
RE1 TRM Red Thermal Alarm. Thermal is not in regulated range.
RE2 BAT Red Battery alarm. The battery on PANEL i is exhausted. Please exchange it.
RE3 FAN Red Fans for basic unit or FAN for HDD is stopped. Please exchange
GR1 5V Green Power on LED. (+5V).
GR2 HDD Green HDD access LED.
GR3 PCM Green PCMCIA access LED.
GR4 LINK Green Ethernet link LED.
GR5 100M Green Ethernet 100MHz link LED.
GR6 ACT Green Ethernet activity LED.
Refer to the section 3.3.2 LED on Backplane about the LED status on the
Backplane.
TM1
TM1
TM18
TM3
TM4
: Open
: Short
RE2
RE3
RE1
GR5
GR4
GR6
GR3
GR2
GR1
CD32
CD41M
