This cycle performs tapping.

In this tapping cycle, when the bottom of the hole has been reached, the

spindle is rotated in the reverse direction.

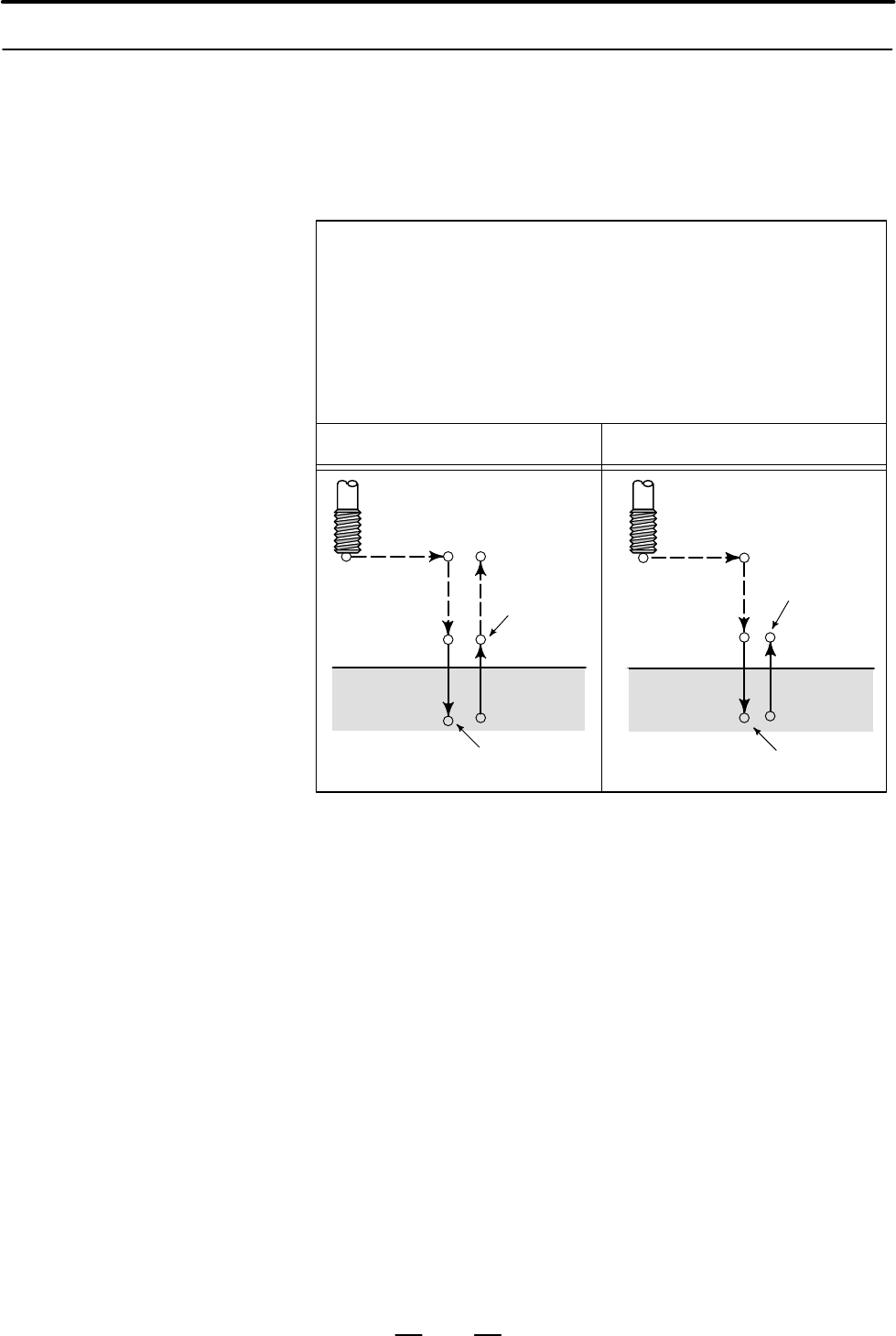

G84 (G98) G84 (G99)

G84 X_ Y_ Z_ R_ P_ F_ K_ ;

X_ Y_ : Hole position data

Z_ : The distance from point R to the bottom of the hole

R_ : The distance from the initial level to point R level

P_ : Dwell time

F_ : Cutting feedrate

K_ : Number of repents

Point R

Initial level

Point R level

Point Z

Spindle CCW

Spindle CW

Point R

Initial level

Point Z

Spindle CCW

Spindle CW

Tapping is performed by rotating the spindle clockwise. When the bottom

of the hole has been reached, the spindle is rotated in the reverse direction

for retraction. This operation creates threads.

Feedrate overrides are ignored during tapping. A feed hold does not stop

the machine until the return operation is completed.

Before specifying G84, use a miscellaneous function (M code) to rotate

the spindle.

When the G84 command and an M code are specified in the same block,

the M code is executed at the time of the first positioning operation. The

system then proceeds to the next drilling operation.

When the K is used to specify number of repeats, the M code is executed

for the first hole only; for the second and subsequent holes, the M code

is not executed.

When a tool length offset (G43, G44, or G49) is specified in the canned

cycle, the offset is applied at the time of positioning to point R.

13.1.7

Tapping Cycle (G84)

Format

Explanations
