PROGRAMMING

B–61404E/08

14. COMPENSATION FUNCTION

240

The following blocks have no tool movement. In these blocks, the tool

will not move even if cutter compensation is effected.

M05 ; M code output. . . . . . . . .

S21 ; S code output. . . . . . . . .

G04 X10.0 ; Dwell. . . .

G10 L11 P01 R10.0 ; Cutter compensation value setting

(G17) Z200.0 ; Move command not included in the .

offset plane.

G90 ; G code only. . . . . . . . .

G91 X0 ;Move distance is zero.

These com-

mands are of

no movement.

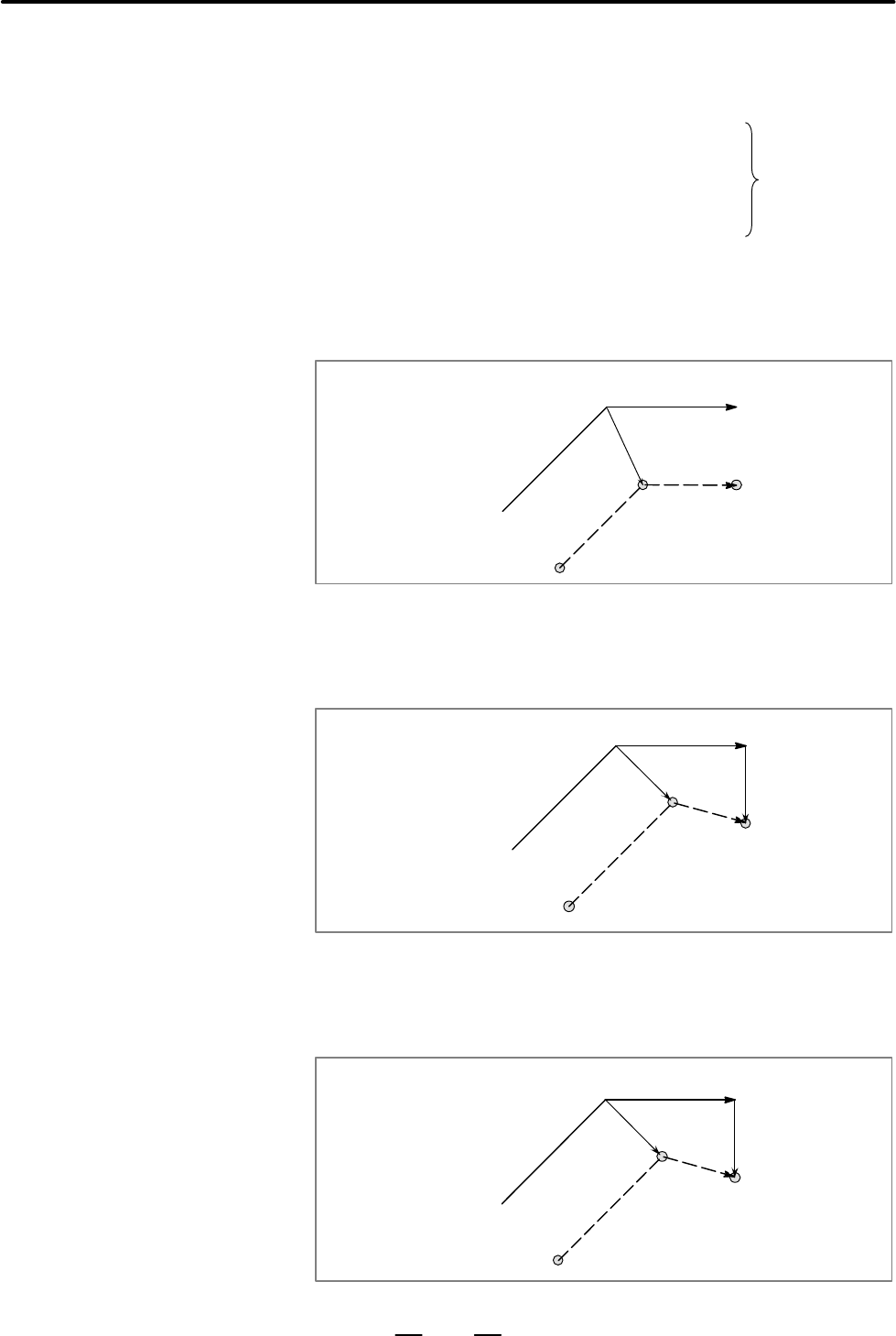

When a single block without tool movement is commanded in the offset

mode, the vector and tool center path are the same as those when the block

is not commanded. This block is executed at the single block stop point.

N7 N8

N6 G91 X100.0 Y100.0 ;

N7 G04 X10.0 ;

N8 X100.0 ;

Tool center path

Programmed path

Block N7 is executed here.

However, when the move distance is zero, even if the block is commanded

singly, tool motion becomes the same as that when more than one block

of without tool movement are commanded, which will be described

subsequently.

N7 N8

N6 G91 X100.0 Y100.0 ;

N7 X0 ;

N8 X100.0 ;

Programmed path

Tool center path

Two blocks without tool movement should not be commanded

consecutively. If commanded, a vector whose length is equal to the offset

value is produced in a normal direction to tool motion in earlier block, so

overcutting may result.

N7 N8

SSS

N6 G91 X100.0 Y100.0 ;

N7 S21 ;

N8 G04 X10.0 ;

N9 X100.0 ;

Blocks N7 and N8 are executed here.

Programmed path

Tool center path

D A block without tool

movement

A block without tool

movement specified in

offset mode
