FANUC SERIES 0/00/0-MATE Operators manual Page 93

Operators manual

Page of 719

/ 719

PROGRAMMING

B–61404E/08

5. FEED FUNCTIONS

NOTE

1 Comparison between a machining angle and parameter–set angle (parameter No. 865) is

made only for the XY plane. Comparison between a machining feedrate and parameter–set

feedrate (parameter No. 482) is made only for the X–axis and Y–axis. So, when movement

is made along three or more axes at the same time, only the X–axis and Y–axis are considered.

2 Corner roundness is determined by the angle and feedrate set in parameter Nos. 865 and 482.

To ensure that a sharp corner is obtained at all times, set a feedrate of 0 and an angle of 180

degrees in the respective parameters.

3 When G09 (exact stop) is specified, exact stop operation is performed, regardless of the angle

and feedrate set in the parameters.

4 This function cannot be used with the single step and dry run functions.

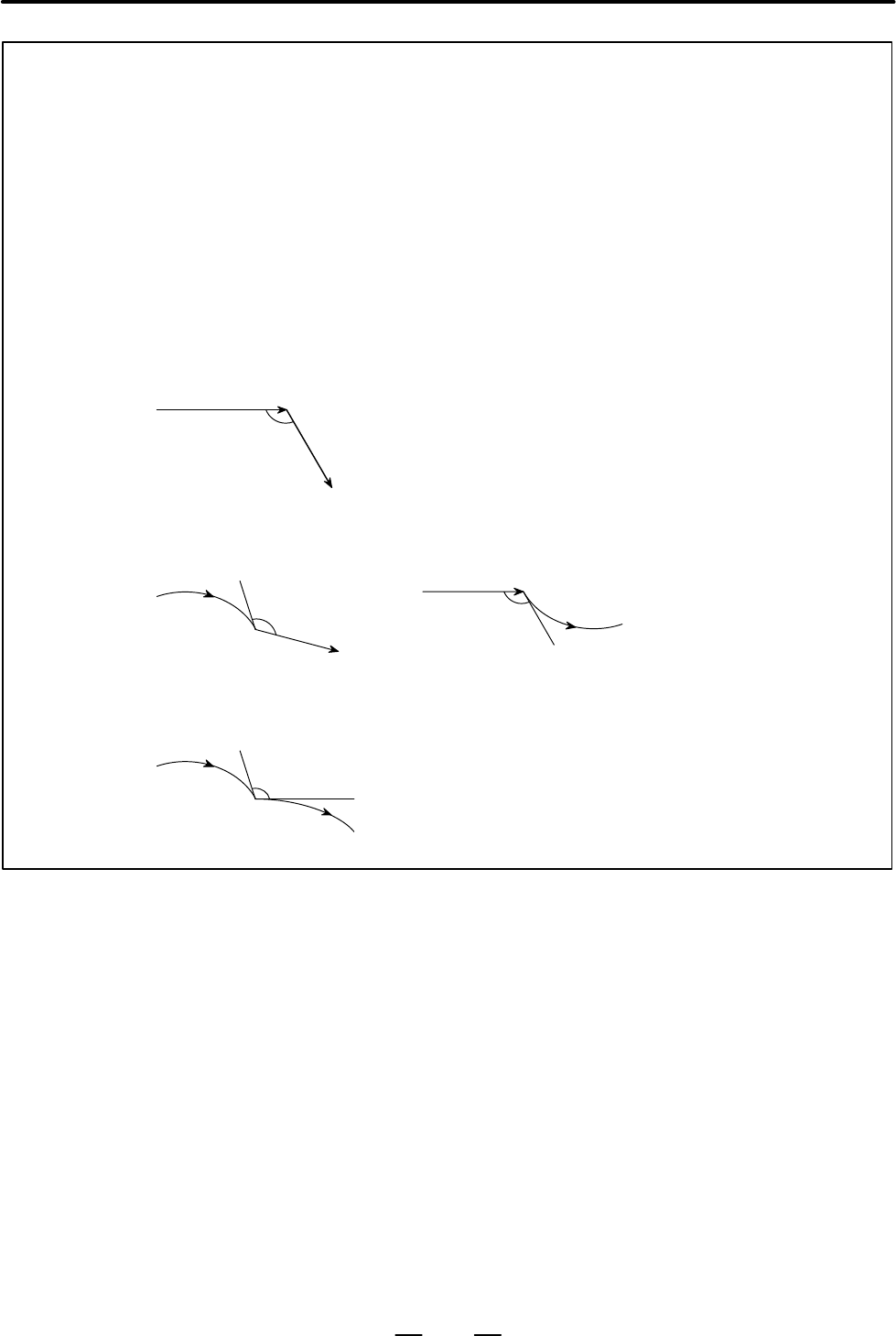

5 The angle (θ) between block A and block B is defined as shown below.

 Between two straight lines

 Between a straight line and an arc: Angle subtended by a straight line and the tangent to

an arc

 Between two arcs; Angle subtended by the tangent to one arc and the tangent to the other

arc

A(G01)

B(G01)

A(G02)

B(G01)

A(G01)

B(G03)

A(G02)

B(G02)
