APPENDIX

B–61404E/08

D. NOMOGRAPHS

650

When a servo motor is used, the positioning system causes an error

between input commands and output results. Since the tool advances

along the specified segment, an error is not produced in linear

interpolation. In circular interpolation, however, radial errors may be

produced, sepecially for circular cutting at high speeds.

This error can be obtained as follows:

Dr +

) T

)

(1). . .

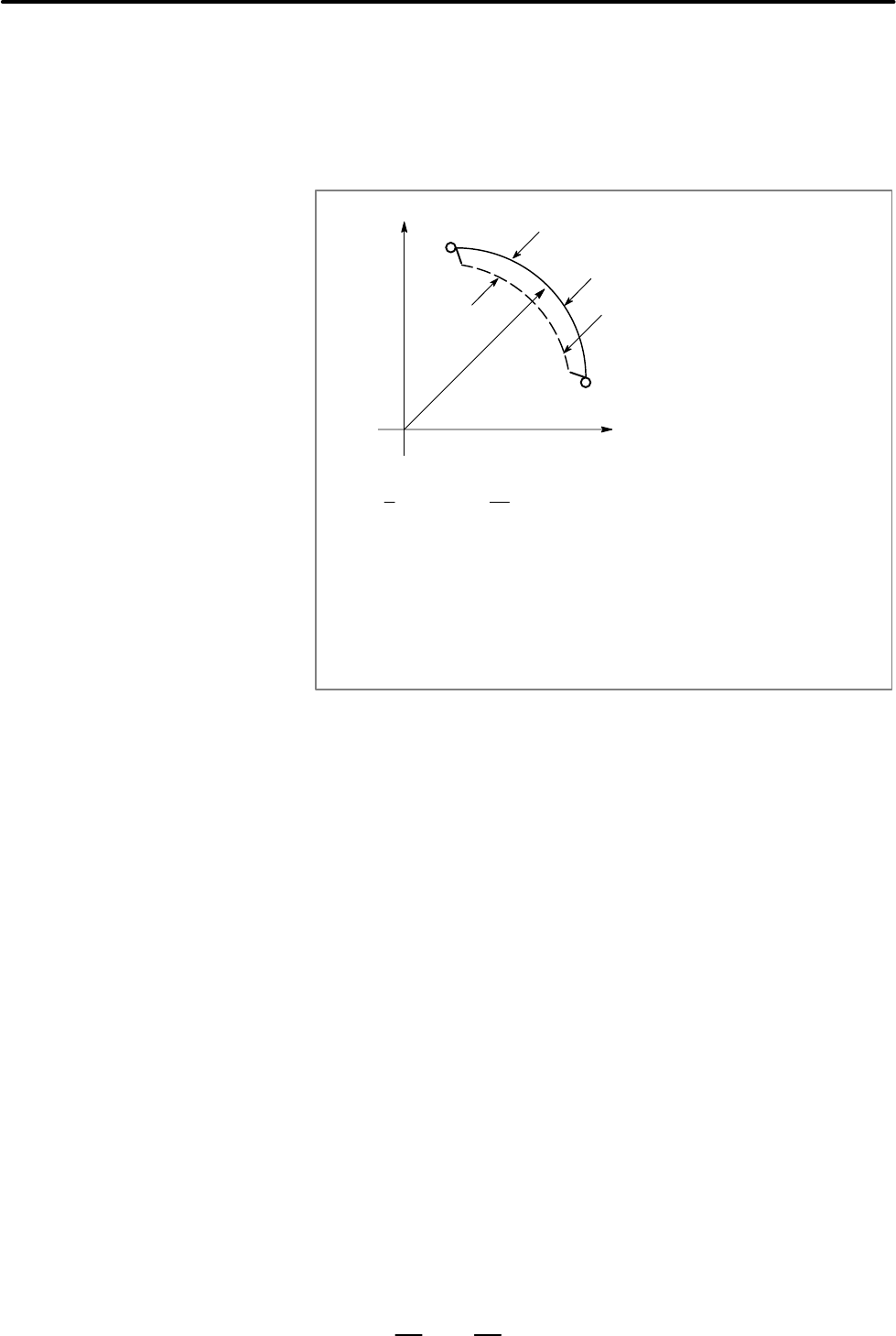

Command path

Actual path

Dr : Maximum radius error (mm)

v : Feedrate (mm/s)

r : Circle radius (mm)

: Exponential acceleration/deceleration time constant

(sec) at cutting (T=0)

: Time constant of positoning system (sec).

(Inverse of positon loop gain)

Since the machining radius r (mm) and allowable error Dr (mm) of the

workpiece is given in actual machining, the allowable limit feedrate v

(mm /sec) is determined by equation (1).

Since the acceleration/deceleration time constant at cutting which is set

by this equipment varies with the machine tool, refer to the manual issued

by the machine tool builder.

D.4

RADIUS DIRECTION

ERROR AT CIRCLE

CUTTING
