4. POWER SUPPLY UNIT CONNECTION
B–63463EN/01
24

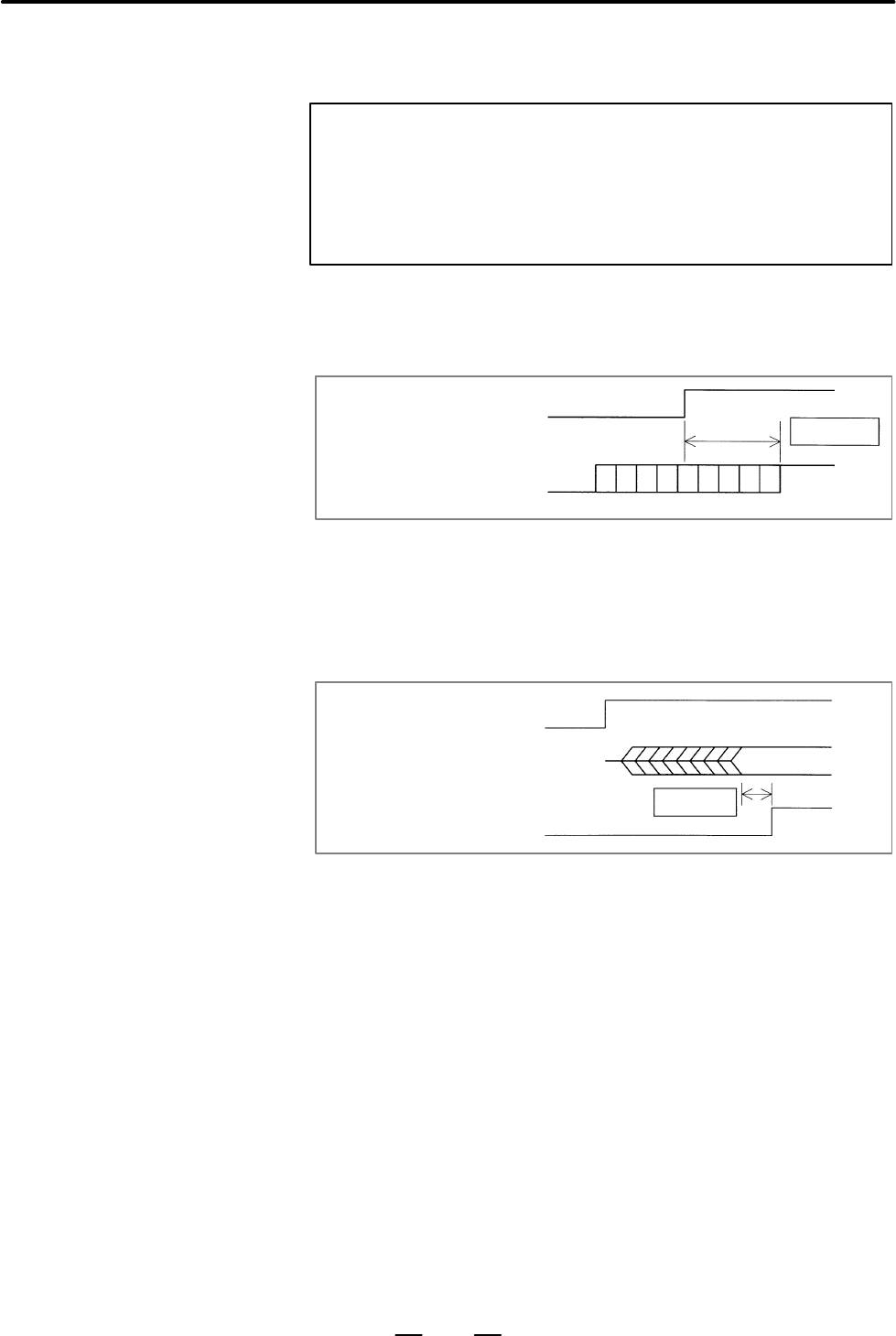

Apply the following power–on sequence. Alternatively, turn on the
power to all the units simultaneously.
1 Power to the entire machine <200 VAC>
Power to the servo amplifier <200 VAC>
Power to the separate detector
2 Power to the separate detector interface unit <24 VDC>
3 Power to the Digital Servo Adapter <24 VDC>
“Simultaneously,” as used here, refers to the following:
The units described in items 1 and 2 are turned on within 500 ms of the
Digital Servo Adapter in item 3 being turned on.
OFF
OFF
ON
ON
Power to the Digital Servo
Adapter <24 VDC>
Power to the units described
in items 1 and 2
<24 VDC, 200 VAC>
500 ms or less
If a separate detector (scale) of parallel interface is used and its power is
supplied from a power source other than a separate detector interface unit,
turn on the power to the separate detector (scale) before turning on the
power to the separate detector interface unit. The A/B–phase signal of the
separate detector (scale) must be stabilized before the separate detector
interface unit is turned on.
OFF
OFF
ON
ON
Power to the separate
detector (scale)
A/B–phase signal of the
separate detector (scale)
Power to the separate
detector interface unit
(24 VDC)
Unstable
Stabilized
0 sec or more
4.4
POWER–ON
SEQUENCE
