Power Mate i-Model D/H Descriptions Page 197

Descriptions

Page of 324

/ 324

B. LIST OF FUNCTIONS AND

TAPE FORMAT

B–63172EN/01

APPENDIX

180

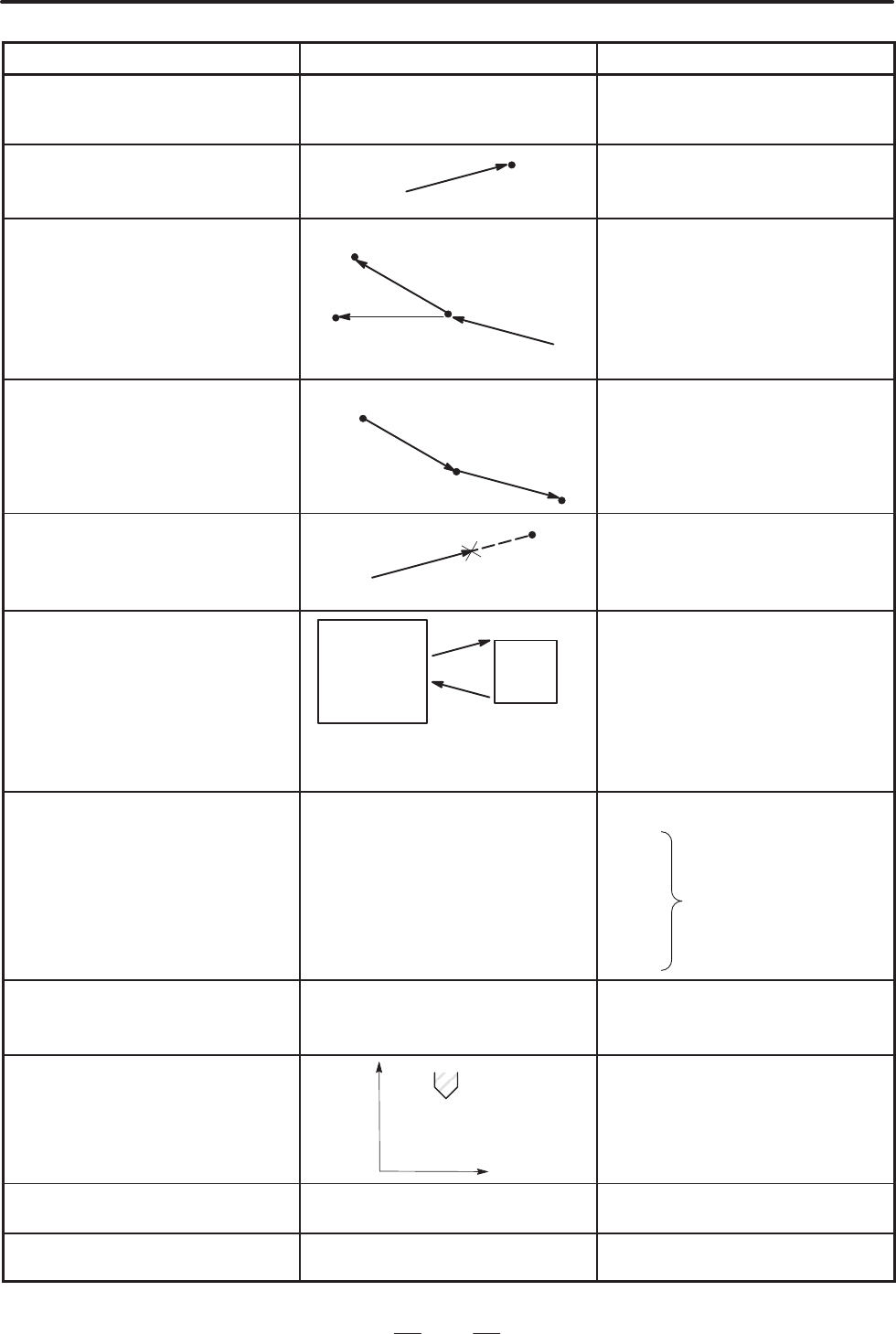

Functions Tape formatIllustration

Inch/millimeter conversion (G20, G21)

Inch input

Millimeter input

G20 ;

G21 ;

Reference position return check (G27)

Start point

G27 _ ;

Reference position return (G28)

2nd, reference position return (G30)

Start point

Reference position

Intermediate position

(G28)

2nd reference

position (G30)

G28 _ ;

G30 _ ;

Return from reference position to start

point (G29)

Intermediate position

Reference position

G29 _ ;

Skip function (G31)

Start point

Skip signal

G31 _ F_;

Custom macro (G65, G66, G67)

G65 P_L _ ;

O_ ;

M99 ;

Macro

One–shot call

G65 P_ L_

<Argument assignment> ;

P : Program No.

L : Number of repeatition

Modal call

G66 P_ L_

<Argument assignment>;

G67 ; Cancel

Canned cycles

(G73, G74, G76, G78–G89)

(Power Mate i–D/D2)

Refer to II–13. FUNCTIONS TO

SIMPLIFY PROGRAMMING

G80 ; Cancel

G73

G74

G76

G78

G79

G81

G89

X_Z_P_Q_R_F_;

Absolute/incremental programming

(G90/G91)

G90_ ;

Absolute command

G91_ ; Incremental command

G90_ G91_ ;

Combined use

Change of workpiece coordinate

system (G92)

G92 _ ;

Feed per minute, Feed per revolution

(G94, G95)

mm/min inch/min

mm/rev inch/rev

G94F_ ;

G95F_ ;

Constant surface speed control

(G96, G97)

G96S_ ;

G97S_ ;
