Power Mate i-Model D/H Descriptions Page 77

Descriptions

Page of 324

/ 324

B–63172EN/01

10. MISCELLANEOUS FUNCTIONS

NC FUNCTION

The communication of execution command signal (strobe signal) and

completion signal is the M/S/T function were simplified to realize a

high–speed execution of M/S/T function.

The time required for cutting can be minimized by speeding up the

execution time of M/S/T function.

The following describes an example of auxiliary function M code

command. The same applies to the T and S functions.

When an M code is specified, the CNC inverts the logical level of strobe

signal MF. Thus, when the signal is 0, it becomes 1. When it is 1, it

becomes 0. After inverting strobe signal MF, the CNC assumes the

completion of PMC operation once the logical level of completion signal

MFIN from PMC has become the same as the logical level of strobe signal

MF.

In the usual system, if the leading edge (from “0” to “1”) of the completion

signal FIN of M/S/T is received and then the trailing edge (from “1” to “0”)

of the signal FIN is received, it is considered that the operation has been

completed. However, in this system, the operation is considered to have

been completed by a single change of completion signal MFIN.

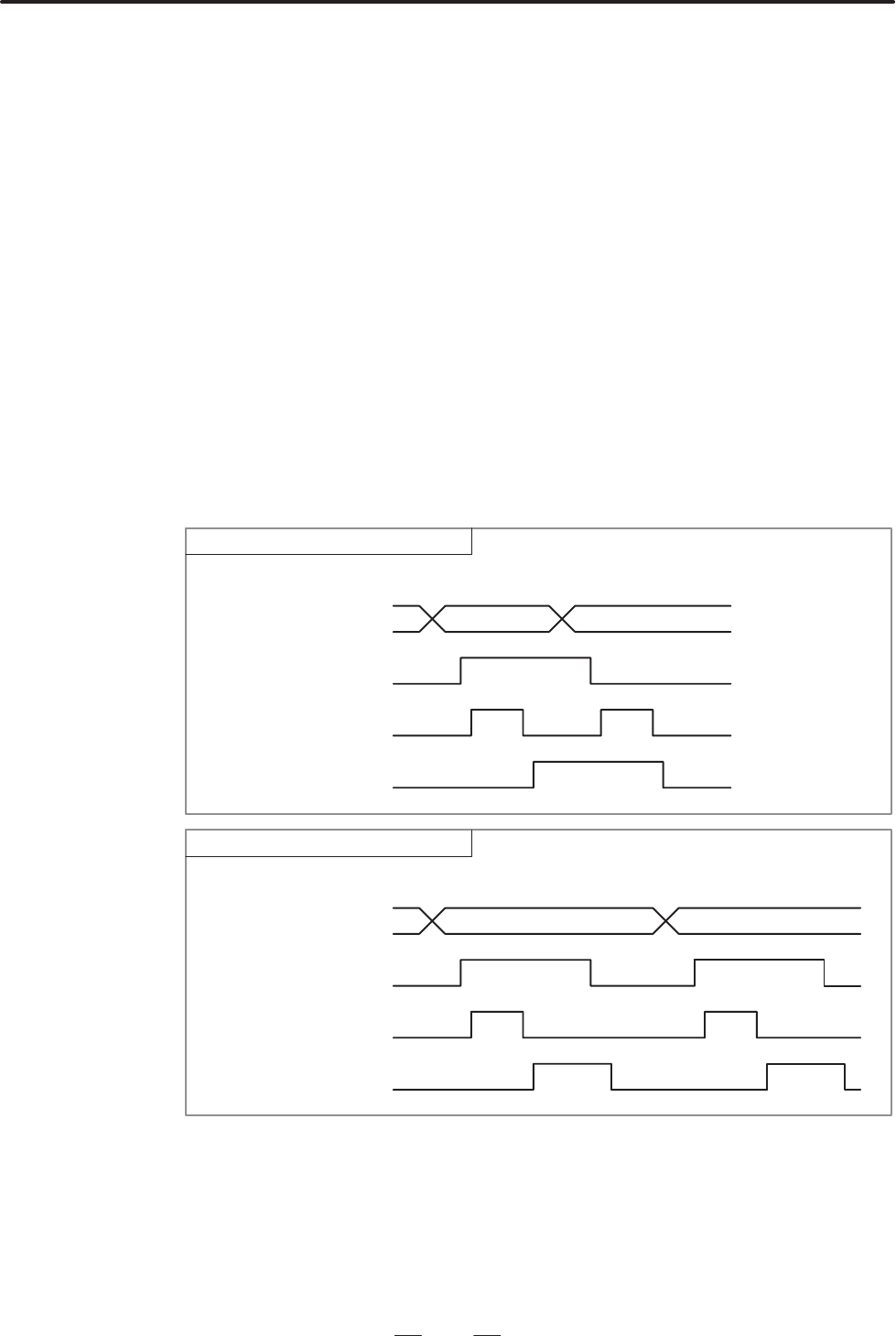

Example) M10;

M20;

M10 M20

M command Mxx

code signal

Strobe signal MF

Operation at PMC side

M function completion

signal MFIN

High–speed System Time Chart

M10 M20

M command Mxx

code signal

Strobe signal MF

Operation at RMC side

Completion signal FIN

Conventional System Time Chart

10.3

HIGH–SPEED M/S/T

INTERFACE
