Power Mate i-Model D/H Descriptions Page 260

Descriptions

Page of 324

/ 324

TITLE

B-63173EN-1/02

EDIT

DATE DESIG. DESCRIPTION

FANUC

ower

ate i-

Straightness compensation B function

Connection manual (function)

DRAW.NO. CUST.

SHEET

990624 New design

Straightness Compensation B function is applied to the following system series and version or later of the

Power Mate i-D/H.

Power Mate i series type

ＲＯＭ series version

FANUC Power Mate i-MODEL D

８８Ｅ０

FANUC Power Mate i-MODEL H

８８Ｆ０

Please add the following contents at the next part of the “1.3.2 Backlash compensation ” in the

“FANUC Power Mate i-MODEL D/H Connection manual (Function)” .(B-63173EN-1/01)

1.3.3

Straightness Compensation B

General For a machine tool with a long stroke, deviations in the straightness between axes may

deteriorate machining accuracy. For this reason, when an axis moves, other axes are

compensated in detection units to improve straightness. This improvement results in

better machining accuracy.

When an axis (parameter No. 5711) moves, the corresponding compensation axis

(parameter No. 5721) is compensated. That is, the compensation axis is compensated at

the pitch error compensation position (See 1.3.1 Stored Pitch error compensation) of the

moving axis.

・

・・

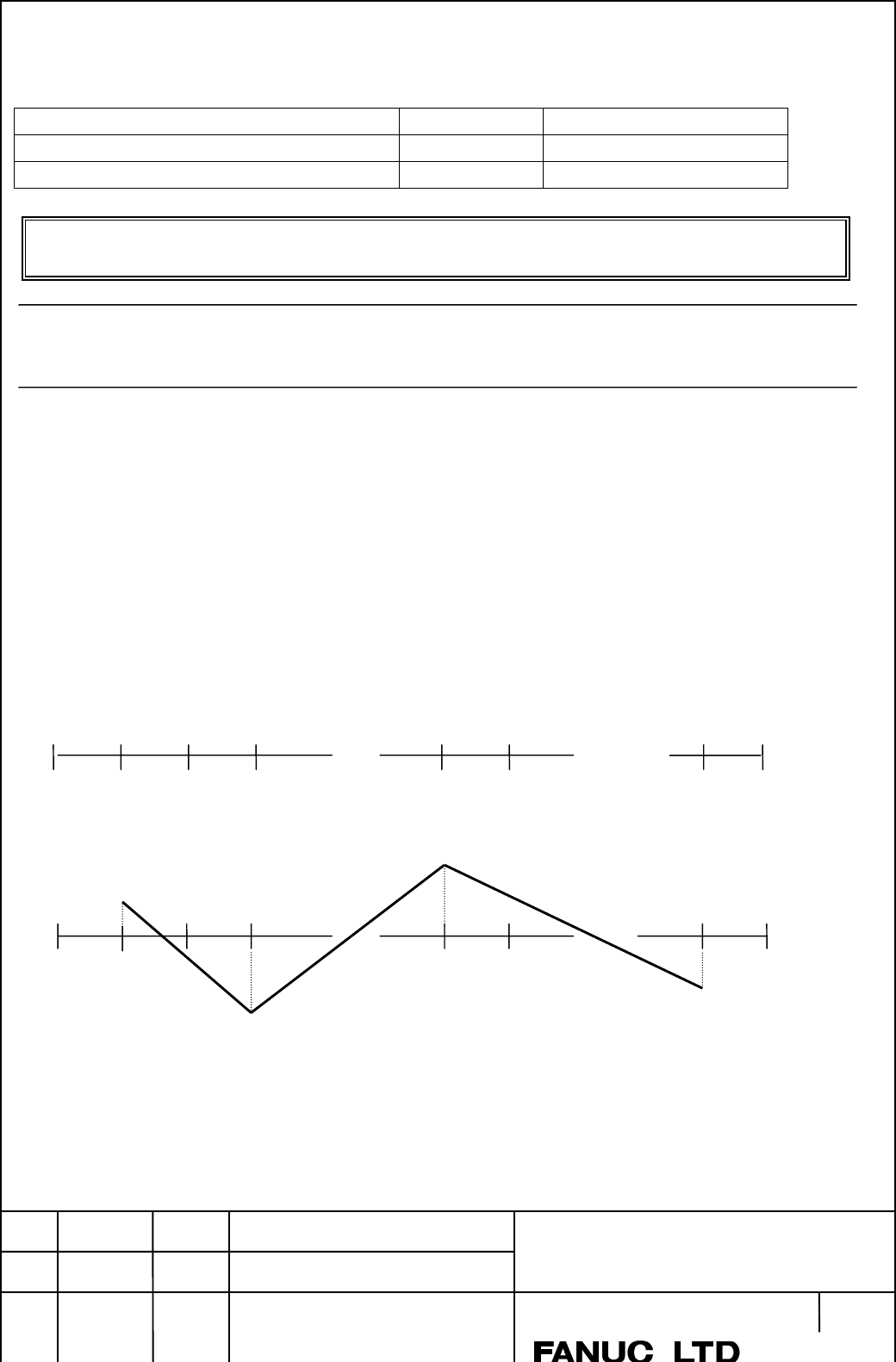

・Pitch error compensation points on moving axis

0 1 2 3 60 61 126 127

・

・・

・Machine coordinates for moving axis

a b c d

α γ

β ε

a, b, c, d : Compensation position numbers of the moving axis. (used pitch error

compensation point number)

α, β, γ, ε : Compensation for compensation axis.

This compensation from point a to point b is calculated from the formula:(β-α)/(b-a)
