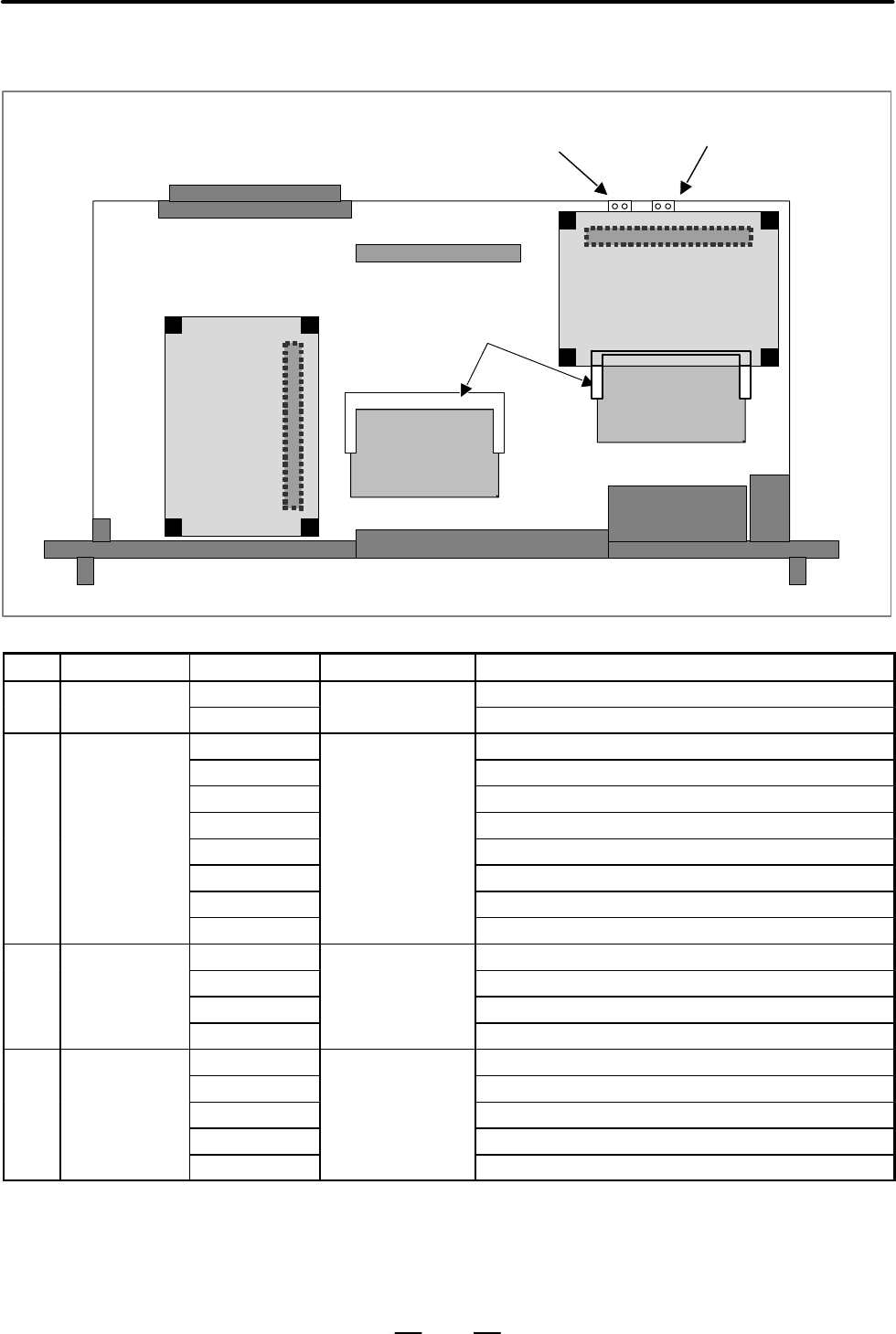

Series 15i/150i - Model A Maintenance manual Page 136

Maintenance manual
2. 15i SERIES HARDWARE
B–63325EN/03
116
Connector
(4)
SRAM module
(3)
FROM module
(2)
Axis control
card 1
Main board
DIMM module
socket
Connector
Connector
F–bus connector
(1)
Main CPU card
Setting pin SHT1
Setting pin SHT2
Faceplate
No. Name Specification Function Remarks
(1) Main CPU card A20B–3300–0101 CNC control RAM size : 16M
A17B–3300–0400 For high–speed processing
(2) Axis control A17B–3300–0200 Axis control 8 axes,
card 1
A20B–3300–0240 8 axes, Corresponding to servo HRV3, One optical connector
A20B–3300–0244 8 axes, Corresponding to servo HRV3, Two optical connectors
A17B–3300–0201 6 axes
A20B–3300–0241 6 axes, Corresponding to servo HRV3, One optical connector
A20B–3300–0245 6 axes, Corresponding to servo HRV3, Two optical connectors
A20B–3300–0120 4 axes
A20B–3300–0242 4 axes, Corresponding to servo HRV3, One optical connector
(3) FROM module A20B–3900–0070 CNC system, Servo 16M
A20B–3900–0071
system, PMC user
program, etc.
12M
A20B–3900–0072
program, etc.
8M
A20B–3900–0073 6M
(4) SRAM module A20B–3900–0020 Backup SRAM, 3M
A20B–3900–0060
parameter,
Program, etc.
2M
A20B–3900–0061
Program, etc.
1M
A20B–3900–0052 512K
A20B–3900–0053 256K
D Card mounting locations
