Series 15i/150i - Model A Maintenance manual Page 313

Maintenance manual
B–63325EN/03
4. INTERFACE BETWEEN THE NC AND PMC
293

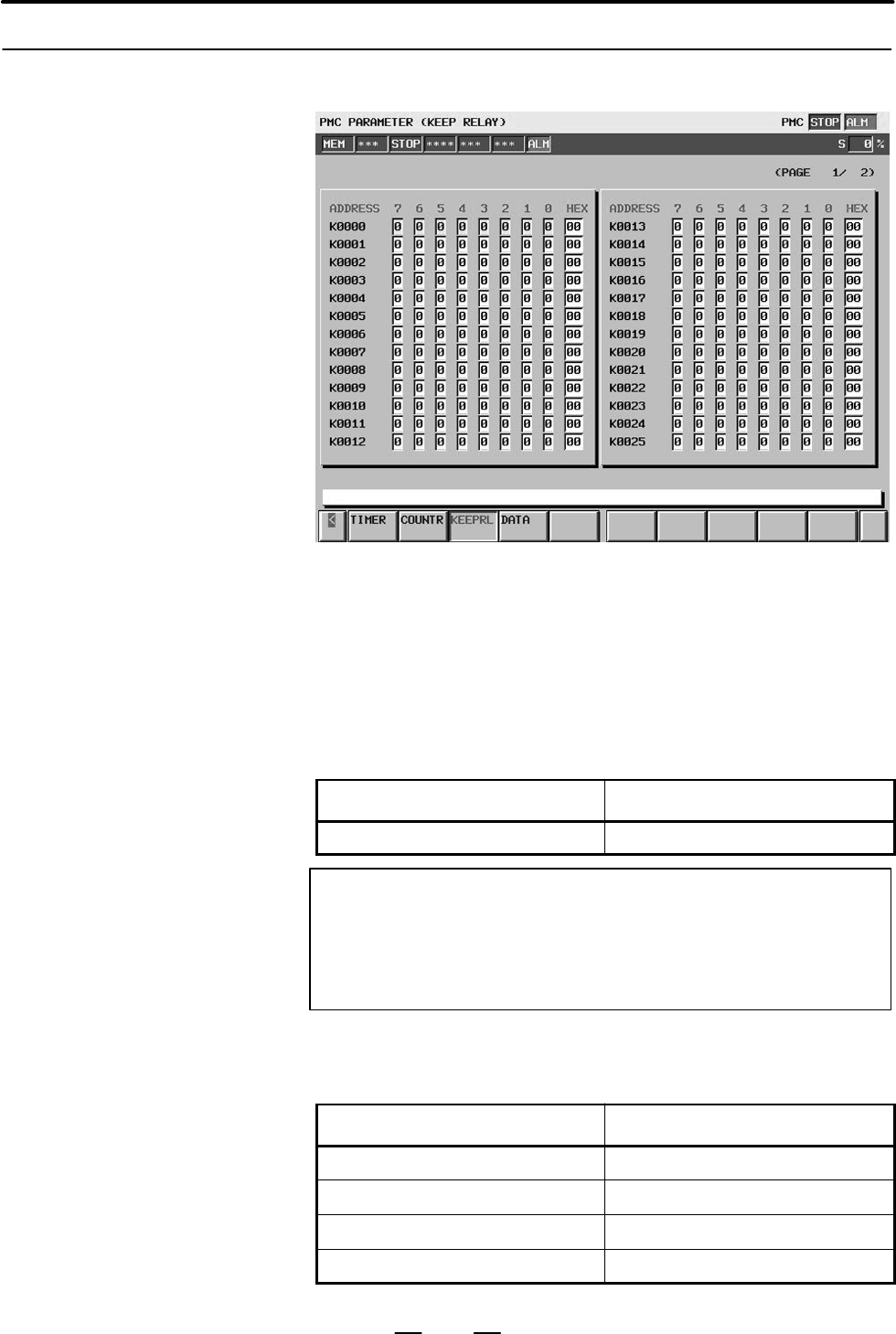

The keep relay screen is used to set and view the keep relay.
Table contents
S ADDRESS: Address referenced by the sequence program
S DATA (0 to 7): Data (in bit representation)
S HEX: Data (in hexadecimal representation)
Because the keep relay is battery–powered memory, switching off the
power will not erase the data in it.
Each PMC–NB6 area is as listed below:
Area available to the user K0 to K39
Area used by management software (Note) K900 to K909
WARNING
Area used by PMC management software
Because this keep relay is used by the PMC management
software, it cannot be used by the sequence program. Any
area left unused should be reset to 0.
See (4) in Section 6.1, Chapter 6, Part 1 for details.
(1)Area used by the management software (addresses K900 to K909)
Model NB6
PMC management software data 1 K900
Not used K901
Not used K902
Not used K903 to K909
4.3.4.6
Keep relay screen
(KEEPRL)
