4. INTERFACE BETWEEN THE NC AND PMC
B–63325EN/03
284

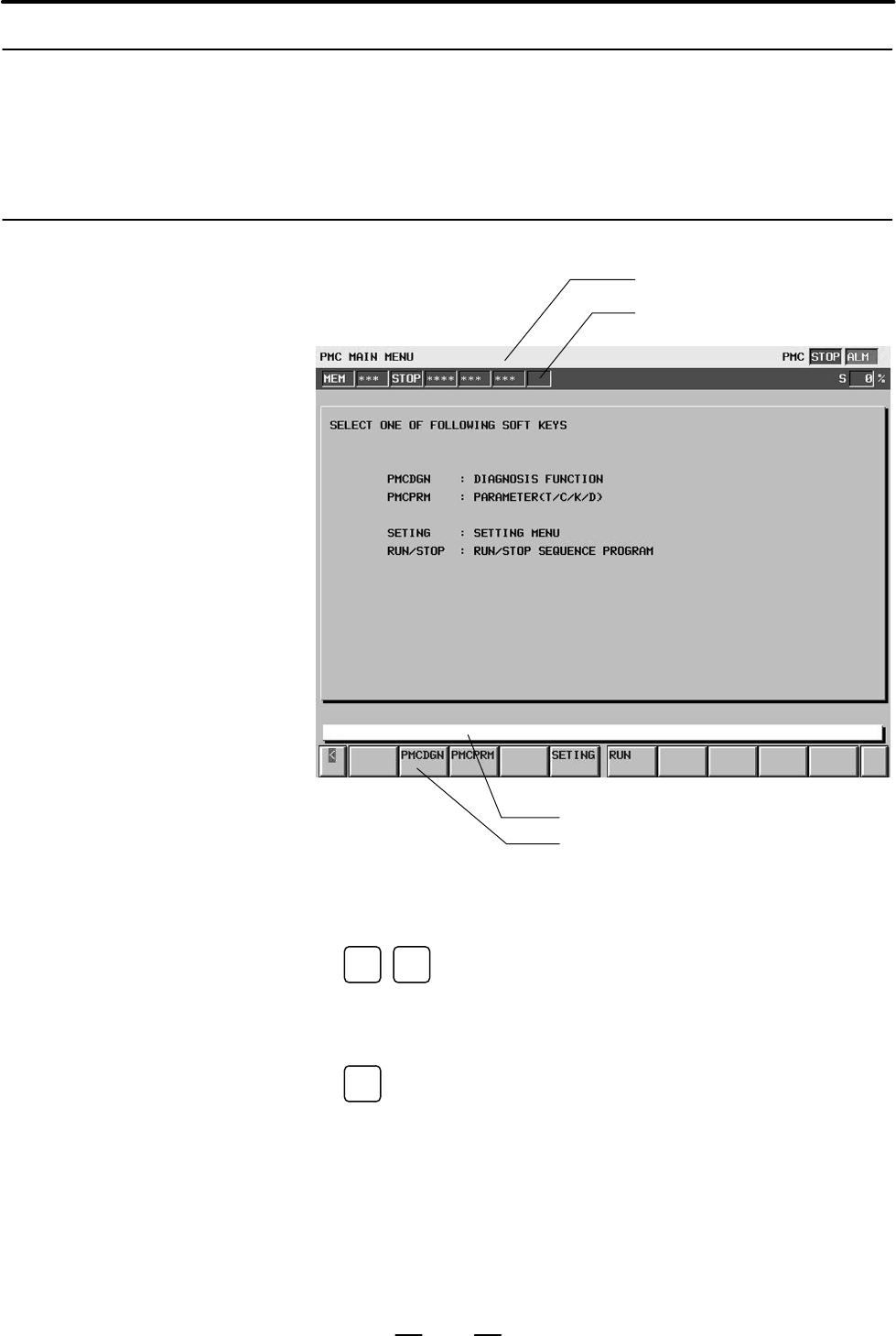

Pressing the <SYSTEM> function key on the LCD/MDI, then clicking
the [PMC] soft key displays the following PMC basic menu.
Title line
Status line
Key–in buffer
Soft key
(1)Title line
The title line displays the title of each PMC system screen. The status
of the PMC system is displayed at the right end of the title line.
RUN
STOP
These messages indicate the execution status of the
sequence program. [RUN] means that the sequence
program is running. [STOP] means that the sequence
program is not running.
ALM
This message means that a PMC alarm condition has
occurred.
(2)Status line
The status line displays various types of NC information. The
information displayed on the status line is the same as displayed on the
NC system screen.
(3)Key–in buffer
This field displays data entered using keys.
4.3.2
PMC Menu Selection
Procedure Based on
Soft Keys
4.3.2.1
PMC basic menu
Previous page
Next page
