C. APPENDIX C FANUC PANEL i
499
Intelligent Terminal 3 has a Touch Panel Protection Sheet on the face of
Touch Panel to protect the Touch Panel. When the screen cannot be
watched clearly because of some damages or stains, exchange the Touch
Panel Protection Sheet. Please prepare the following.
Name Specification
Touch Panel
for 10.4”LCD A02B–0236–K110
Protection Sheet
for 12.1LCD A02B–0236–K118
for 15.0”LCD A08B–0082–K020

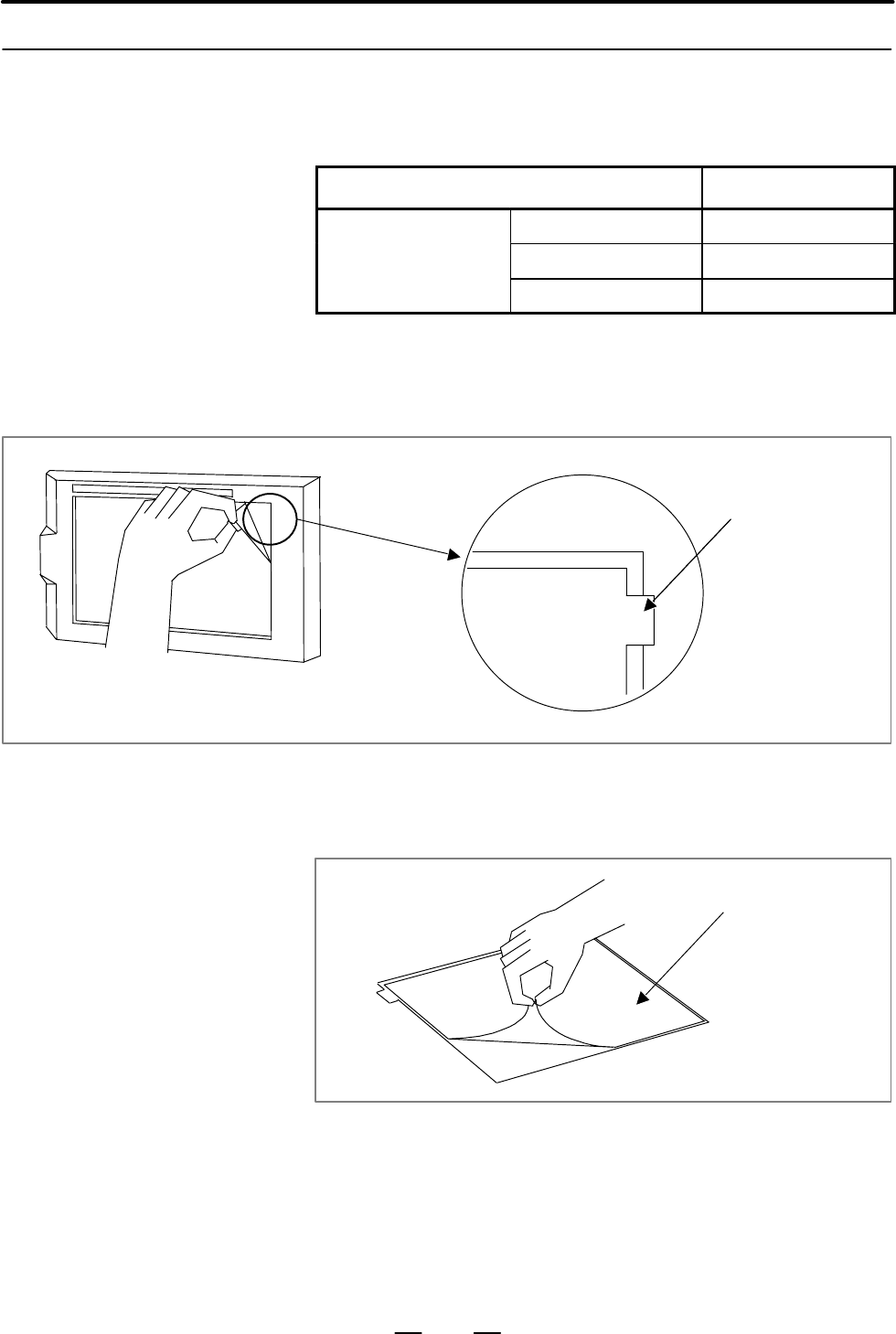

(1) At first, strip the old Touch Panel Protection Sheet off.
Tab for exchange
Touch Panel
Protection
Sheet
(2) Clean the face of the LCD well.
(3) Strip the white film on the back of the new Touch Panel Protection
Sheet (this side is to stick on the LCD face) off.
LCD side
C.4.5
Method of Exchanging
Touch Panel Protection
Sheet
How to exchange
Previous page
Next page
