Series 15i/150i - Model A Maintenance manual Page 317

Maintenance manual
B–63325EN/03
4. INTERFACE BETWEEN THE NC AND PMC
297
[SEARCH]: After an address is entered, clicking this soft key moves the
cursor to the specified address in the currently selected
group. The first letter D can be omitted when entering an
address. For example, after 101 is entered, clicking this soft
key moves the cursor to data using D101.

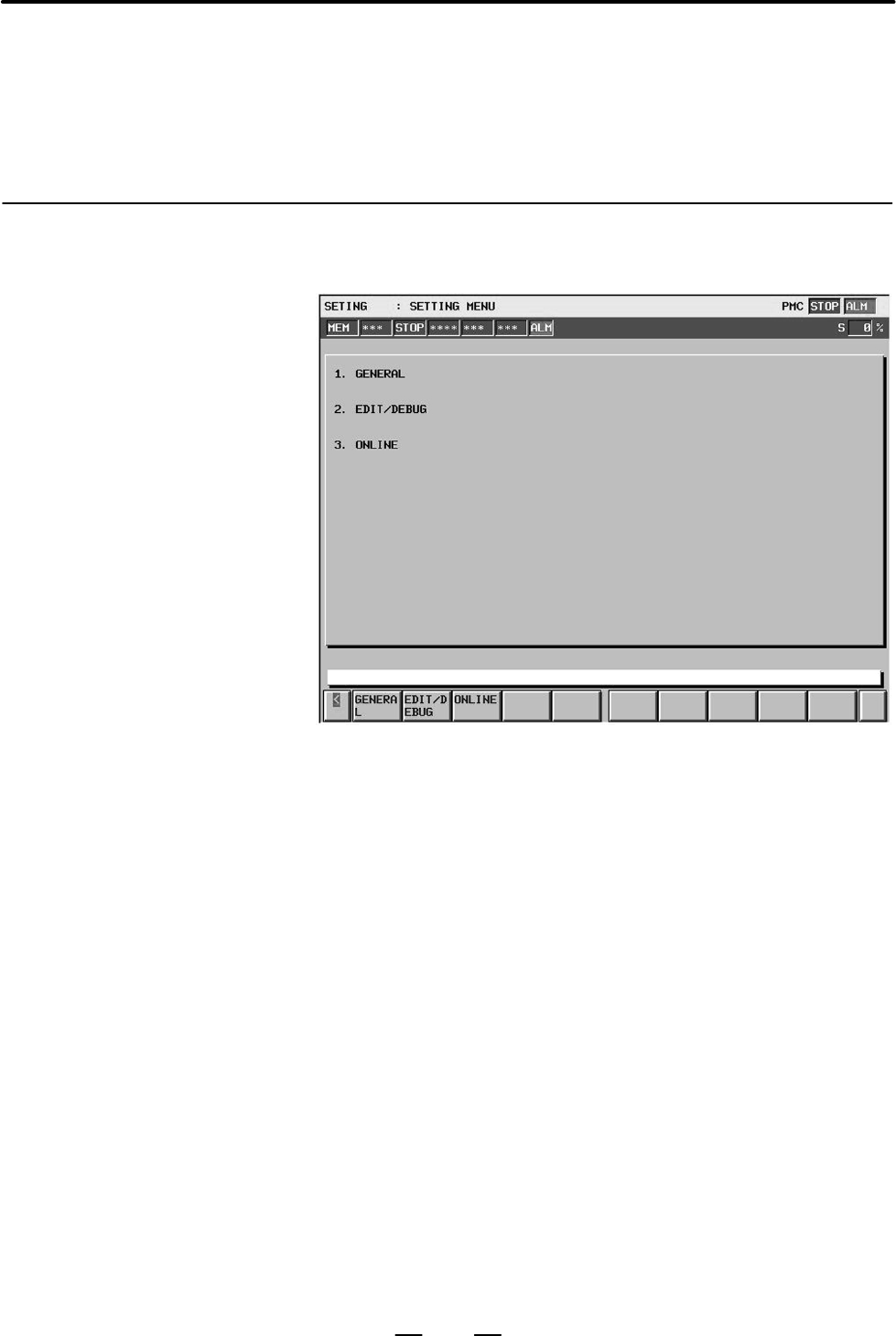

Clicking the [SETING] soft key on the PMC basic menu screen displays
the following setting menu screen.
Menu contents
1. GENERAL: Screen on which general setting data is displayed.
2. EDIT/DEBUG: Screen on which setting data related to editing and
debugging is displayed
3. ONLINE: Screen on which communication parameters are
set up for the online function. (This is displayed
by selecting YES for PROGRAMMER ENABLE
on the GENERAL screen.)
Clicking a soft key displays the corresponding setting screen. Some
values set on this screen are stored in the keep relay. The settings stored
in the keep relay can be protected from changes on this screen by writing
such that in the keep relay using the sequence program.
4.3.5
Setting Menu (SETING)
