4. INTERFACE BETWEEN NC AND PMC

B–63665EN/01

192

Upon completion of trace execution, trace results can be checked.

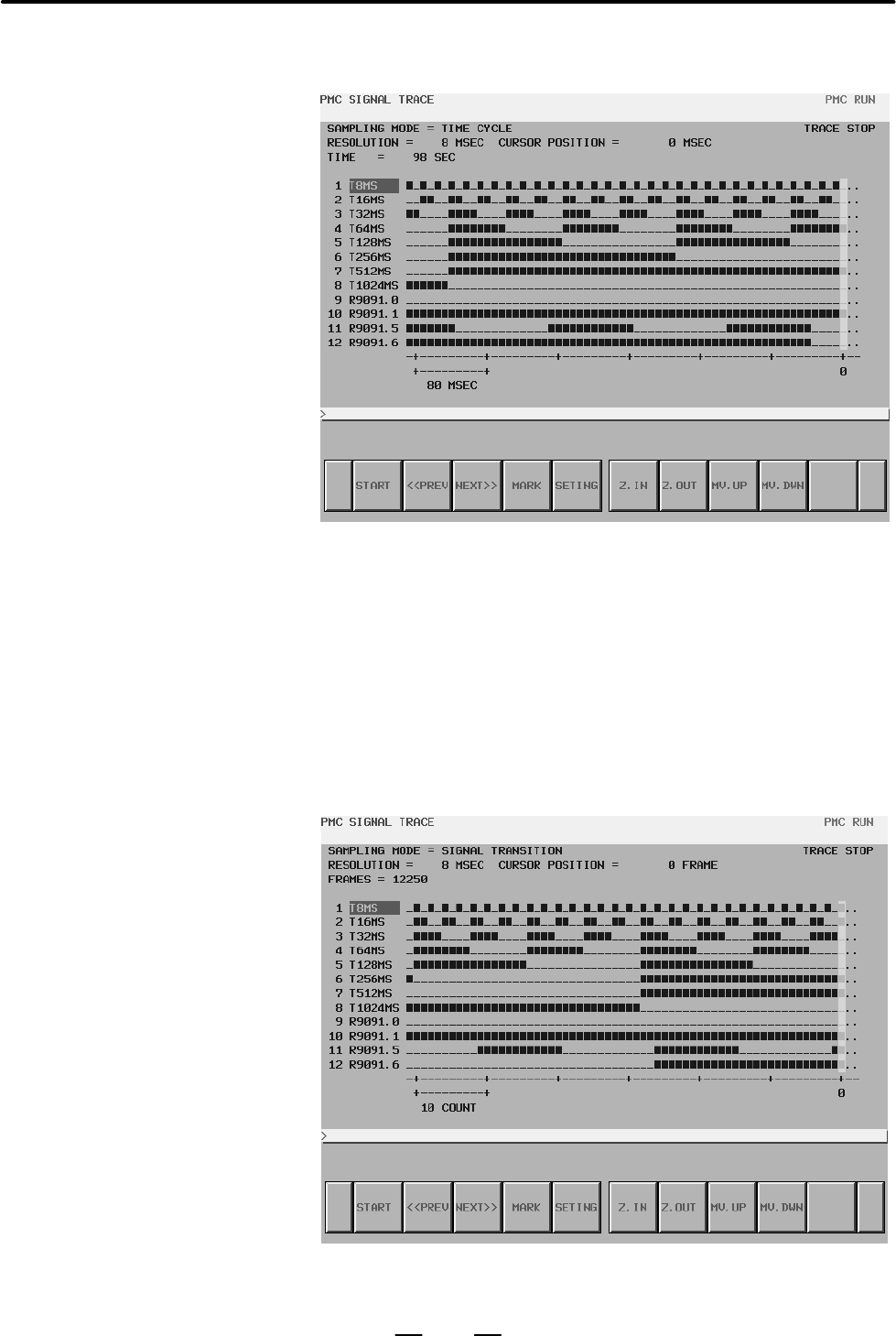

Signal trace result screen (time cycle mode)

(a) Automatic selection range calculation display

When you press the [MARK] soft key, the cursor position at that time

is marked, and a mark cursor is displayed. If the mark cursor and the

current position cursor are placed at the same position, the current

position cursor takes priority. At the top of the screen, a mark position

indicating the mark cursor position and range information indicating

the range from the mark cursor position to the current position cursor

are displayed. These values change as the current position cursor

move. To cancel the range selection, press the [MARK] soft key again.

Signal trace result screen (mark cursor display)

Checking trace results
