16i/160i-LB Maintenance manual Page 333

Maintenance manual

Page of 512

/ 512

B–63665EN/01

7. TROUBLESHOOTING

313

A ROM parity error occurred.

The software including the CNC system software, servo software, PMC

management software, and PMC Ladder is stored in the flash memory on

the FROM/SRAM module. It starts execution after being loaded into the

RAM of the DRAM module or servo card at power on.

A ROM parity error occurs if the software stored in the FROM/SRAM

module is destroyed.

On the screen, the series of the software in which a fault was detected is

displayed. Rewrite the software using the boot system.

The software stored in the FROM/SRAM module includes a variety of

FANUC software components, as well as those created by the MTB, such

as the PMC Ladder.

Replace the FROM/SRAM module

After replacement, all the software that was once stored must be written.

Because the replacement clears the contents of the SRAM memory, the

memory contents must be restored. For this operation, use the boot

system.

If any of the above actions does not solve the problem, replace the

motherboard.

[For the LCD–mounted type]

FROM/SRAM module

7.23

ALARM 900

(ROM PARITY)

Causes and actions

D Rewriting the software

component

D Replacing the

FROM/SRAM module

D Replacing the

motherboard

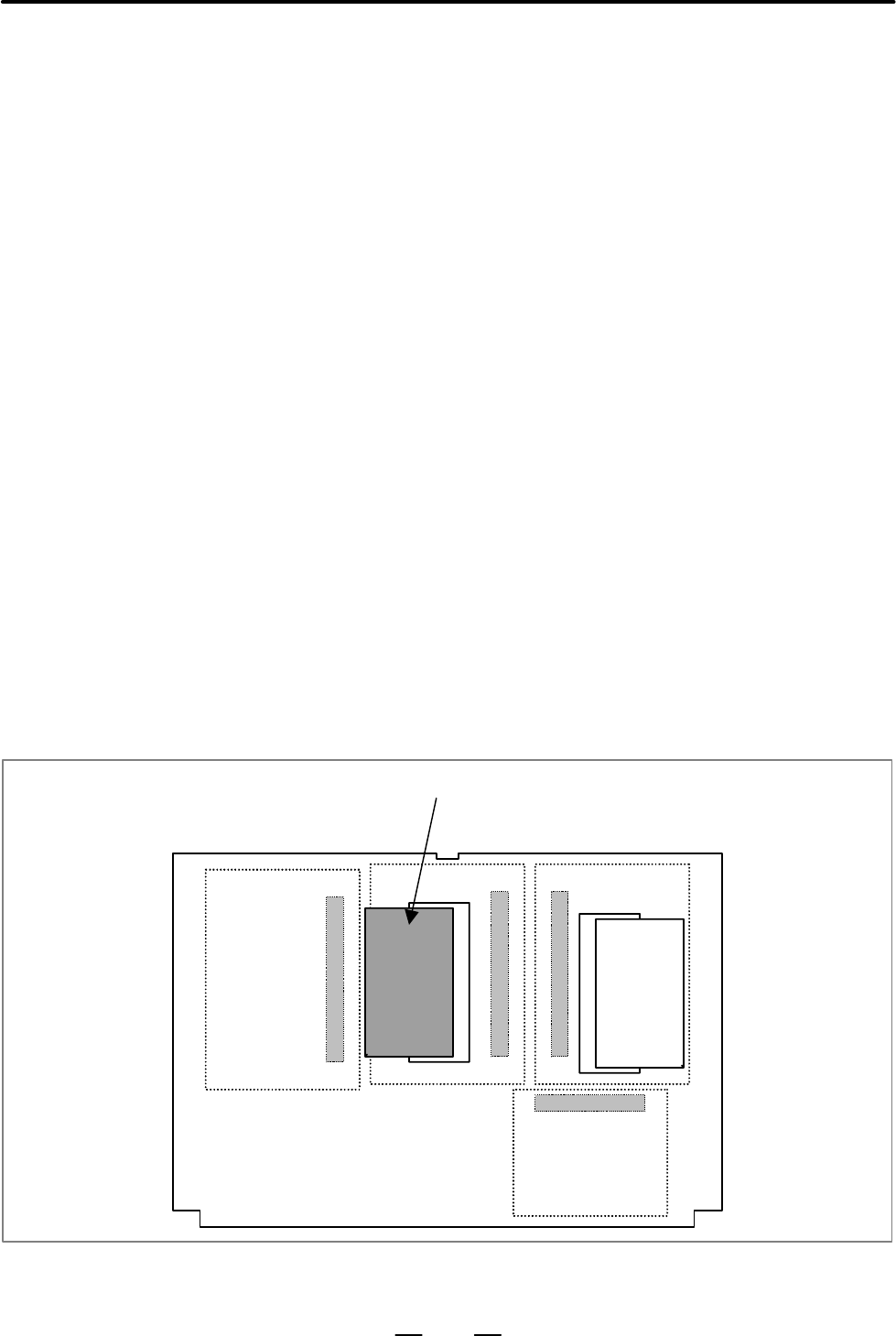

D Installation position of

the FROM/SRAM module
