16i/160i-LB Maintenance manual Page 490

Maintenance manual

Page of 512

/ 512

APPENDIX

G. FSSB START–UP PROCEDURE/

MATERIALS

B–63665EN/01

470

When the following parameters are set, manual setting 1 is enabled:

Bit 0 of No. 1092 = 0

Bit 1 of No. 1902 = 0

Nos. 1910 through 1919 = 0 (all set to 0)

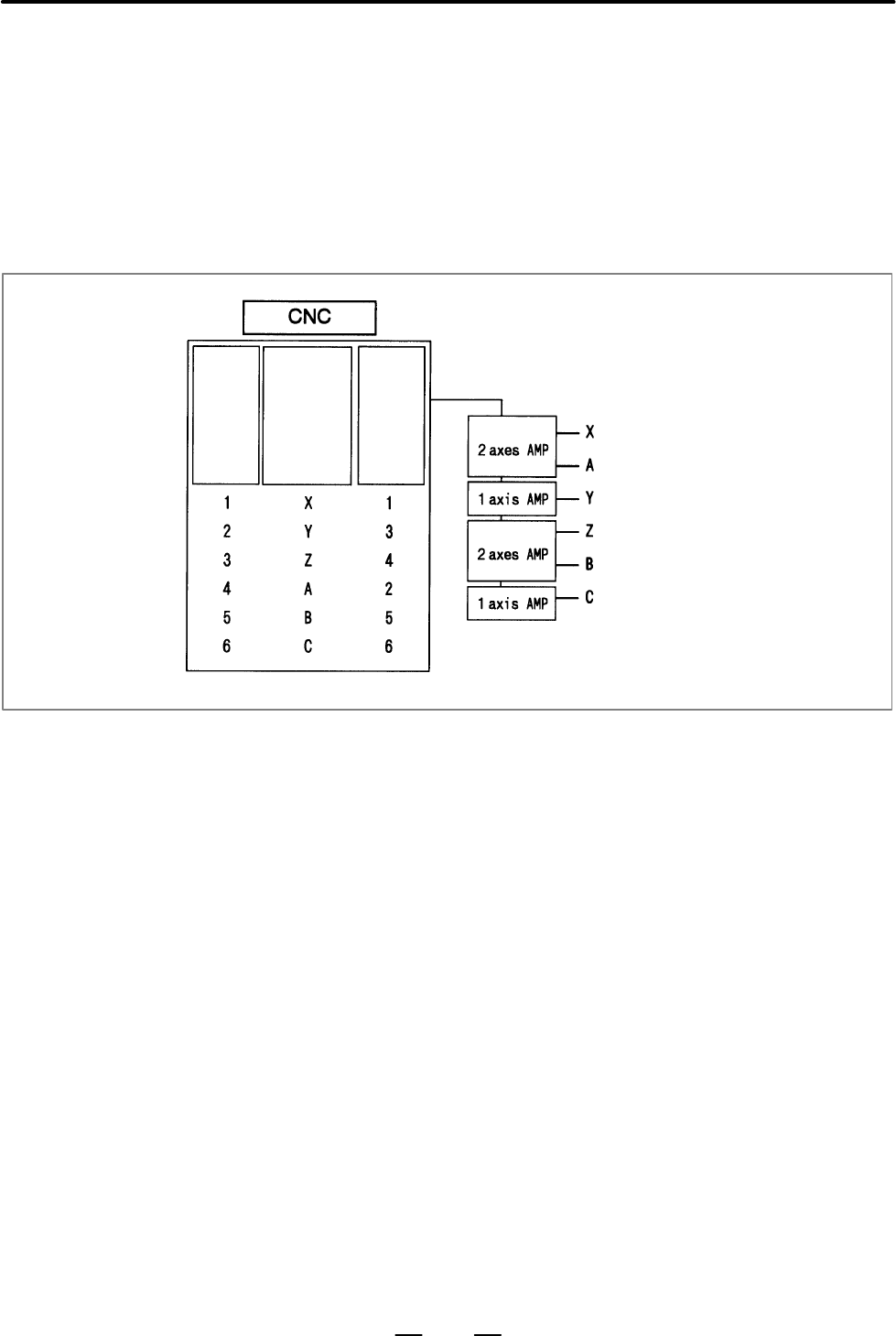

In manual setting 1, a setting is made at power–on so that the value set in

parameter No. 1023 is assumed to be a slave number. That is, an axis for

which the value of parameter No. 1023 is 1 is connected to the amplifier

closest to the CNC. An axis for which the value of parameter No. 1023

is 2 is connected to the amplifier next closest to the CNC.

Note) M1/M2 : Separate detector interface unit 1 st/2 nd

Control

Axis No.

Program

Axis Name

No.1020

Servo

Axis

Name

No.1023

Note that some functions and settings cannot be used in manual setting

1 as described below.

D No separate detector interface unit can be used.

This means that no separate position detector can be used.

D Set sequential numbers in parameter No. 1023.

For example, 3 cannot be set for an axis without setting 2 for any axis.

D The following servo functions cannot be used:

- Learning control

- High–speed current loop

- Simple electronic gear box (EGB)

G.5

MANUAL SETTING 1
