APPENDIXC. BOOT SYSTEM

B–63665EN/01

406

1 Select the file whose details are required. For example, select “1 NC

BASIC (10).”

2 The numbers of management units in the selected file are listed,

together with the series and edition of the software in each

management unit. After checking the listed data, select the

[SELECT] soft key to return to the file selection screen.

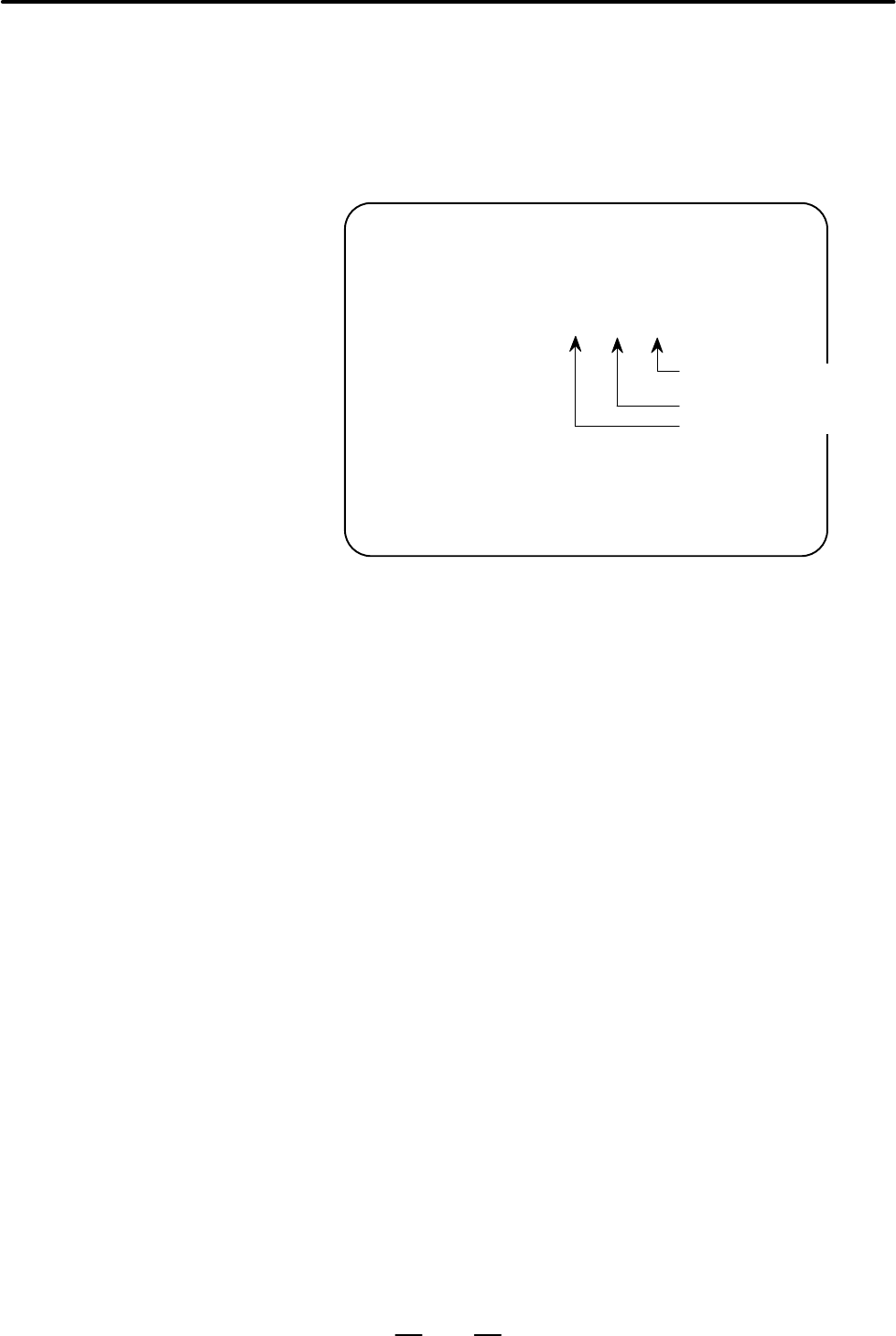

ROM FILE CHECK

NC BASIC

0 B1H1 801A 000

1 B1H1 821A 001

2 B1H1 841A 002

3 B1H1 861A 003

4 B1H1 881A 004

5 B1H1 8A1A 005

6 B1H1 8C1A 006

7 B1H1 8E1A 007

*** MESSAGE ***

HIT SELECT KEY.

Internal management–unit

number

ROM number and edition

Series

0 B1H1 801A 000

Parity information for the system file and user file

The NC BASIC, DGB0SRVO, and other system files in flash ROM

contain parity information in each management unit. If the file name field

or parity field on the check screen contains a non–ASC II character or an

“@” , the flash ROM may have been destroyed or a damaged file may

have been read. Re–read the data from the memory card.

The PMC–SB, PCD 0.5M, and other user files do not contain parity

information in each management unit. A non–ASCII character or an “@”

may appear in the series/edition information. In this case, it does not

indicate that the file has been damaged.

D Operating procedure

D Others
