Series 30i/300i/300is/31i/310i/310is/32i/320i/320is-Model A Additional Manual Page 23

Additional Manual
22 30
EDIT.
FANUC LTD
SHEET
DRAW. NO.
CUST.
TITLE
/
DESCRIPTIONDESIG.DATE
A
-65551EN/01

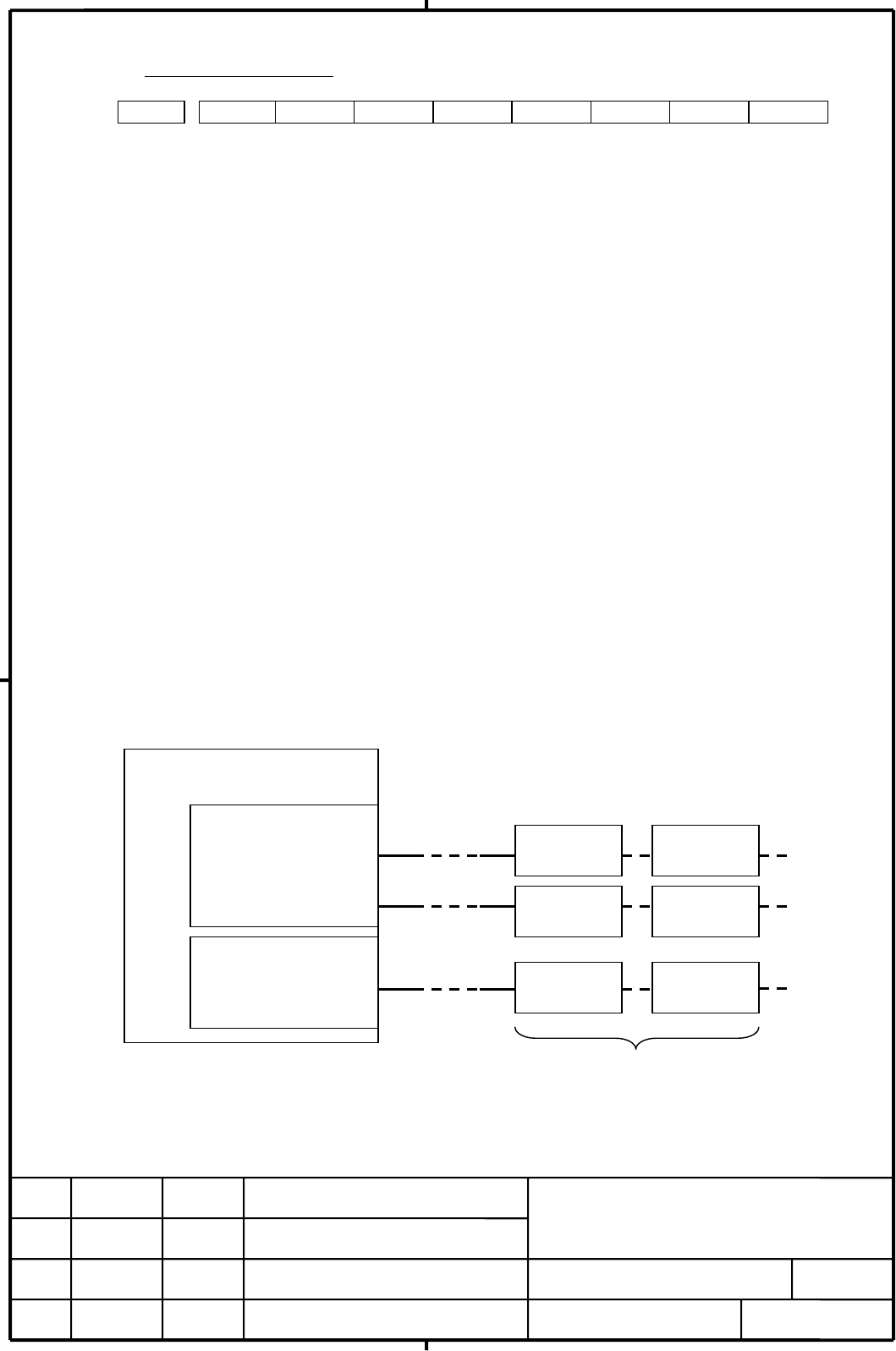

Setting of bit parameter
No. 7 6 5 4 3 2 1 0
1905 PM2 PM1 PM4 PM3
Data type : Bit
PM3 The third interface unit is
0 : Not used
1 : Used
PM4 The fourth interface unit is
0 : Not used
1 : Used
PM1 The first interface unit is
0 : Not used
1 : Used
PM2 The second interface unit is
0 : Not used
1 : Used
The interface unit that is connected to the first FSSB line on a servo card and is near the CNC is
the first interface unit (1st IF unit). Another one connected to the first FSSB line is the second
interface unit (2nd IF unit). An interface unit that is connected to the second FSSB line on a
servo card and is near the CNC is the third interface unit (3rd IF unit). Another one connected to
the second FSSB line is the fourth interface unit (4th IF unit).
The interface unit that is connected to the first FSSB line on an additional axis board and is near
the CNC is the first interface unit (1st IF unit). Another one connected to the first FSSB line is
the second interface unit (2nd IF unit).
CNC
Servo card
COP10A-1
COP10A-2
Additional axis board
COP10A-3
1st IF unit
PM1
2nd IF unit
PM2
3rd IF unit
PM3
4th IF unit
PM4
1st IF unit
PM1
2nd IF unit
PM2
1st FSSB line
2nd FSSB line
3rd FSSB line
Two IF units (max)
