Series 30i/300i/300is/31i/310i/310is/32i/320i/320is-Model A Additional Manual Page 28

Additional Manual
27 30
EDIT.
FANUC LTD
SHEET
DRAW. NO.
CUST.
TITLE
/
DESCRIPTIONDESIG.DATE
A
-65551EN/01

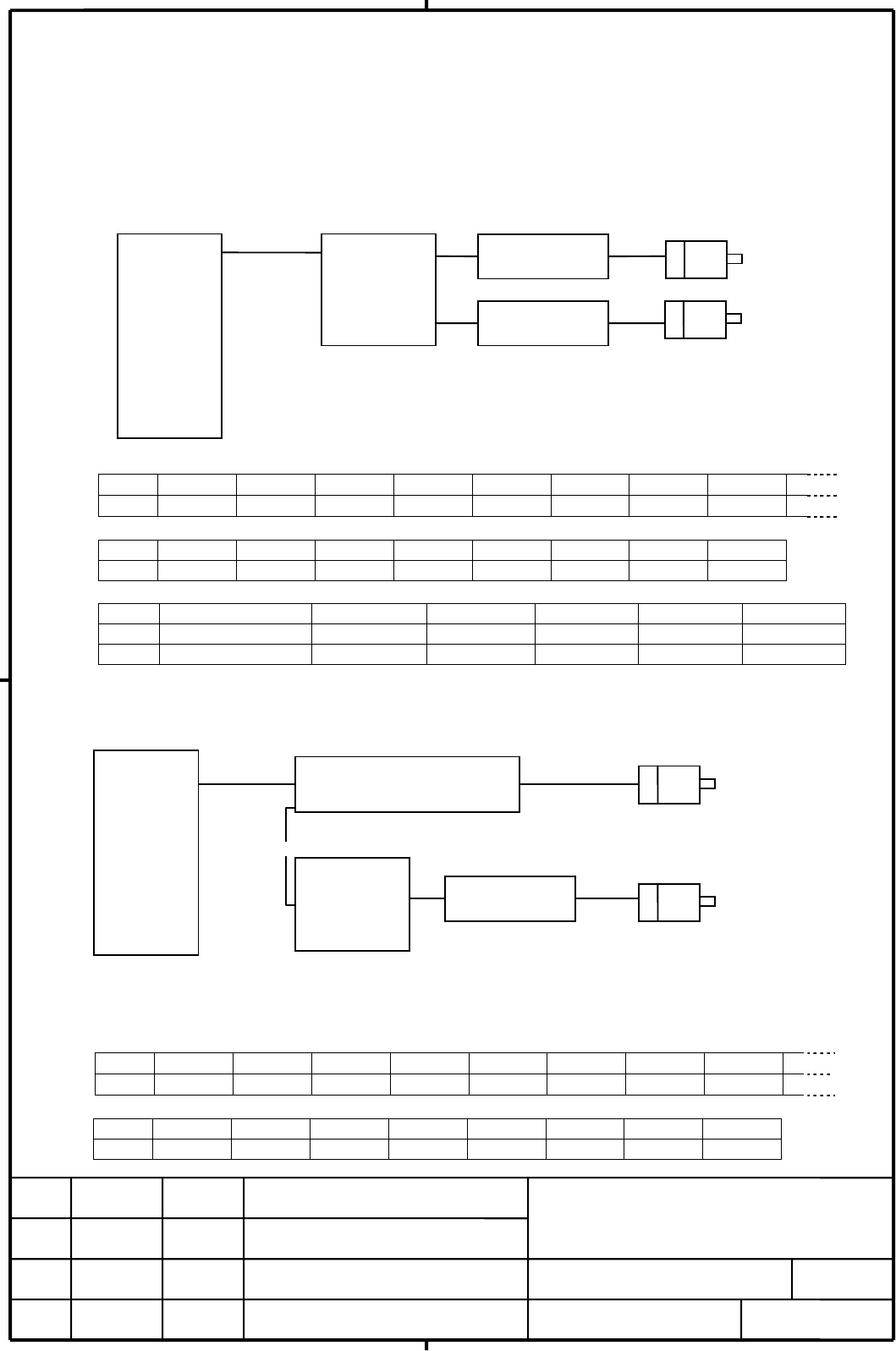

FSSB Setting example in case of using analog servo interface unit
[Example : in case of two analog servo axis]
The analog servo interface unit is slave 1. Analog servo amplifiers are considered as they are
connected after the analog servo interface unit. So they are slaves 2 and 3.
No. 14340 14341 14342 14343 14344 14345 14346 14347
64 0 1 -96 -96 -96 -96 -96
No. 14376 14377 14378 14379 14380 14381 14382 14383
0 1 32 32 32 32 32 32
No. No.1023 No.1905 No.1936 No.1937 No.1938 No.1939
X 1 01000000 0 0 0 0
Y 2 01000000 1 0 0 0
［Example2 : in case of one digital and one analog servo axis］
Digital servo amplifier is slave 1 and analog servo interface unit is slave 2. Analog servo amplifier is
slave 3.
No. 14340 14341 14342 14343 14344 14345 14346 14347
0 64 1 -96 -96 -96 -96 -96
No. 14376 14377 14378 14379 14380 14381 14382 14383
1 32 32 32 32 32 32 32
CNC
FSSB
FSSB
Y
axis
JV11
L
Digital servo amplifier
X axis
Slave 1
Slave 2
Slave 3
A
nalog servo
interface unit
(Basic unit)
A
nalog amplifie
r
CNC
A
nalog servo
amplifier 1
X axis
A
nalog servo
interface unit
(Basic unit)
JV11L
JV12L
Slave 1
Slave 2
Slave 3
A
nalog servo
amplifier 2
Y axis
FSSB
