B-70315EN/02 9.LASER SOFTWARE FUNCTION
- 271 -
9.5 TRIGGER PULSE COMMAND CONTROL FUNCTION
9.5.1 Overview
To simultaneously turn on all discharge tubes when a beam output
command is issued to the laser oscillator, this function increases the
command value by a certain value for a certain time on the rising edge
of the command signal.
When a trigger pulse command becomes valid, the command value
increases by a certain value for a certain time (50 µs) on the rising
edge of the beam output command signal. The increase value and time
are set with the laser interface. Fig. 9.5.1 shows the relationships
between beam command waveforms and trigger pulse control signals.
CW
PULSE
When beam command TRG = 0
When beam command TRG = 1
Trigger pulse command valid Trigger pulse command invalid

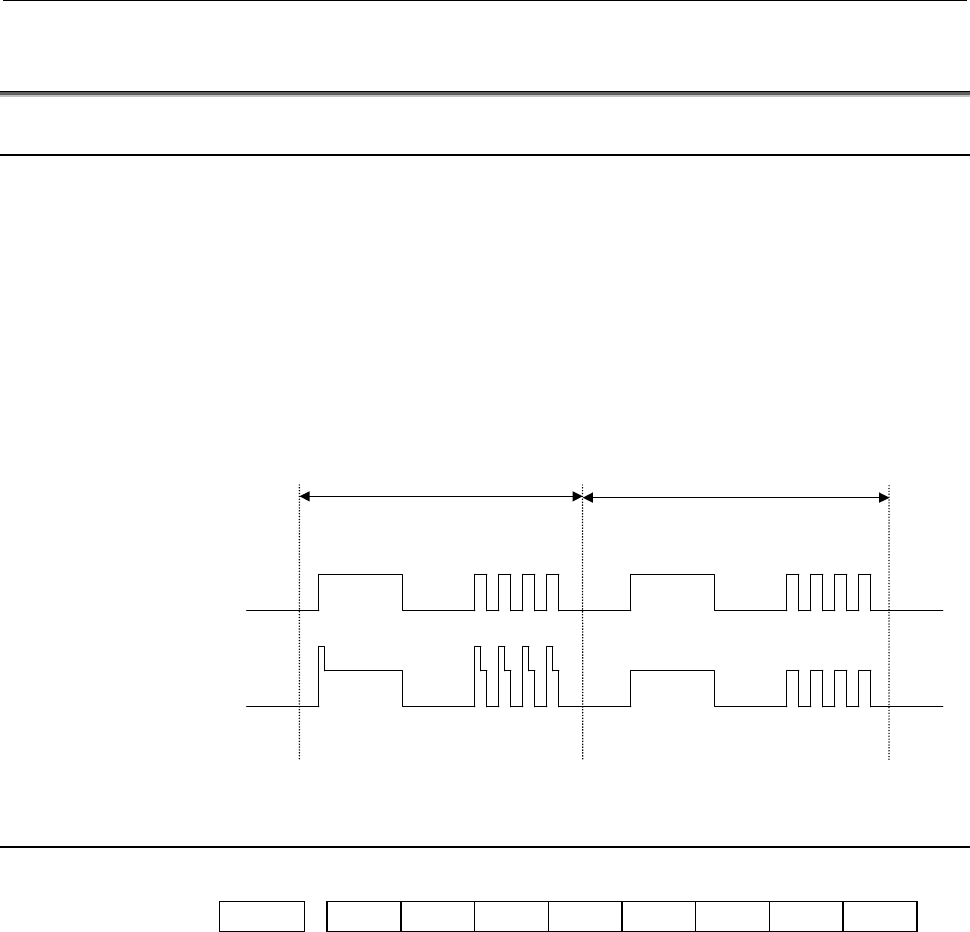

Fig. 9.5.1 Beam command waveforms
9.5.2 Method of Setting
#7 #6 #5 #4 #3 #2 #1 #0
15010 TRG
[Data type] Bit
TRG
0: Disables the trigger pulse command control function.
1: Enables the trigger pulse command control function.
