FANUC Series 30i /31i /32i, Temporary Detaching of Tool Attachment/Detachment Function Additional Manual Page 12

Additional Manual
Edit
Apprv.Desig.
Date
Design
Date
FANUC Series 30
i
/
31
i
/
32
i
-MODEL A
Softkey for switching automatic/manual mode
SPECIFICATIONS
A
-90395E
2006.1.6
12/16
Sheet
Title
Draw
No.
Descri
p
tion
The selection of automatic mode and manual mode
The selection of automatic mode and manual mode is performed by soft key. This time, the
parameter ATA（No.13204#1）or parameter DTA（No.13204#2）are switched to the following
value.
Table 1.1.(b) soft key [AUTO SELECT]/[MANUAL SELECT] and parameter
Tool
attachment/
detachment
Soft key operation
∗
Setting of parameter
Press the soft key
[AUTO SELECT]
（
[AUTO]
）
ATA
（
No.13204#1
）
= 0 Tool
attachment
Press the soft key
[MANUAL SELECT]
（
[MANUAL]
）
ATA
（
No.13204#1
）
= 1
Press the soft key
（
[AUTO]
）
DTA
（
No.13204#2
）
=
０
Tool
detachment
Press the soft key
[MANUAL SELECT]
（
[MANUAL]
）
DTA
（
No.13204#2
）
= 1
∗ The name of the soft key in ( ) is for 7.2 inch, 8.4 inch display unit.
The soft key that is used in the operation of tool attaching/detaching is changed by the setting
of the parameter ATA (No.13204#1) or parameter DTA
（No.13204#2）.

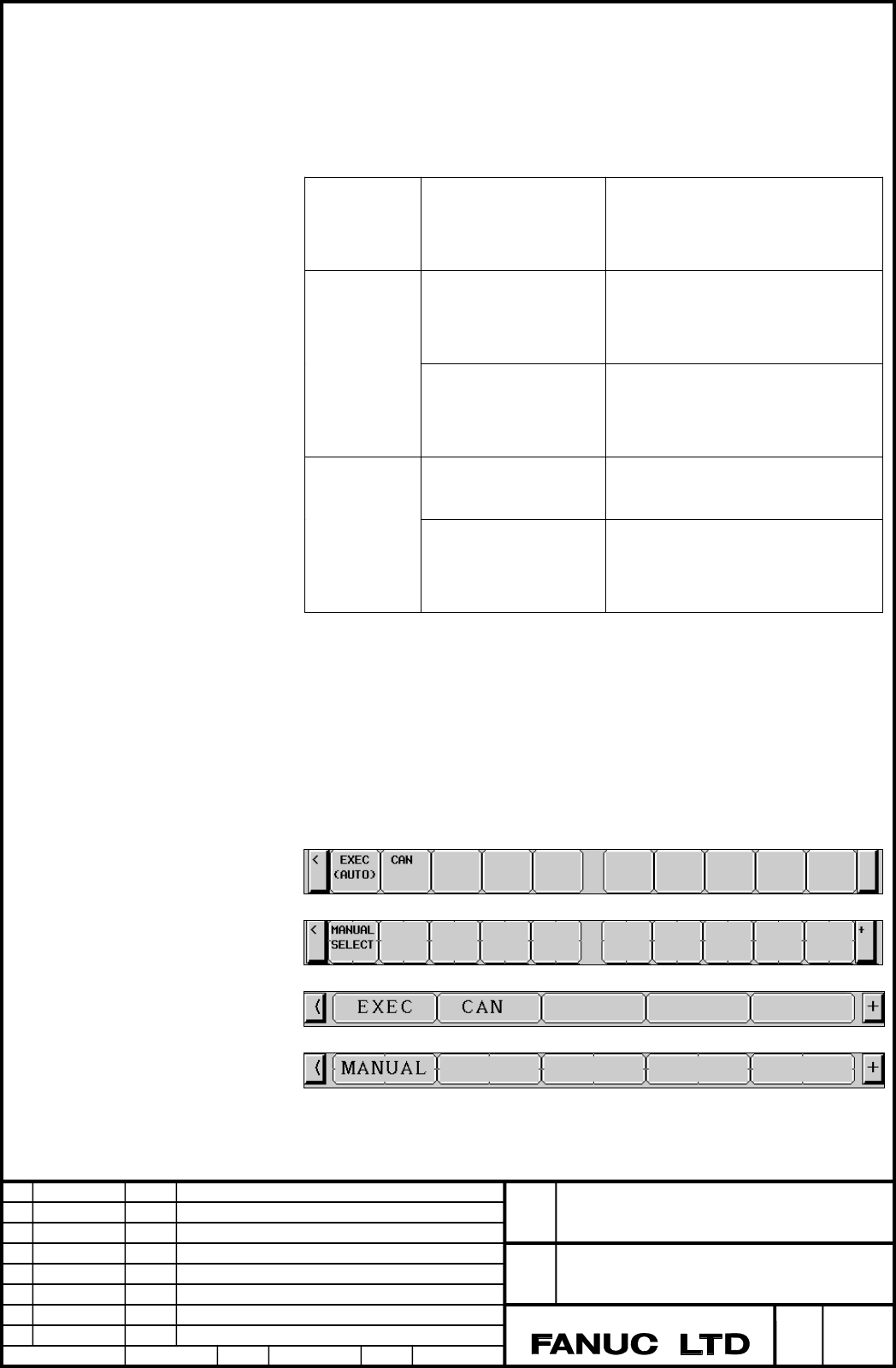

In case of tool attaching
In case of parameter ATA (No.13204#1)= 0, the following soft key appears.
・10.4 inch, 15 inch display unit
・7.2 inch, 8.4 inch display unit
