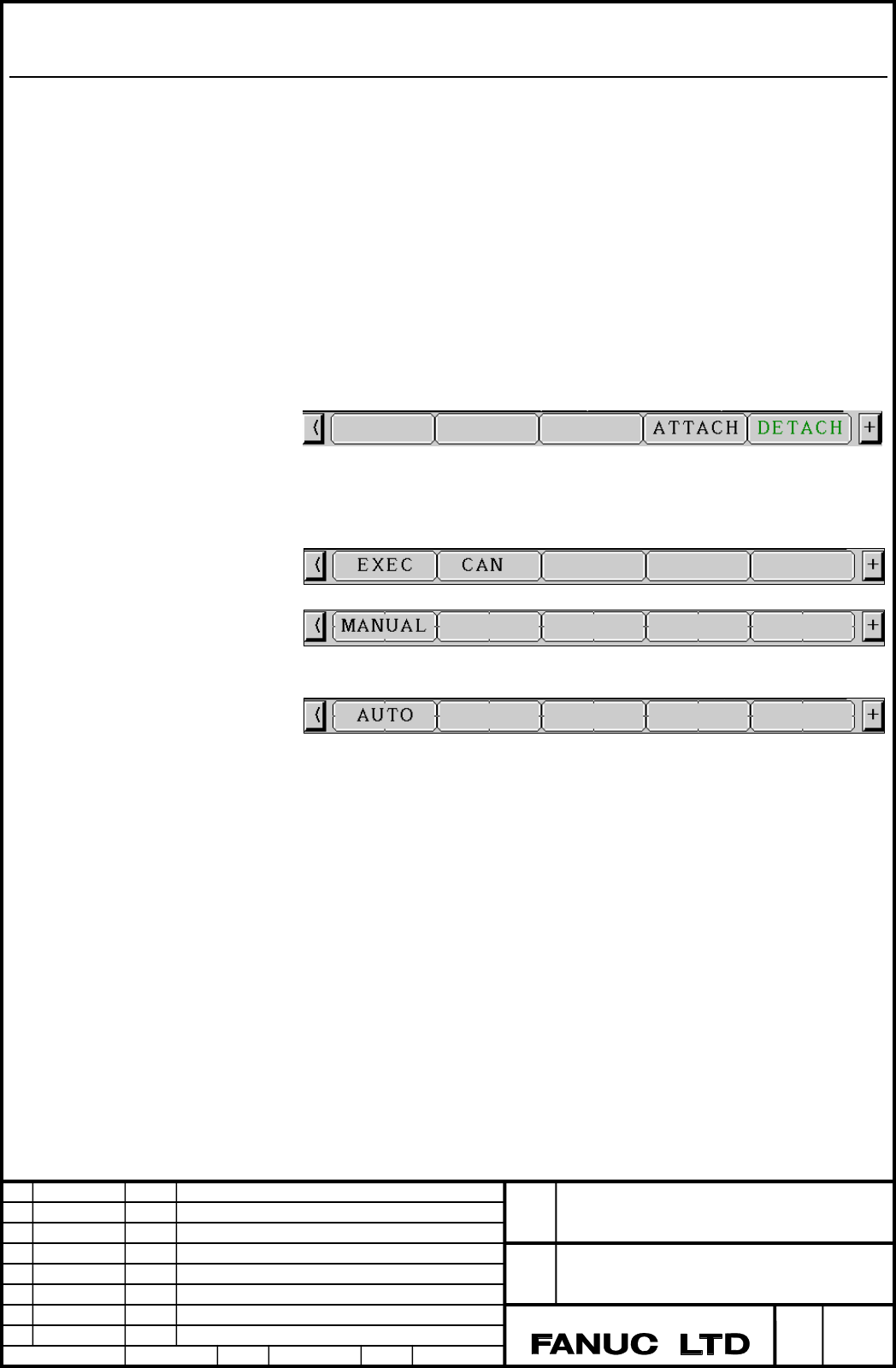

1.1.4 Procedure for 7.2 inch or 8.4 inch display unit
The soft key on the magazine screen can perform the selection for tool attaching or detaching.
Procedure for tool attaching
The tool attaching can be performed with pointing at the empty magazine number or the pod
number on the magazine screen.
The tool attaching is performed in automatic mode or manual mode by following procedure.
In case of tool attaching in automatic mode
1. Display the magazine screen.
2. Move the cursor to the magazine or the pod to which the tool is attached.
3. Press the soft key [(OPER)]. The soft key for operation appears.
4. Press the menu key continuously until the soft key [ATTACH] is displayed.
5. Press the soft key [ATTACH]. The screen for tool attaching appears.
6. Input the tool data of the tool that is attached.
7. After input the tool data, press the soft key [EXEC].
・ When canceling the attaching operation, press the soft key [CAN].
・ When mode is switched to manual mode, press the soft key [MANUAL]
∗ In case of manual mode, the following soft key is displayed. Press the soft key
[AUTO] to switch to automatic mode.
8. Tool attaching is performed in automatic mode.
