  2. FANUC Series 30i /31i /32i, Temporary Detaching of Tool Attachment/Detachment Function

FANUC Series 30i /31i /32i, Temporary Detaching of Tool Attachment/Detachment Function Additional Manual Page 13

Additional Manual
Edit
Apprv.Desig.
Date
Design
Date
FANUC Series 30
i
/
31
i
/
32
i
-MODEL A
Softkey for switching automatic/manual mode
SPECIFICATIONS
A
-90395E
2006.1.6
13/16
Sheet
Title
Draw
No.
Descri
p
tion

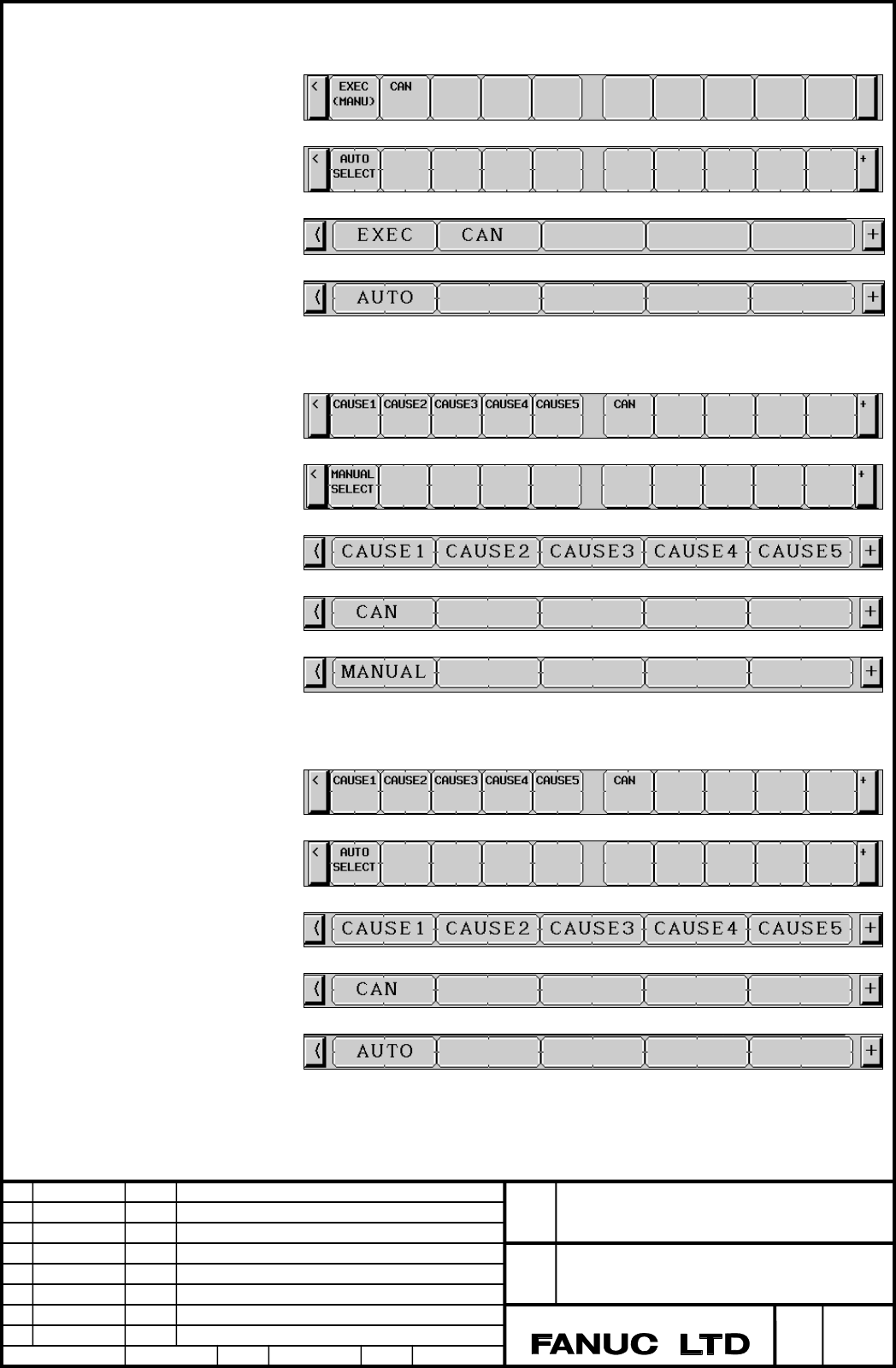

In case of parameter ATA (No.13204#1)= 1, the following soft key appears.
・10.4 inch, 15 inch display unit
・7.2 inch、8.4 inch display unit
In case of tool detaching
In case of parameter DTA (No.13204#2)= 0, the following soft key appears.
・10.4 inch, 15 inch display unit
・7.2 inch, 8.4 inch display unit
In case of parameter DTA (No.13204#2)=1, the following soft key appears.
・10.4 inch, 15 inch display unit
・7.2 inch, 8.4 inch display unit
Previous page
Next page

Contents Summary of FANUC Series 30i /31i /32i, Temporary Detaching of Tool Attachment/Detachment Function Additional Manual

  • Page 1FANUC Series 30i/31i/32i -MODEL A Soft key for switching automatic/manual mode of Tool attachment/detachment function SPECIFICATIONS FANUC Series 30i/31i/32i -MODEL A Title Softkey for switching automatic/manual mode SPECIFICATIONS Draw A-90395E No. Edit Date Design Description Sheet 1/16 Date 2006.
  • Page 2TABLE OF CONTENTS 1.1 TOOL ATTACHMENT/DETACHMENT FUNCTION SOFT KEY FOR SWITCHING AUTOMATIC/MANUAL MODE .................................................................................................................. 3 1.1.1 GENERAL ..................................................................
  • Page 31.1 Tool attachment/detachment function Soft key for switching automatic/manual mode 1.1.1 General The operation of tool attaching or detaching by the tool attachment/ detachment function is executed in the following mode. ・ Automatic mode (Tool attaching and detaching are executed automatically by
  • Page 41.1.3 Procedure on 10.4 inch or 15 inch display unit The soft key on the magazine screen can perform the selection for tool attaching or detaching. Procedure for tool attaching The tool attaching can be performed with pointing at an empty magazine number or a pod number on the magazine screen. The t
  • Page 5In case of tool attaching in manual mode 1. Display the magazine screen. 2. Move the cursor to the magazine or the pod to which the tool is attached. 3. Press the soft key [(OPER)]. The soft key for operation appears. (In case of 15 inch display unit, this operation is not required) 4. Press the sof
  • Page 6Procedure for tool detaching The tool detaching can be performed with pointing at an empty magazine number or a pod number on the magazine screen. The tool detaching is performed in automatic mode or manual mode by following procedure. In case of tool detaching in automatic mode 1. Display the magaz
  • Page 7In case of tool detaching in manual mode 1. Display the magazine screen. 2. Move the cursor to the magazine or the pod to which the tool is detached. 3. Press the soft key [(OPER)]. The soft key for operation appears. (In case of 15 inch display unit, this operation is not required) 4. Press the sof
  • Page 81.1.4 Procedure for 7.2 inch or 8.4 inch display unit The soft key on the magazine screen can perform the selection for tool attaching or detaching. Procedure for tool attaching The tool attaching can be performed with pointing at the empty magazine number or the pod number on the magazine screen. T
  • Page 9In case of tool attaching in manual mode 1. Display the magazine screen. 2. Move the cursor to the magazine or the pod to which the tool is attached. 3. Press the soft key [(OPER)]. The soft key for operation appears. 4. Press the menu key continuously until the soft key [ATTACH] is displayed. 5. Pr
  • Page 10Procedure for tool detaching The tool detaching can be performed with pointing at the empty magazine number or the pod number on the magazine screen. The tool detaching is performed in automatic mode or manual mode by following procedure. In case of tool detaching in automatic mode 1. Display the ma
  • Page 11In case of tool detaching in manual mode 1. Display the magazine screen. 2. Move the cursor to the magazine or the pod to which the tool is detached. 3. Press the soft key [(OPER)]. The soft key for operation appears. 4. Press the menu key continuously until the soft key [DETACH] is displayed. 5. Pr
  • Page 12The selection of automatic mode and manual mode The selection of automatic mode and manual mode is performed by soft key. This time, the parameter ATA（No.13204#1）or parameter DTA（No.13204#2）are switched to the following value. Table 1.1.(b) soft key [AUTO SELECT]/[MANUAL SELECT] and parameter Tool S
  • Page 13In case of parameter ATA (No.13204#1)= 1, the following soft key appears. ・10.4 inch, 15 inch display unit ・7.2 inch、8.4 inch display unit In case of tool detaching In case of parameter DTA (No.13204#2)= 0, the following soft key appears. ・10.4 inch, 15 inch display unit ・7.2 inch, 8.4 inch display
  • Page 14Tool attaching and detaching in the automatic mode When the tool attaching is performed in auto mode, “TOOL_IN” is blinked at the right bottom on the magazine management screen. This time, if following operation is performed, the warning message ” Now attaching” is displayed and the operation is pro
  • Page 151.2 Parameter #7 #6 #5 #4 #3 #2 #1 #0 13204 TSM DTA ATA [Input type] Parameter input [Data type] Bit #1 ATA The Signals TLATA/TLMZN00 to 15/TLPOT00 to 15 0 : USE (Auto attachment) 1 : NOT USE (Manual attachment) #2 DTA The Signals TLDTA/TLMZN00 to 15/TLPOT00 to 15 0 : USE (Auto detachment) 1 : NOT U
  • Page 161.3 Alarm and massage Warning message Message Content Now attaching During the attaching operation in automatic mode, the following operation is performed. ・ Tool attaching ・ Tool detaching ・ Editing of tool management data ・ Editing of magazine management data Now detaching During the attaching ope
