  2. FANUC Series 30i /31i /32i, Temporary Detaching of Tool Attachment/Detachment Function

FANUC Series 30i /31i /32i, Temporary Detaching of Tool Attachment/Detachment Function Additional Manual Page 5

Additional Manual
Edit
Apprv.Desig.
Date
Design
Date
FANUC Series 30
i
/
31
i
/
32
i
-MODEL A
Softkey for switching automatic/manual mode
SPECIFICATIONS
A
-90395E
2006.1.6
5/16
Sheet
Title
Draw
No.
Descri
p
tion
In case of tool attaching in manual mode
1. Display the magazine screen.
2. Move the cursor to the magazine or the pod to which the tool is attached.
3. Press the soft key [(OPER)]. The soft key for operation appears.
(In case of 15 inch display unit, this operation is not required)
4. Press the soft key [TOOL ATTACH]. The screen for tool attaching appears.
5. Input the tool data of the tool that is attached.
6. After input the tool data, press the soft key [EXEC(AUTO)]
・ When canceling the attaching operation, press the soft key [CAN].
・ When mode is switched to manual mode, press the soft key [MANUAL SELECT]

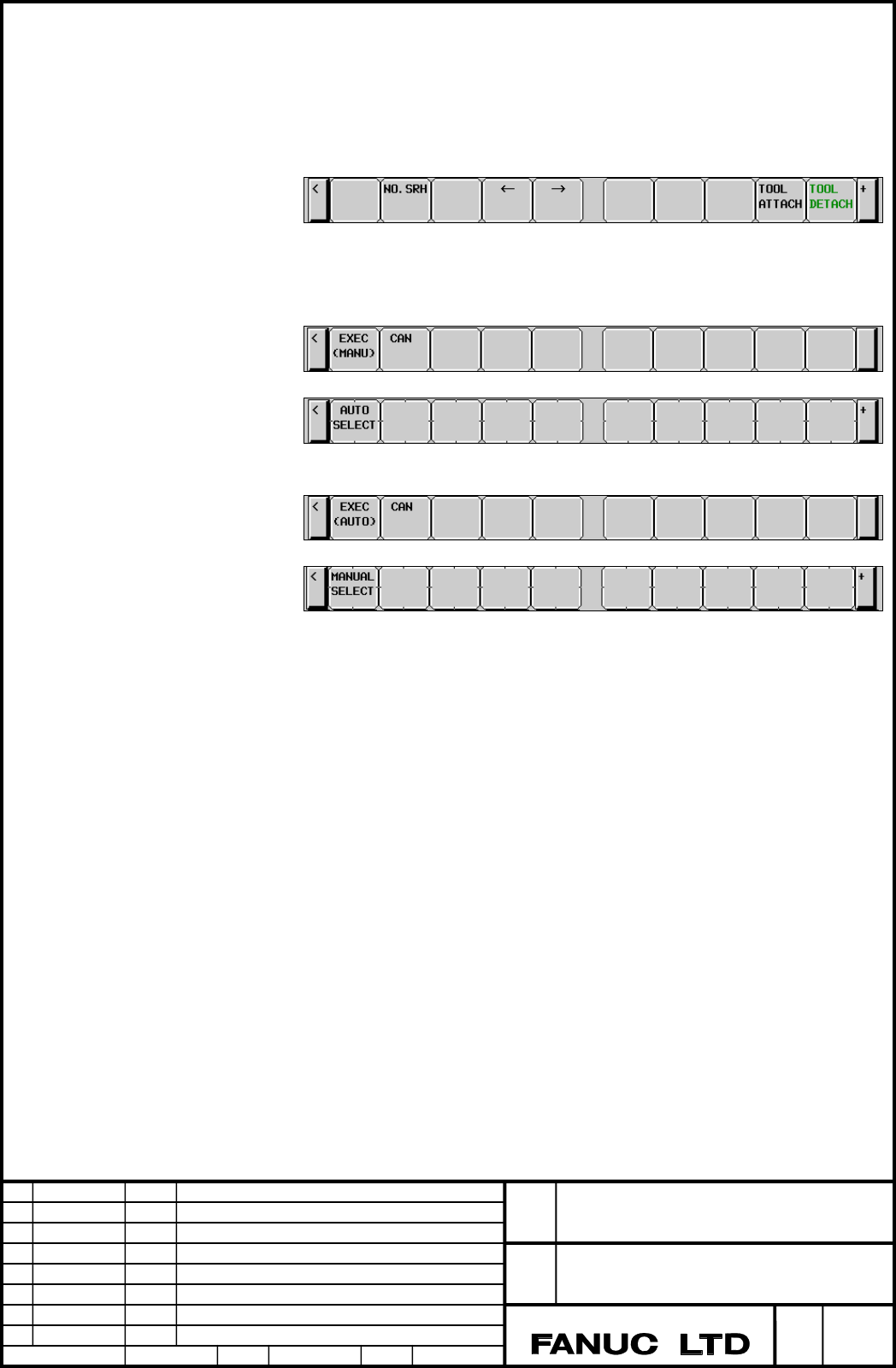

∗ In case of automatic mode, the following soft key is displayed. Press the soft key
[MANUAL SELECT] to switch to manual mode.
7. Tool attaching is performed in manual mode.
