Procedure for tool detaching
The tool detaching can be performed with pointing at an empty magazine number or a pod
number on the magazine screen.
The tool detaching is performed in automatic mode or manual mode by following procedure.
In case of tool detaching in automatic mode
1. Display the magazine screen.
2. Move the cursor to the magazine or the pod to which the tool is detached.
3. Press the soft key [(OPER)]. The soft key for operation appears.
(In case of 15 inch display unit, this operation is not required)

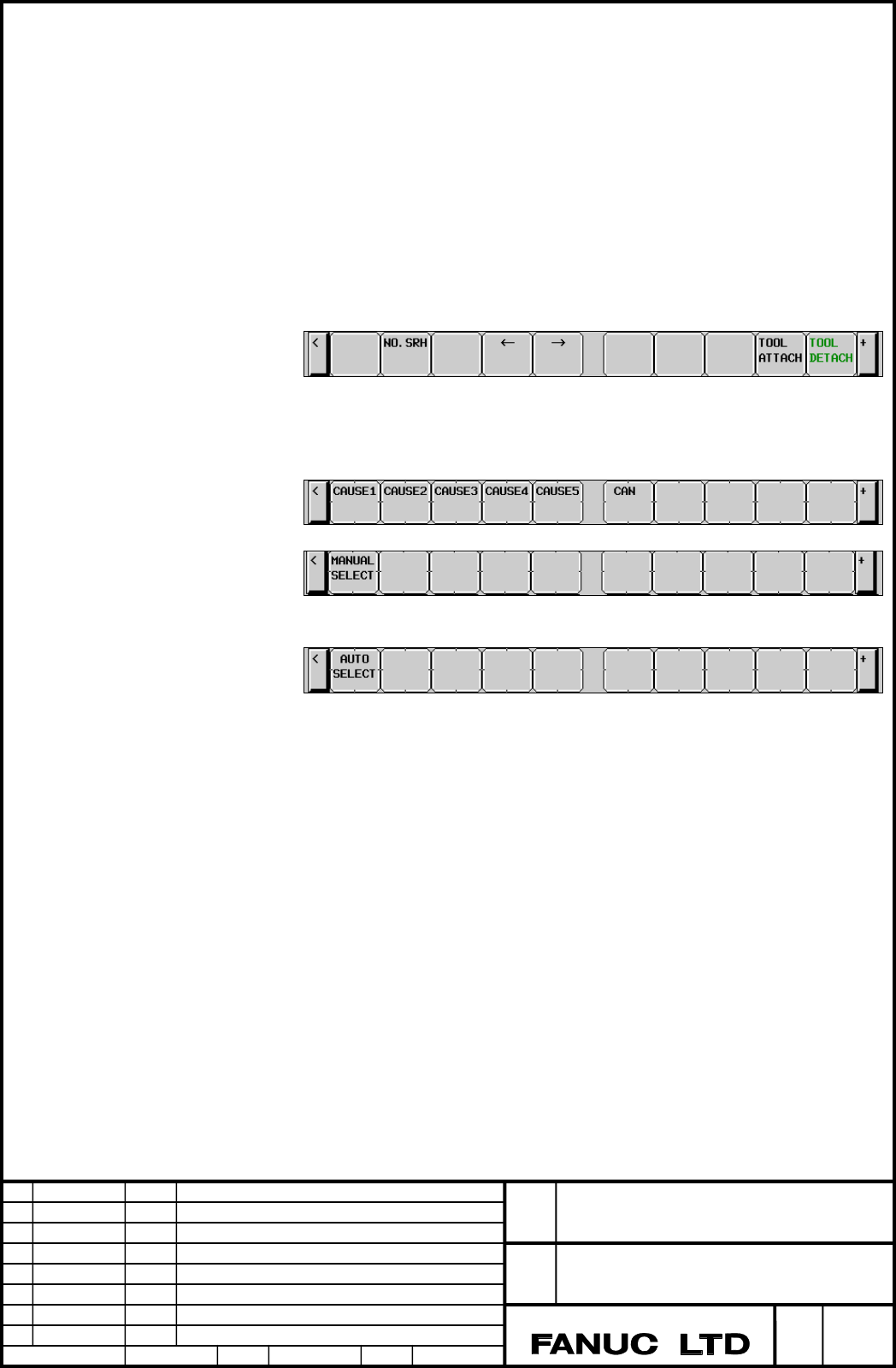

4. Press the soft key [TOOL DETACH].
5. Select the cause of detaching.
・ When canceling the detaching operation, press the soft key [CAN].
・ When mode is switched to manual mode, press the soft key [MANUAL SELECT]
∗ In case of manual mode, the following soft key is displayed. Press the soft key
[AUTO SELECT] to switch to automatic mode.
6. Tool detaching is performed in automatic mode.
