FANUC Series 30i/31i/32i Additional Manual Page 3

Additional Manual
Edit
Apprv.Desig.
Date
Design
Date
FANUC Series 30
i
/31
i
/32
i
–MODEL A
IMPROVEMENT OF FILE OPERATION
ON THE PROGRAM FOLDER SCREEN
A
-90423E
Nov.30.2005
3/12
New design
Nov.30.2005
01
Page
Title
Draw
No.
Descri
p
tion
Separate Display Switching Procedure
Procedure
・ For the 10.4-inch monitor screen
1 Press function key
PROG
to display the program folder screen.
2 Press soft key [(OPRT)].
3 Press rightmost soft key [+] (continuous menu key) twice.
Soft key [MULTI LIST] appears.

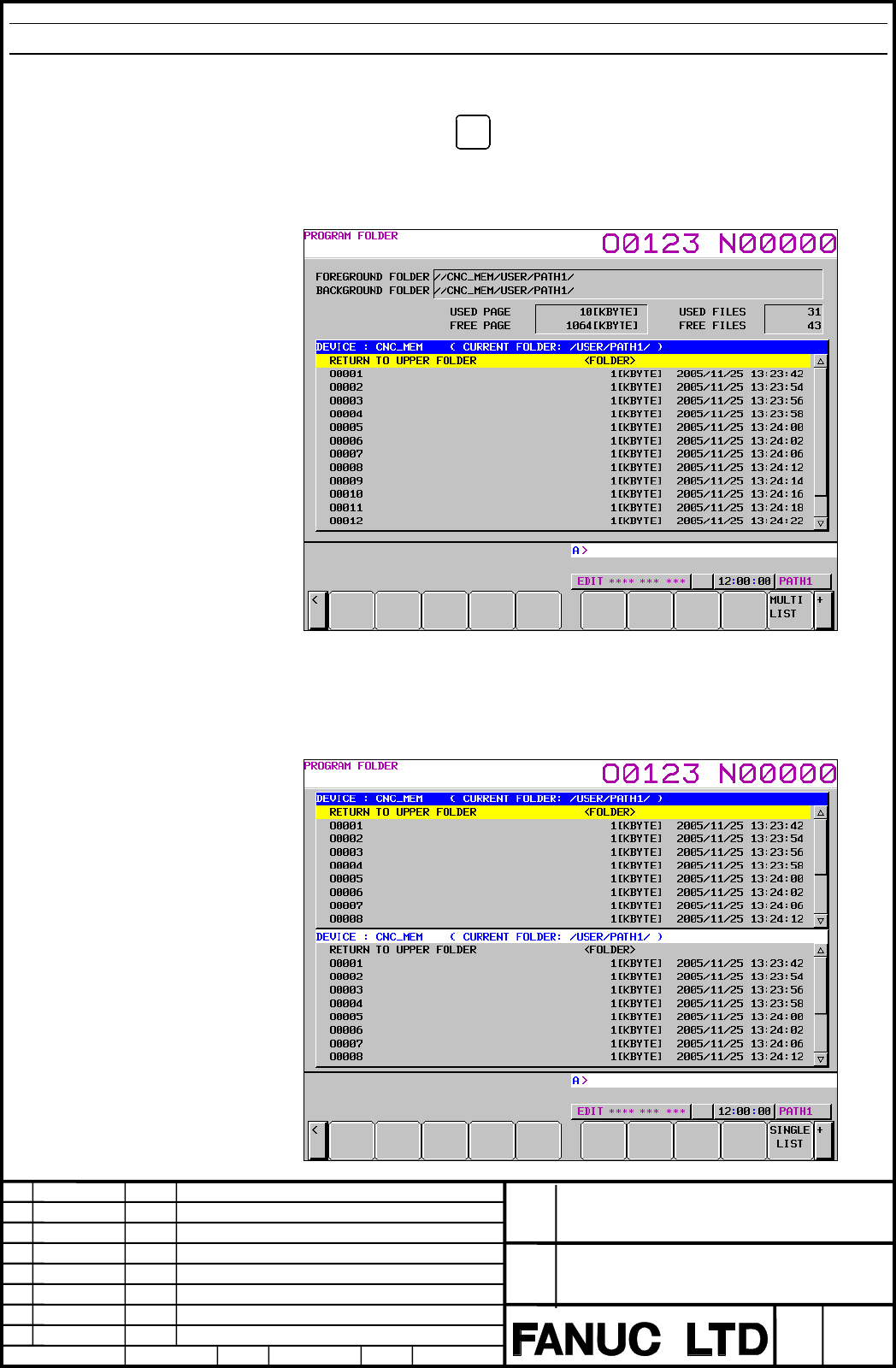

Fig. 1.1 (b) Program Folder Screen (Normal Screen)
4 Press soft key [MULTI LIST].
The folder information display is horizontally separated into two views, both of which
indicate the same folder information. Immediately after separation, the above folder
view is operable. At this time, soft key [SINGLE LIST] appears.
