FANUC Series 30i/31i/32i Additional Manual Page 7

Additional Manual
Edit
Apprv.Desig.
Date
Design
Date
FANUC Series 30
i
/31
i
/32
i
–MODEL A
IMPROVEMENT OF FILE OPERATION
ON THE PROGRAM FOLDER SCREEN
A
-90423E
Nov.30.2005
7/12
New design
Nov.30.2005
01
Page
Title
Draw
No.
Descri
p
tion
Explanation
・File operation in separate display
In separate display, the following operations are enabled.
<1> A different device or folder can be selected or displayed for each folder view.
<2> Files can be copied or moved between the folders selected in two folder views. (For
details, see Section 1.2, "FILE COPY OR MOVEMENT BETWEEN DEVICES".).
In the selected folder view, the same operation as with the normal screen can be performed.
・Path switching
When path switching is performed in separate display for a multipath system, the folder view
in which CNC MEM is selected as the device is switched to the folder that was last selected
for each path on CNC MEM.
・Device information display
Device information displayed on the normal program folder screen (enclosed by the dotted
line below) is not displayed in separate display.

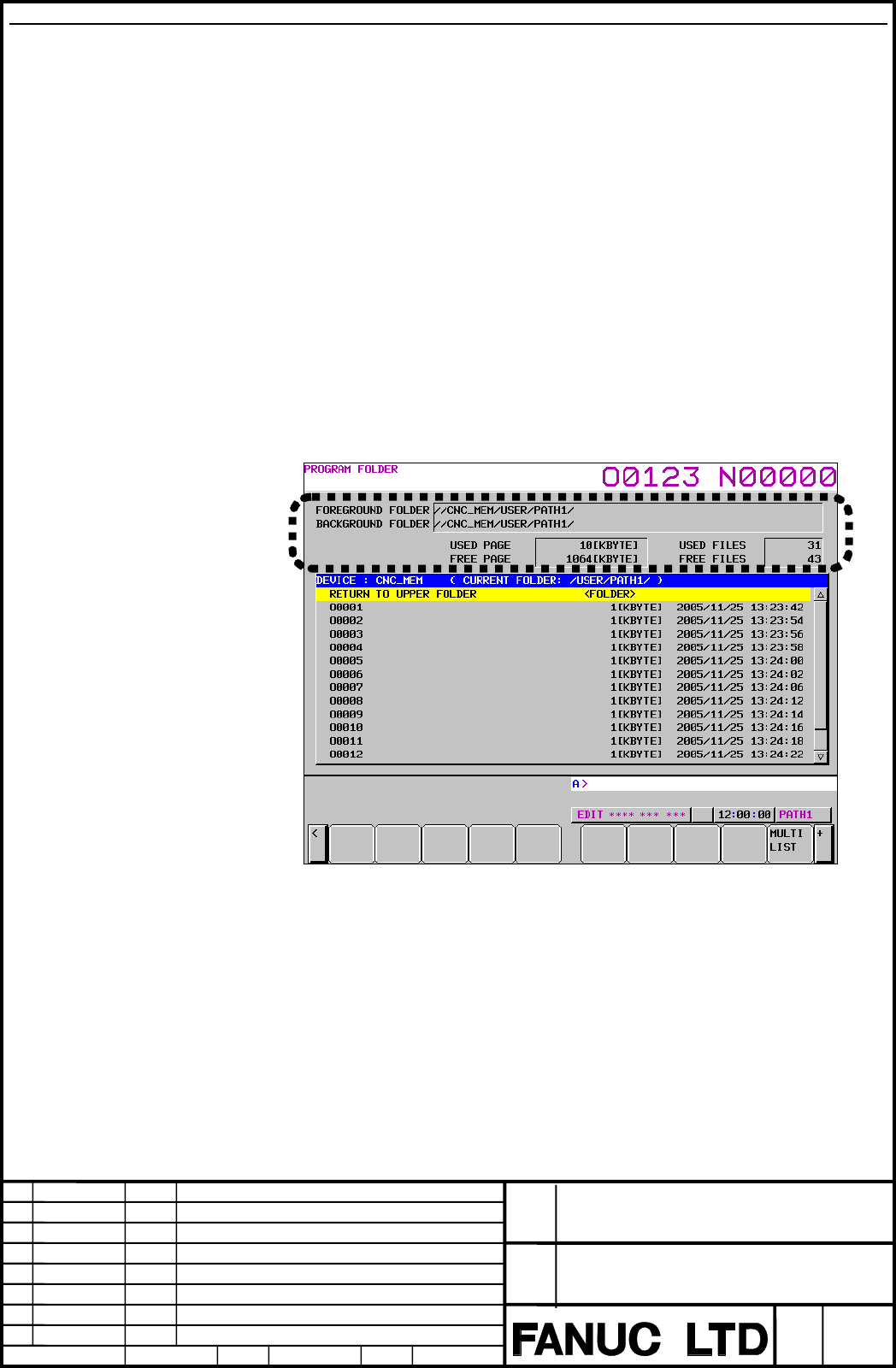

Fig. 1.1 (f) Program Folder Screen (Normal Screen)
To refer to device information, use the normal screen.
