IMPROVEMENT OF FILE OPERATION
ON THE PROGRAM FOLDER SCREEN
A
-90423E
Nov.30.2005
5/12
New design
Nov.30.2005
01
Page
Title
Draw
No.
Descri
p
tion
・ For the 15-inch monitor screen
1 Press function key
PROG
to display the program folder screen.
2 Press horizontal soft key [(OPRT)].
3 Press rightmost horizontal soft key [+] (continuous menu key) twice.
Horizontal soft key [MULTI LIST] appears.

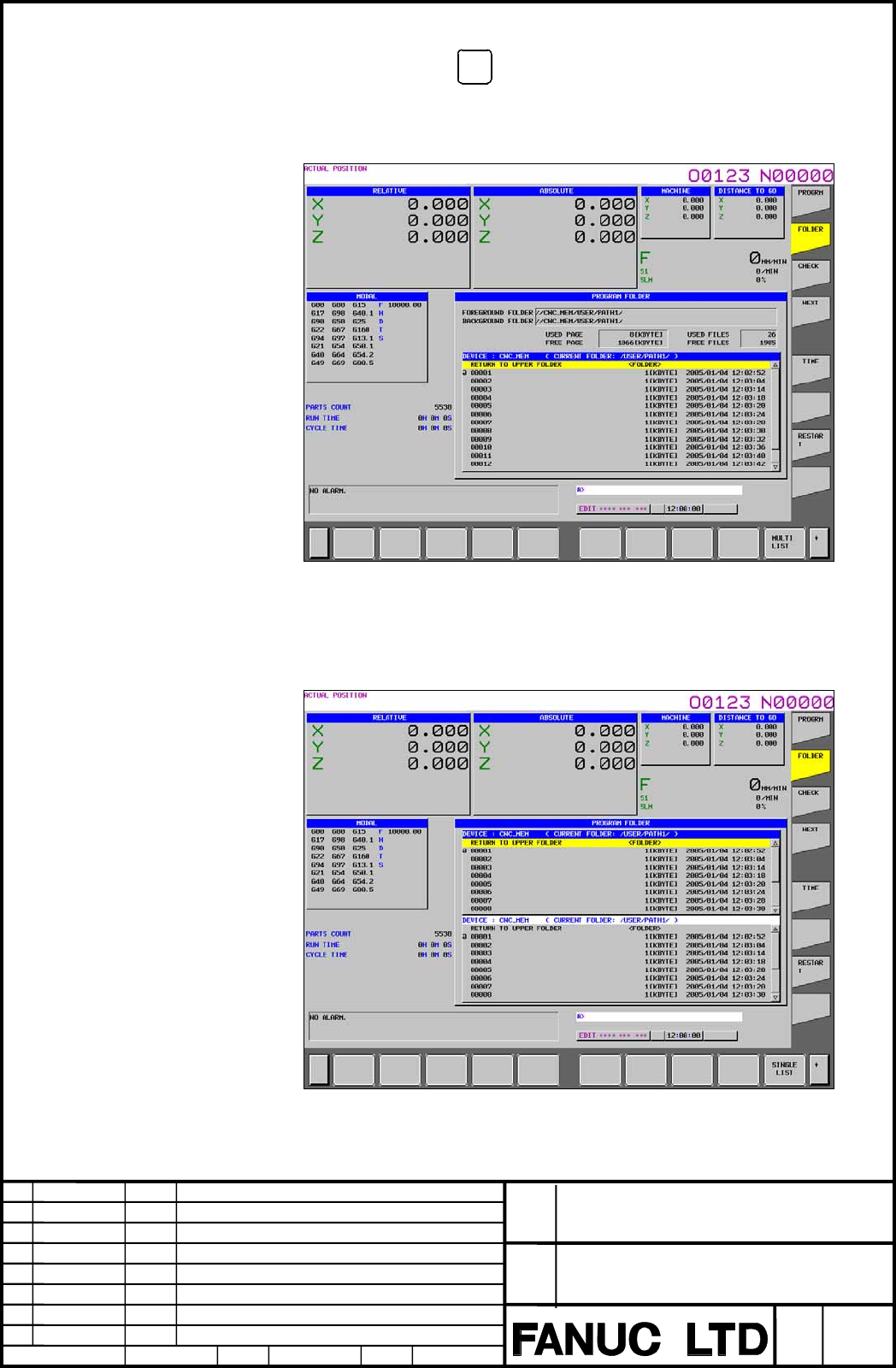

Fig. 1.1 (d) Program Folder Screen (Normal Screen)
4 Press horizontal soft key [MULTI LIST].
The screen is separated into two folder information views, both of which indicate the
same folder information. Immediately after separation, the above folder view is
operable. At this time, horizontal soft key [SINGLE LIST] appears.
Fig. 1.1 (e) Program Folder Screen (Separate Display Screen)
5 Press horizontal soft key [SINGLE LIST] to return to the original program list display.
At this time, the folder selected as operable in separated display is indicated.
