B-65282EN/05 9.CONNECTION
- 159 -

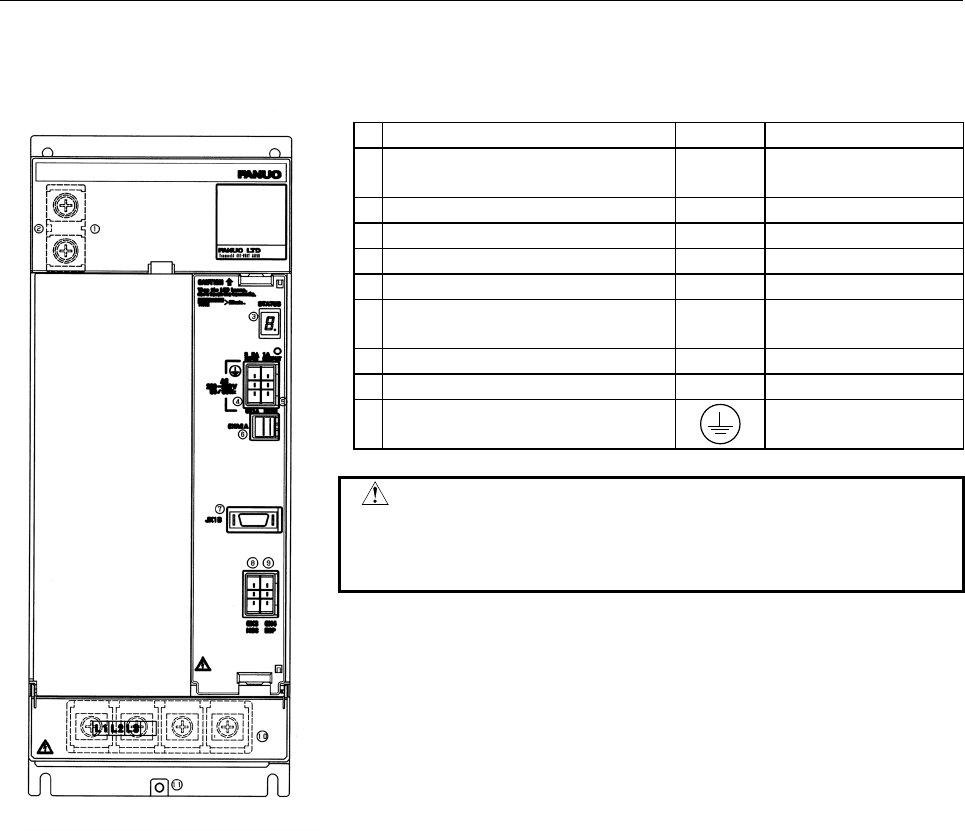

PSM-26i, PSM-30i, PSM-37i, PSM-30HVi, PSM-45HVi
Table.9.2.1(c) Names of connectors and terminal blocks
Names Display Remarks
1 DC link terminal block
Display the terminal
block TB1
2 DC link charge LED (Warning)
3 Status LED STATUS
4 200VAC input connector CX1A
6 Output connector for PSM interface CXA2A 24VDC power supply
8
Connector for main power MCC
control signal
CX3
9 Connector for ESP signal CX4
10 Terminal block for motor power line TB2
11
Tapped hole for grounding the
flange
WARNING
Do not touch module components or connected
cables while this LED is lit. There is a danger of
electric shock.
