13. FUNCTIONS TO SIMPLIFY

PROGRAMMING

B–64112EN/01

NC FUNCTION

126

G71 U(∆d) R(e) ;

G71 P(ns)

Q(nf) U(∆u) W(∆w) F(f) S(s) T(t) ; (ns)

N(ns) . . . . .

. . . . . . . . . . .

F_. . . . . . .

S_. . . . . . .

T_. . . . . . .

N(nf) ;. . . . . .

A block between sequence numbers ns and nf

specifies the target figure between A and B.

∆d : Depth of cut. It is specified without sign. The cutting direction

is determined by the direction of AA’.

e : Clearance

ns : Sequence number of the first block of target figure blocks

nf : Sequence number of the end block of the target figure

blocks

∆u : Distance and direction of finishing allowance along X axis

∆w : Distance and direction of finishing allowance along Z axis

f, s, t : The F, S, and T specified by a block between ns and nf are

ignored during cycle operation. Those specified by the block

of G71 or before are effective.

F, S, and T in the blocks of move commands from A to B are ignored and

those specified in the same block as G71 or before are effective.

G96s (constant surface speed control on) and G97s (constant surface

speed control off) in the blocks of move commands from A to B are

ignored. A G96 or a G97 commanded in the same block as G71 or before

is effective. The following four patterns are given depending on the sign

of ∆U and ∆W as in the figure below. All of these cutting cycles are made

parallel to Z axis.

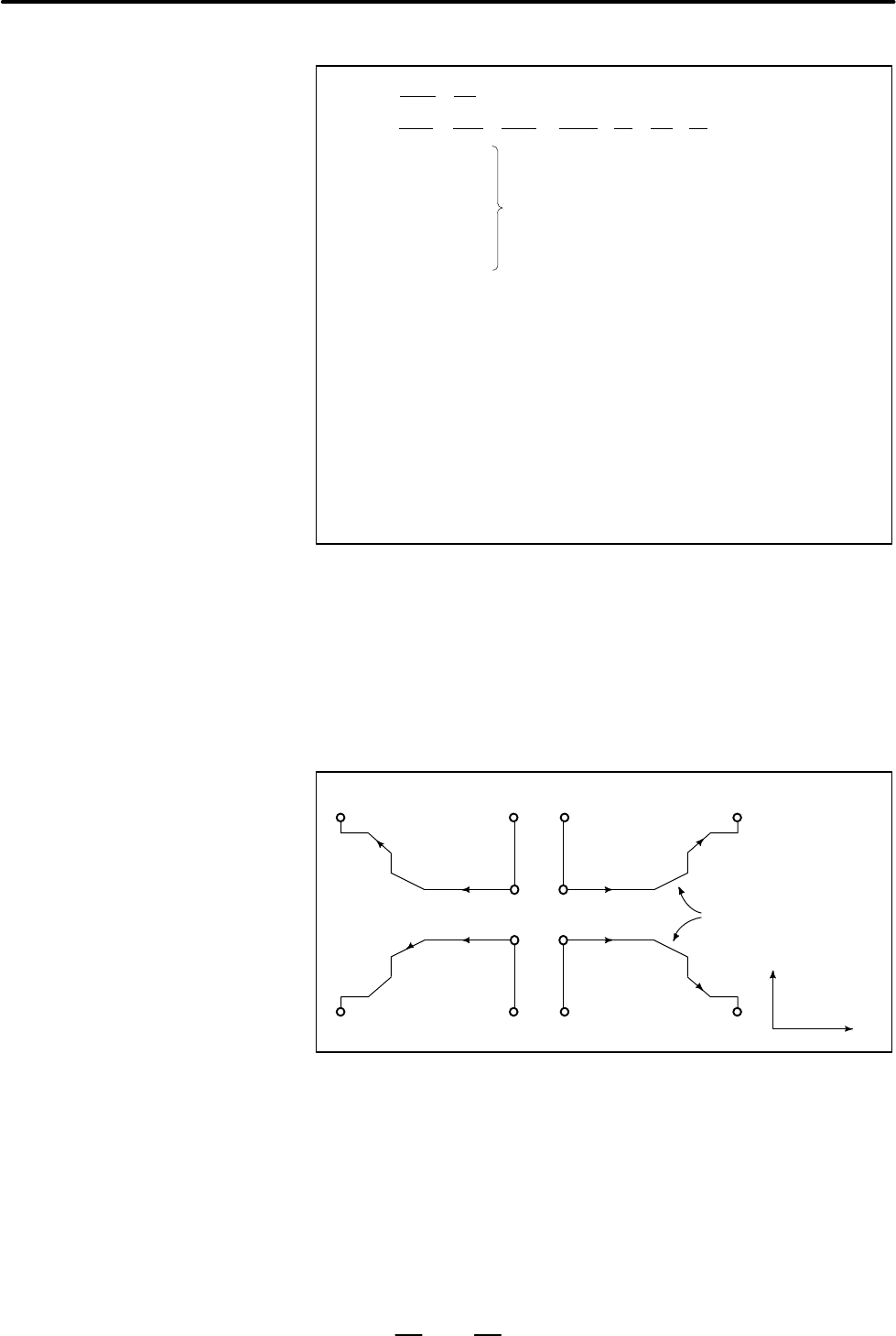

A’

U(+)…W(+)

Both linear and

circular interpolation

are possible.

U(–)…W(+) U(–)…W(–)

U(+)…W(–)

For the path from A to A’, the block of sequence number ns specifies a

command including G00 or G01. For the path A’ to B, increase or decrease

must be steady in both X-axis and Z-axis directions.

If the command for the path from A to A’ is G00, the cutting along the path

is performed in the G00 mode. If the command for the path from A to A’

is G01, the cutting is performed in the G01 mode.

Format
