B–64112EN/01

NC FUNCTION34. FUNCTIONS FOR PUNCH PRESS

310

Program 1

G90X100Y100 ;

G70X200Y200 ;

G26I50JOK4 ;

Program 2

G90X100Y100 ;

G72X200Y200 ;

G26I50J0K4 ;

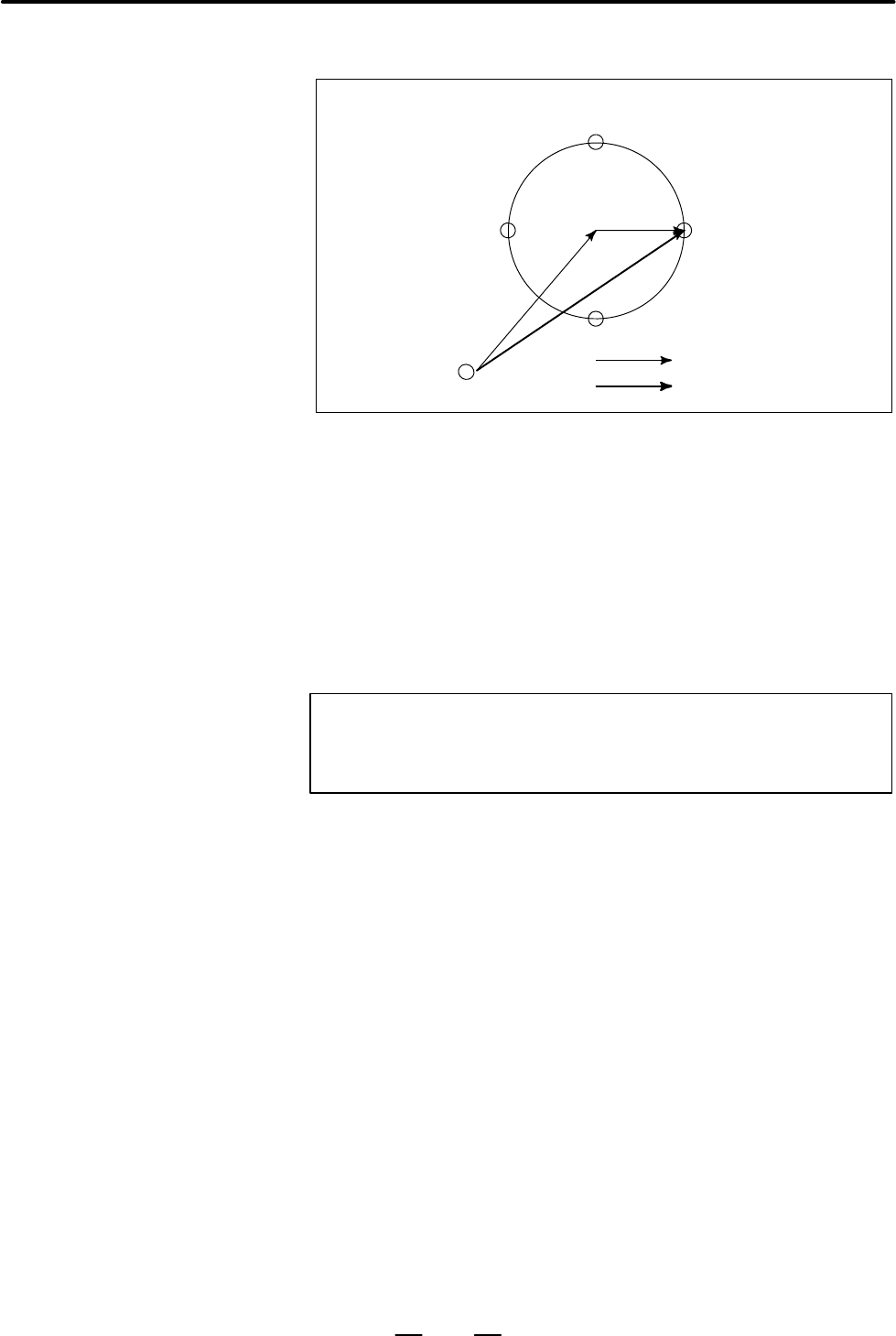

Tool movement by program 1

Tool movement by program 2

G72X– Y– ;

An under–mentioned coordinates values can be instructed by an

above–mentioned command.

(1)Center point of Bolt hole circle (G26), Arc (G77), Circular nibblint

(G68), Radius (G88)

(2)Starting point of the line at angle (G76), grid (G78, G79), linear

nibbling (G69), cut at angle (G89), share proof (G86), and square

(G87)

G72 only designates the pattern base point; it does not move a tool.

CAUTION

M code, T code, and S code can not be specified in the same

block as G72.

34.6

PATTERN BASE

POINT COMMAND

(G72)
