21. AXIS CONTROL

B–64112EN/01

NC FUNCTION

214

For T series, even if the X axis is not vertical to the Z axis (for T series,

the Y axis not vertical to the Z axis), they are assumed to form a

orthogonal coordinate system, simplifying programming. The movement

of each axis is automatically controlled according to the slant angle.

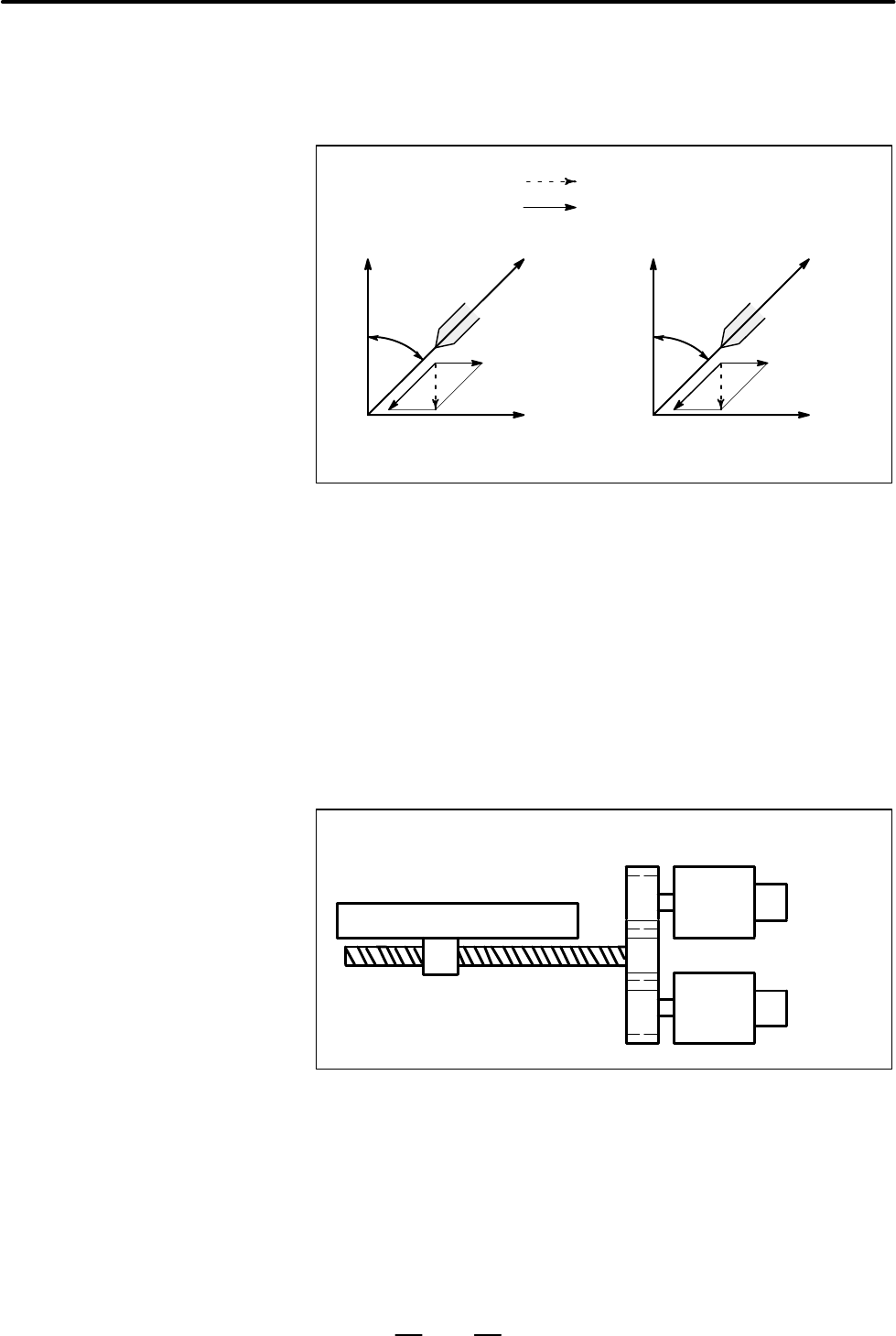

X’

Y’

For T series For M series

Command

Machine movement

With arbitrary angular axis control, however, any axes can be specified

as the angular and perpendicular axes, by specifying parameters

accordingly.

When enough torque for driving a large table cannot be produced by only

one motor, two motors can be used for movement along a single axis.

Positioning is performed by the main motor only. The sub motor is used

only to produce torque. With this tandem control function, the torque

produced can be doubled.

Table

Ball screw

Main motor

Sub motor

Example of operation

In general, the CNC regards tandem control as being performed for one

axis. However, for servo parameter management and servo alarm

monitoring, tandem control is regarded as being performed for two axes.

21.10

ANGULAR AXIS

CONTROL

21.11

ARBITRARY

ANGULAR AXIS

CONTROL

21.12

TANDEM CONTROL
