29. DATA INPUT/OUTPUT

B–64112EN/01

NC FUNCTION

272

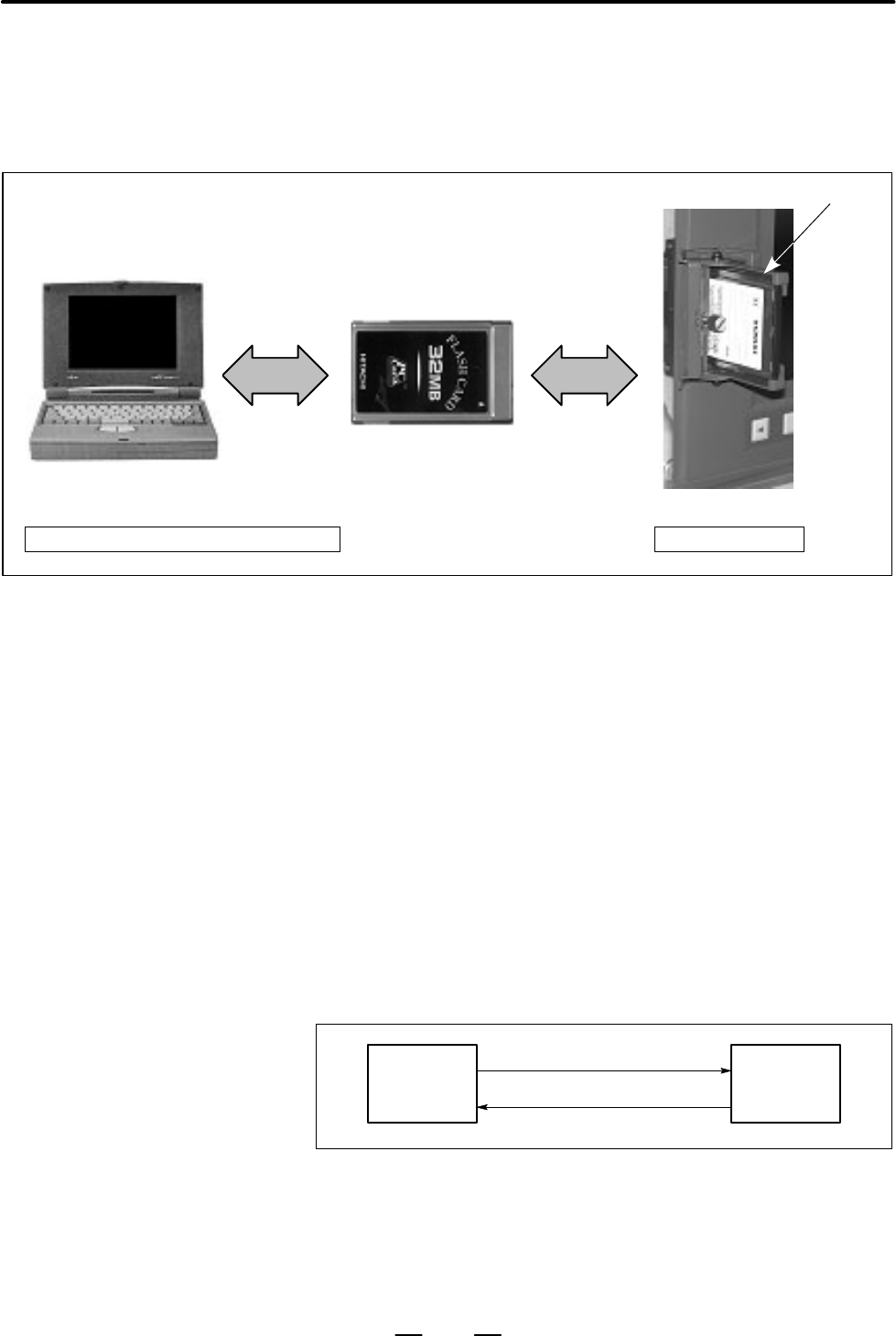

To perform DNC operation, load a machining program created on a PC

onto a memory card and then inserting the memory card into the PCMCIA

port on the front of the monitor.

During DNC operation, secure the memory card with the fixing bracket.

Memory card

CNC

Fixing bracket

Creation of a machining program DNC operation

The FANUC DNC2 is a communication protocol enabling data

transmission between the FANUC CNC unit and a personal computer by

connecting them via the RS–232C interface.

The FANUC DNC2 has the following features:

(1)This protocol is based on the communication protocol LSV2 used by

some CNC manufacturers in Europe, so that software can easily be

established even with a personal computer.

The RS–232C interface is used to connect a personal computer with

the FANUC CNC. The RS–422 interface can also be used to improve

the transmission rate.

(2)This protocol is used for one–to–one (point–to–point) communication

between one FANUC CNC unit and one personal computer.

The protocol cannot provide multi–point communication between one

personal computer and more than one CNC unit.

Personal

Computer

CNC

Command / Response

Response / Command

29.5

DNC OPERATION

WITH MEMORY

CARD

29.6

DNC2 CONTROL
