B–64112EN/01

14. TOOL COMPENSATION FUNCTION

NC FUNCTION

157

The tool geometry compensation function compensates the tool figure or

tool mounting position. The tool wear compensation function

compensates the wear of a tool tip. These compensation amounts (offset

values) can be set separately. There are two types of geometry

compensation: So–called geometry compensation and the second

geometry compensation that allows the user to specify whether to use the

direction directed by the PMC. The second geometry compensation is

used to compensate for the difference in tool mounting position or

selected position. If distinction between them is not necessary, the total

value of them is set as a tool position offset value.

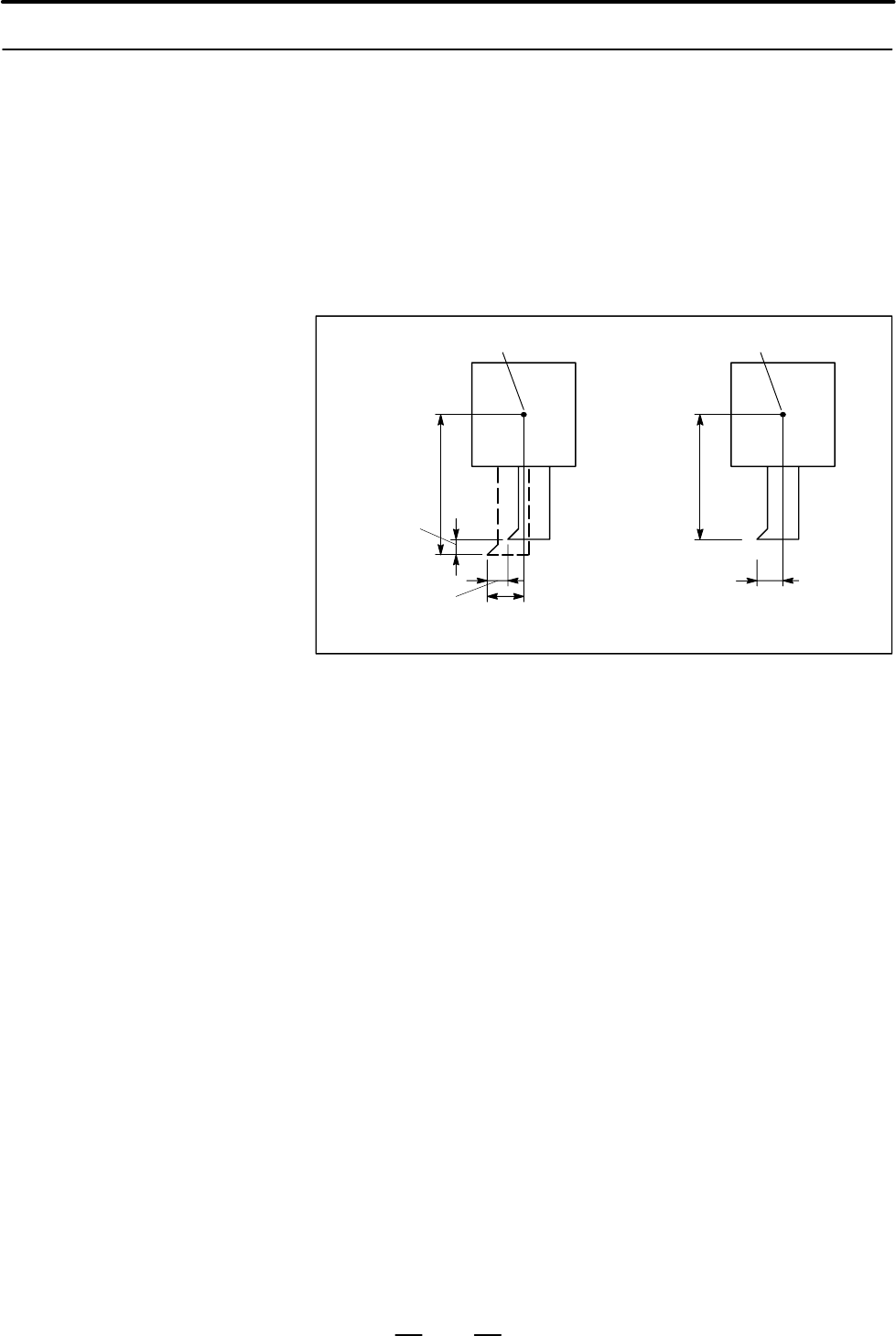

Z-axis wear

offset value

Z-axis geometry

offset value

X-axis wear

offset value

X-axis

geometry

offset

value

Point in the program

Tool geometry compensation

distinguished from tool wear

compensation

Point in the program

X-axis

offset

value

Z-axis offset value

Tool geometry compensation

and tool wear compensation

not distinguished

14.1.2

Tool Geometry

Compensation and

Tool Wear

Compensation
