14. CNC DISPLAY UNIT WITH PC FUNCTIONS

289

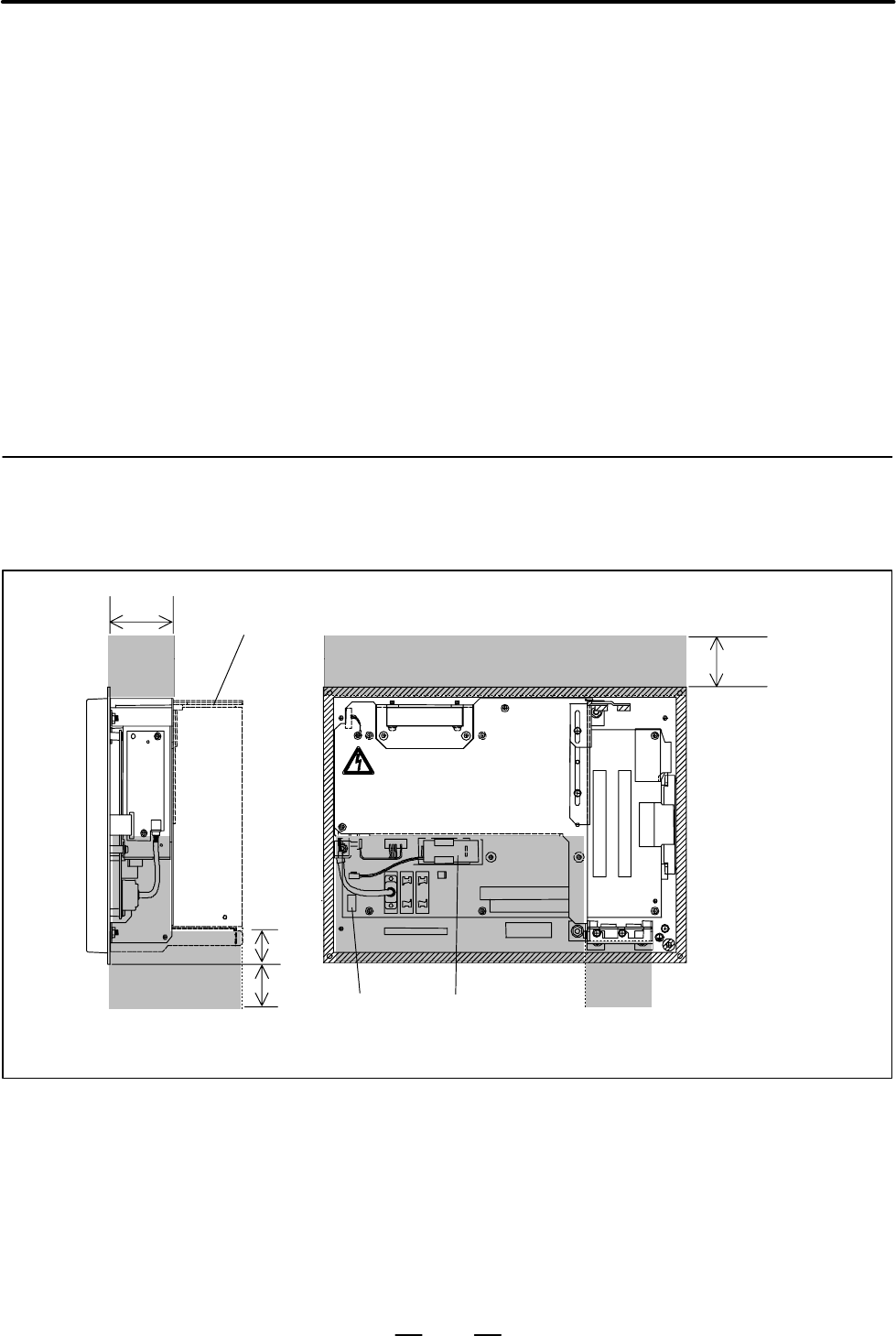

The following three spaces are required around the CNC display unit with

PC functions.

A: Space for connecting cables.

Also, If you wish to exchange a battery or a fuse without removing

CNC display unit with PC functions from the machine panel, this

space A is required and it is necessary to be able to access to the battery

or the fuse from the rear side of the CNC display unit with PC

functions.

B: If PCI extension board exists, this space B is required for cable

connection. The dimension X depends on cables connected to the PCI

Extension board.

C: This space is required for airflow.

CNC display unit with PC functions consumes the power described at

“14.5.2. Power Specification” item 3) . Therefore, please install

cooling system in the cabinet with keeping space C.

Battery

Unit: mm

In case that PCI Extension Board Fitting

Plate is ordered.

Refer to APPENDIX about outline dimensions of the basic unit.

Fuse

14.6

INSTALLATION

SPACE

14.6.1

Basic Unit 10.4″ LCD

Type
