B–63833EN/03

4. POWER SUPPLY CONNECTION

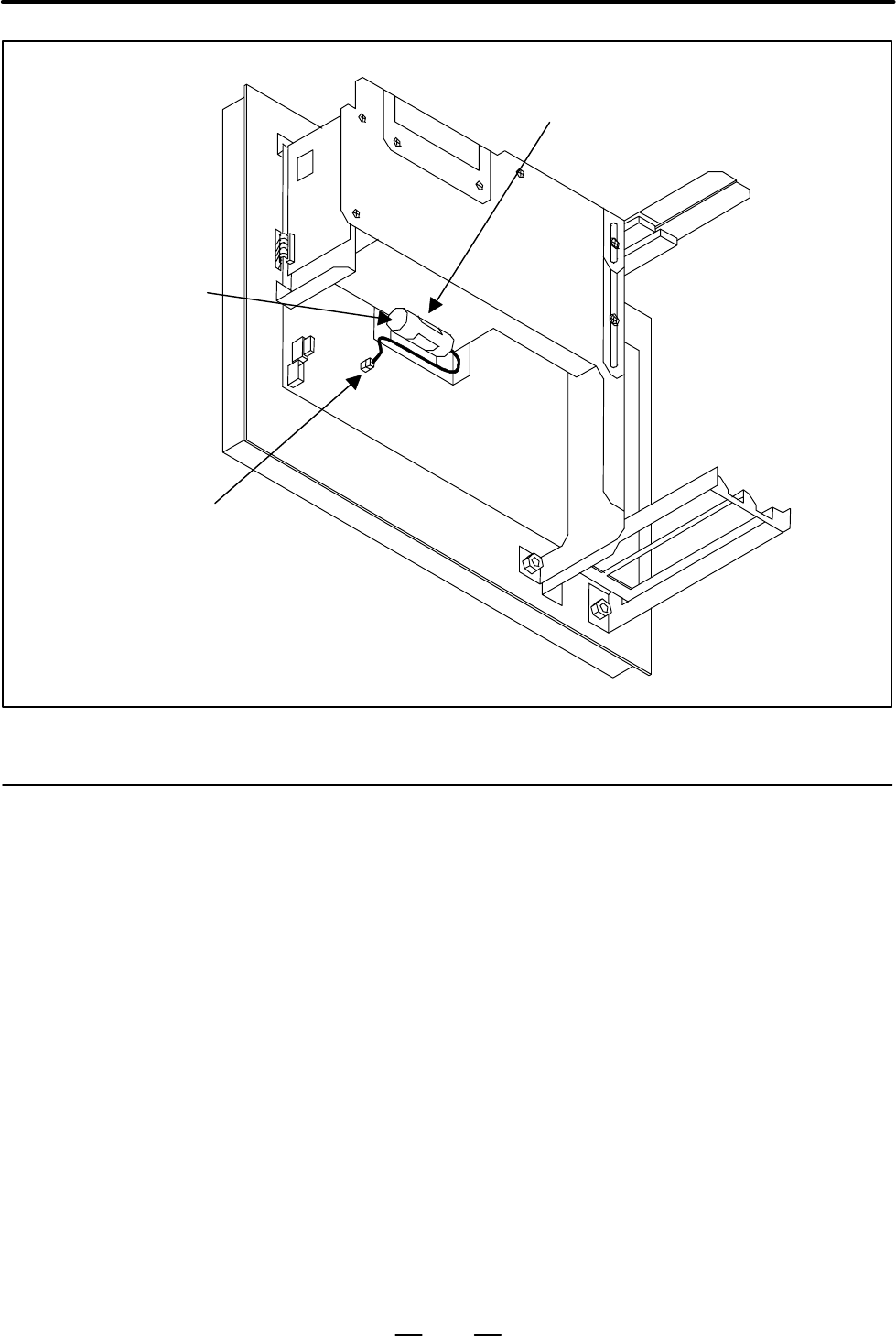

Lithium battery

A02B–0200–K102

Connector

(BAT1)

Battery holder

Fig.4.4.2 Battery replacement

One battery unit can maintain current position data for six absolute pulse

coders for a year.

When the voltage of the battery becomes low, APC alarms 3n6 to 3n8 (n:

axis number) are displayed on the LCD display. When APC alarm 3n7

is displayed, replace the battery as soon as possible. In general, the battery

should be replaced within one or two weeks, however, this depends on the

number of pulse coders used.

If the voltage of the battery becomes any lower, the current positions for

the pulse coders can no longer be maintained. Turning on the power to

the control unit in this state causes APC alarm 3n0 (reference position

return request alarm) to occur. Return the tool to the reference position

after replacing the battery.

Therefore, FANUC recommends that the battery be replaced once a year

regardless of whether APC alarms are generated.

See Section 7.1.3 for details of connecting the battery to separate absolute

pulse coders.

4.4.3

Battery for Separate

Absolute Pulse Coders

(6VDC)
