14. CNC DISPLAY UNIT WITH PC FUNCTIONS

300

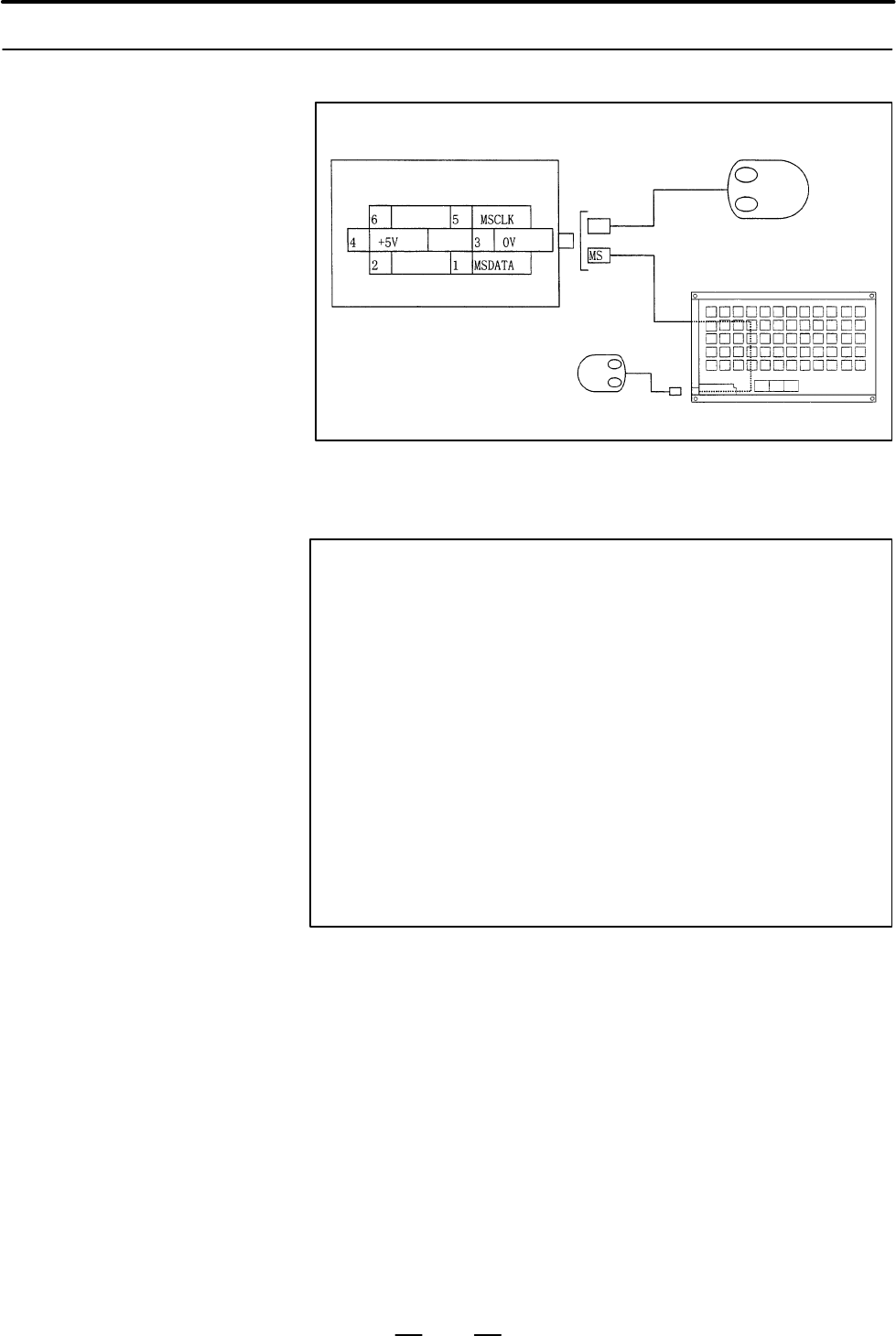

CNC display unit with PC functions

Mouse (commercial model)

Alternatively, FA full

keyboard

Mouse (commercial model)

CD32B

(mini DIN6)

1) Recommended mouse

A86L–0001–0212 Standard PS/2 mouse (commercial model):

for development and maintenance use only

NOTE

1 Commercial mice are prone to compatibility problems with

personal computers to some degree. It is not guaranteed

that the intelligent terminal type 2 can operate with every

commercial mouse. Machine tool builders are requested to

check the operability of the mice they select. Keep in mind

that general commercial mice are neither dust–proof nor

moisture–resistant.

2 If an FA typewriter–style keyboard is incorporated into the

system, clamp its cable at a point as close to it as possible

so that the weight of the cable is not applied directly to the

connector.

3 The Mouse and The Touch–Panel can not be used

simultaneously.

14.7.6

Mouse
