B. 20–PIN INTERFACE CONNECTORS AND CABLES
384
Item SpecificationsUnit
Sheath
Color – Black
Standard thickness (The mini-
mum thickness is at least 85%
of the standard thickness.)
mm 1.1
Outside diameter mm 8.5Max. 9.0(1)
Standard length m 100
Packing method – Bundle
Electrical
performance
Electric resistance (at 20°C)
(wire nos.)
Ω/km 39.4(1 to 6) 113(7 to 9)
Insulation resistance (at 20°C) MΩ–km 15
Dielectric strength (AC) V/min. 500
Flame resistance – Shall pass flame resistance test VW–1SC of UL standards,
NOTE
The maximum outside diameter applies to portions other
than the drain wire.

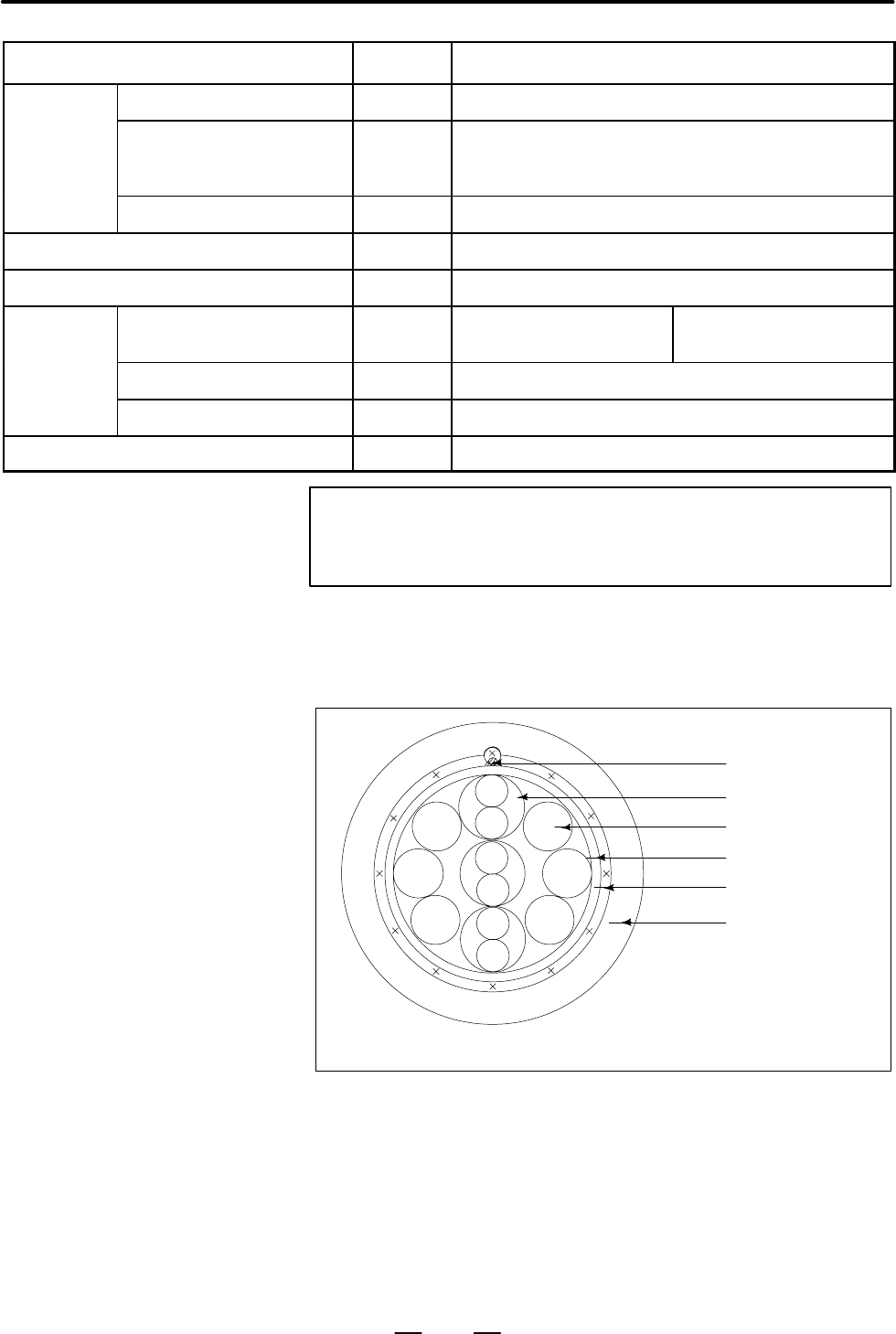

(b) Cable structure
The cable structure is shown below.
The colors in the figure indicate the colors of insulators.
Drain wire
0.18–mm2 twisted pair wire
0.5–mm2 insulated wire
Binding tape
Shield braid
Sheath
Red
White
Black
1
Black
2
black
3
black
4
Red
5
Red
6
Red
7
8
9
Red
Black
White
